Solar cells with a side length of 158.75mm have gradually become a thing of the past. 144 solar cells of 158.75mm can be composed of 400w, 405w, 410w, 415w, and 420w. When the monocrystalline silicon technology just became popular, the 158.75mm cell Solar panels made of slices swept the world and became the mainstream at that time. This type of cell is suitable for a variety of scenarios, including rooftop or ground installation, and is compatible with grid-connected and off-grid inverters. It can withstand heavy snow and high wind pressure while withstanding high temperatures and can continue to work in severe weather conditions. Our products have passed CE, TUV, ISO, and other certifications to ensure higher quality. It is very popular in African countries. With the ever-changing needs of people, 166mm cells turned out.
Parameter Of 405W-420W Mono Solar Panel With 144 Pieces Solar Cells
Electrical Characteristics Of 405W Mono Solar Panel With 144 Pieces Solar Cells
Module Type |
SLB144M7-405 |
Maximum Power (W) |
405 |
Tolerance Wattage (W) |
0~+5 |
Optimum Power Voltage (VMP) |
41.62 |
Optimum Operating Current (IMP) |
9.73 |
Open Circuit Voltage (VOC) |
49.58 |
Short Circuit Current (ISC) |
10.3 |
Module Efficiency (%) |
20 |
Electrical Characteristics Of 410W Mono Solar Panel With 144 Pieces Solar Cells
Module Type |
SLB144M7-410 |
Maximum Power (W) |
410 |
Tolerance Wattage (W) |
0~+5 |
Optimum Power Voltage (VMP) |
41.88 |
Optimum Operating Current (IMP) |
9.79 |
Open Circuit Voltage (VOC) |
49.85 |
Short Circuit Current (ISC) |
10.37 |
Module Efficiency (%) |
20.3 |
Electrical Characteristics Of 415W Mono Solar Panel With 144 Pieces Solar Cells
Module Type |
SLB144M7-415 |
Maximum Power (W) |
415 |
Tolerance Wattage (W) |
0~+5 |
Optimum Power Voltage (VMP) |
42.13 |
Optimum Operating Current (IMP) |
9.85 |
Open Circuit Voltage (VOC) |
50.12 |
Short Circuit Current (ISC) |
10.44 |
Module Efficiency (%) |
20.5 |
Electrical Characteristics Of 420W Mono Solar Panel With 144 Pieces Solar Cells
Module Type |
SLB144M7-420 |
Maximum Power (W) |
420 |
Tolerance Wattage (W) |
0~+5 |
Optimum Power Voltage (VMP) |
42.38 |
Optimum Operating Current (IMP) |
9.91 |
Open Circuit Voltage (VOC) |
50.39 |
Short Circuit Current (ISC) |
10.51 |
Module Efficiency (%) |
20.8 |
Solarborn is an experienced solar energy equipment manufacture in China, can offer solar panel 420w,panel solar 415w,410w solar panel ,405w solar panel.
And we can provide competitive 420w solar panel price,405 watt solar panel price and 410w solar panel price for you.
We have manufactured solar power system for decades of years, meanwhile, we sell solar panels, solar mounts and solar batteries.

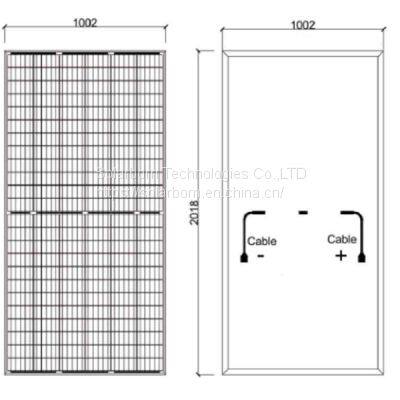

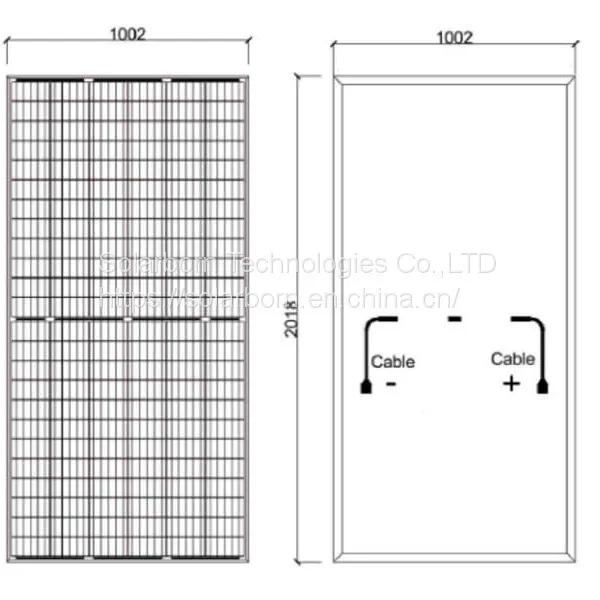

Structure Of 405W-420W Mono Solar Panel With 144 Pieces Solar Cells
