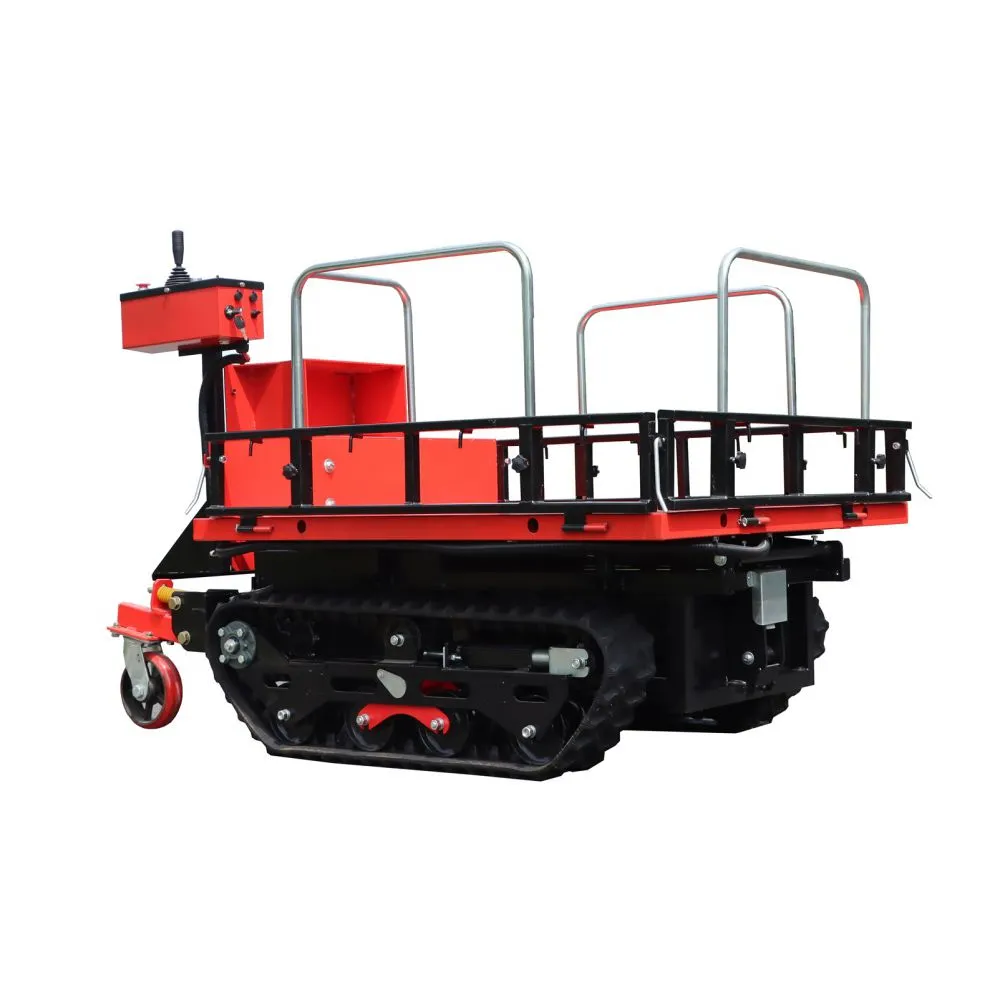

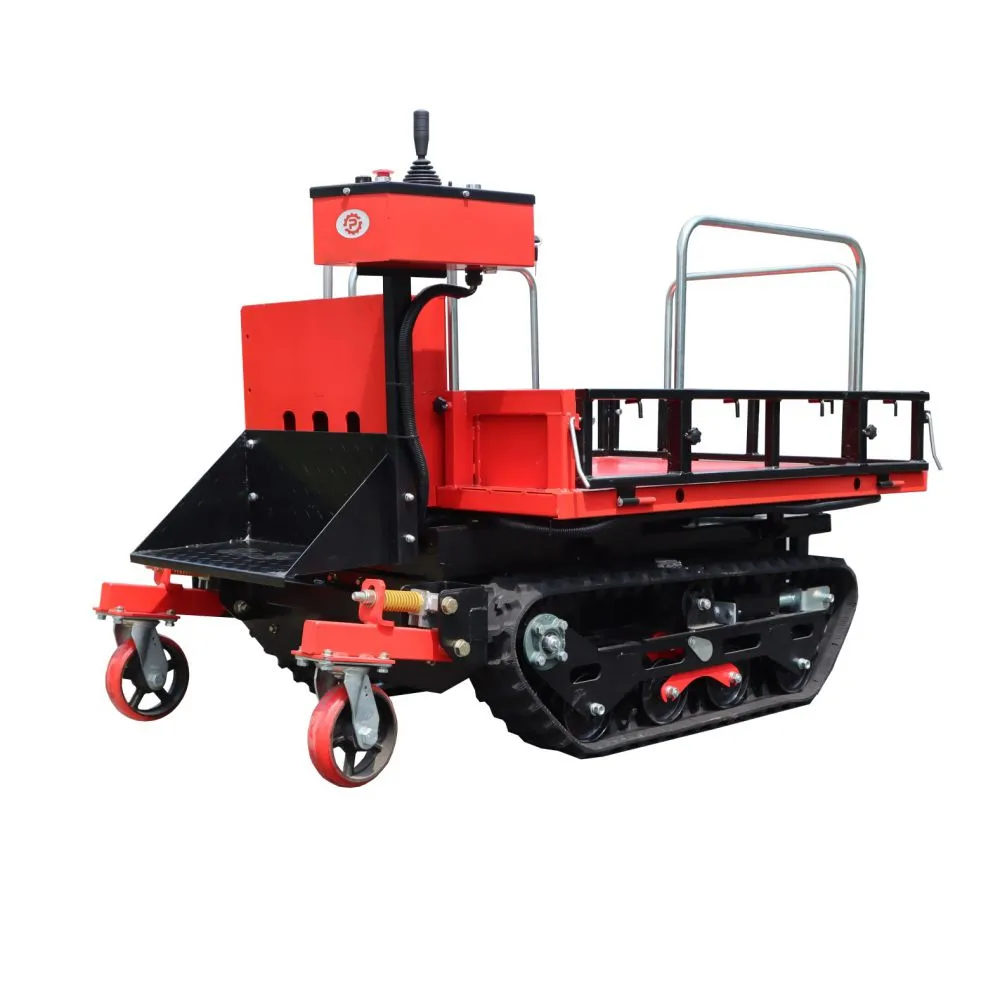

electric garden crawler type truck dumper

Product advantage:

Battery system: Long range energy saving battery.

Pedrail: 830 mm ground length, have good passing performance in different work environment.

Operation way: Manual control / pedal control / remote control, it’s very Simple, convenient and intelligent.

Steering mode: free lifting, tipping, 360 degree in-situ turning.

Multifunctional accessories: fruit picking, electric pruning, bagging, spraying system, transportation, etc.

Drive motor and hydraulic system: imported European high standard drive hydraulic electrical unit, guarantee of service life and quality.

Battery power: Zero emission, no noise, no vibration of the machine. It has a very good protective effect on peach and other fruits.

Model 3BD-350 electric truck dump

Overall size 2010*1160*1240 mm

Net weight 600 KG

Electric motor DC-24V/1500W*2EA (3000W)

Battery Lead acid battery DC-6V/200AH

(4 series connection)

Applicable voltage charger 12/24V

Max transporter weight 350 KG

Max lift weight 240 KG

Operation way Manual control / pedal control / remote control

Rubber pedrail size 180*60*45

Lift type Hydraulic lift

Max speed 2.6 km/h

Charge time 8-10 h

Work time Full load working time 3h

Work platform max height 1250 mm

Optional accessories Electric scissors, electronic scale, spraying system
