The annual output can reach 25,000 tons of stainless steel wire, 5,000 tons of stainless steel wire rope. The products are widely used in aviation, textile, machinery, automobile, hardware, medical, decoration, leisure and other military, industrial and civil fields.
Wire
Manufacturing Regime:
Material：SUS300, SUS400 Series, etc.
Standard：JIS, AISI/ASME, DIN, GB, etc.
Diameter：0.1-20mm (0.004”-0.787”)
Surface Status: bare wire, Ni coating, Zn coating and resin coating
Steel Wire Type:
1. Special corrosion resistant steel wire in oil and gas wells (SSW)
SWW is especially designed for complex corrosive conditions in oil and gas wells with excellent resistance to pitting, stress corrosion cracking, high temperature and good mechanical properties.
Tensile strength: 1500MPa-1800MPa

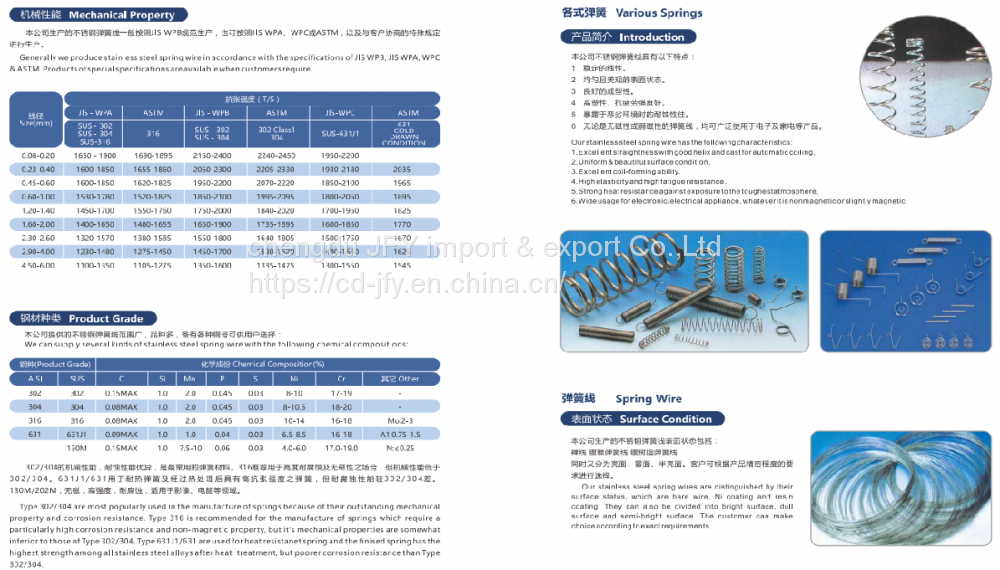

2. Stainless steel spring wire
Tensile Strength-MPa |
Tolerance-mm |
Ellipticity-mm |
Circle Diameter-mm |
1100-3500 |
±0.01 |
≤0.005 |
≥250 |
Characteristics: durable corrosion resistance, good stability, excellent coil-forming ability, high elasticity and high fatigue resistance.

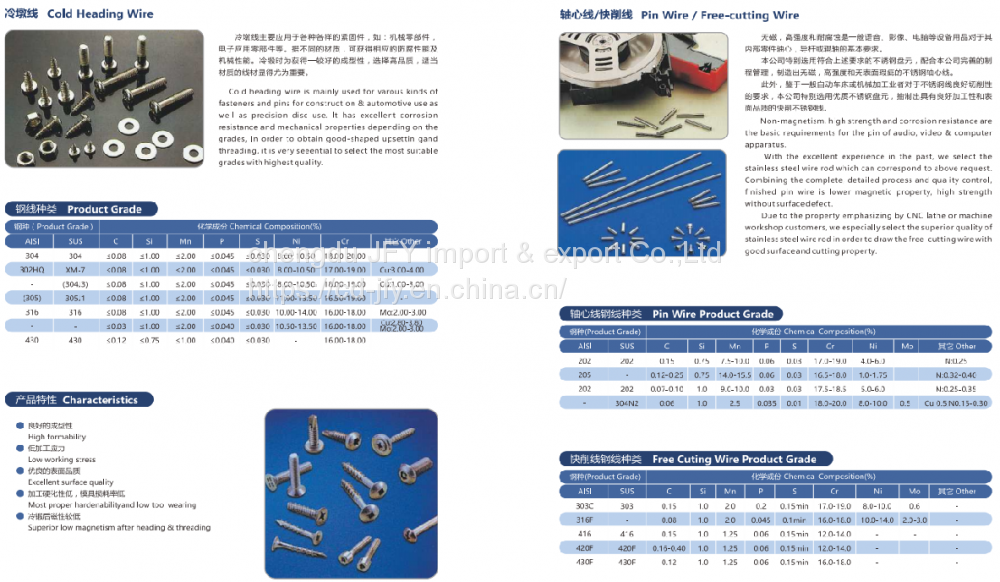

3. Cold heading wire
Mainly used for various kinds of fasteners and pins for construction and automotive use as well as precision disc uses.
4. Pin wire / Free-cutting wire/Pin line
Characteristics: corrosion resistance, lower magnetic property, high strength without surface defect.
5. Tie wire
Application: fruit and vegetable garden wattles, protection wattled walls, tying isolation around piping, fastening cable.
6. Weaving wire

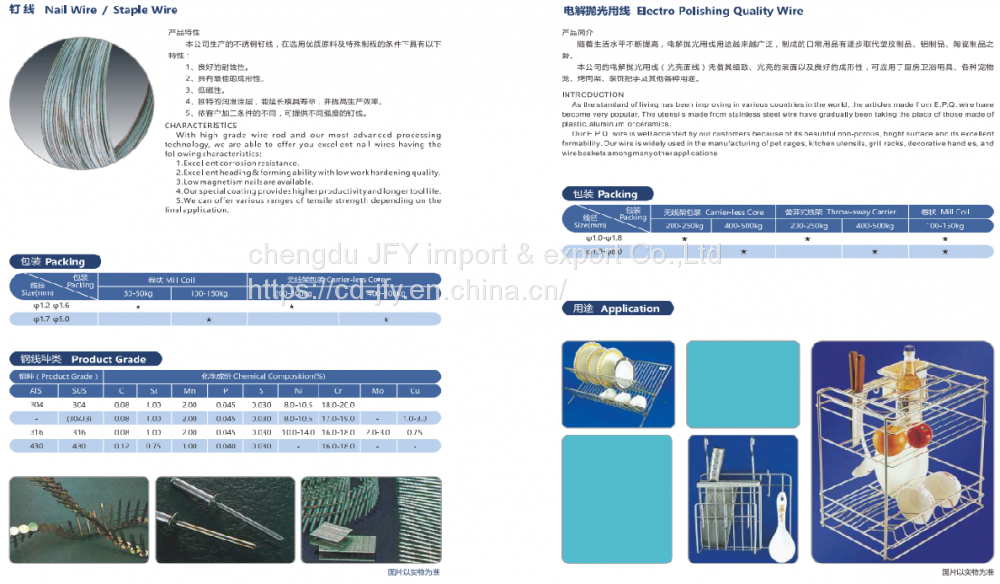

7. Nail wire / Staple wire
8. Electro polishing quality wire

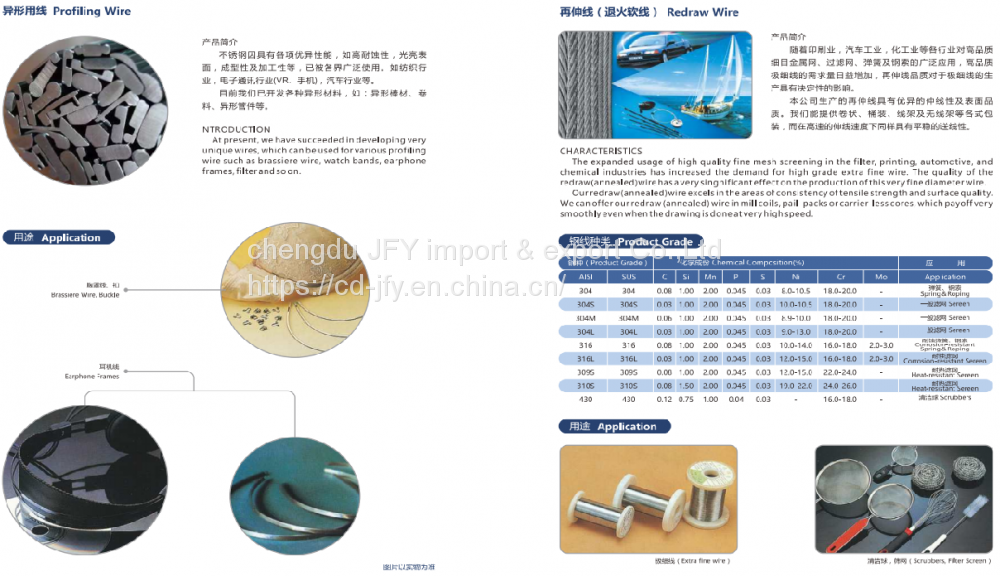

9. Profiling wire
10. Redraw wire
Packing:
Metallic Spools, Carrier-less Core, Throw-away Carrier, Mill Coil/Carretes de metal, sin núcleo portador, carretes desechables, bobinas de laminador
Wire Rope
Steel Wire Rope Type:
1. Steel wire rope for control
Structure |
Diameter (mm) |
Tolerance (mm) |
Min breaking force (KN) |
1x7, 1x19 |
0.15-6.00 |
0.03-0.60 |
0.025-30.4 |
2. Steel wire rope for aeronautical
Structure |
Diameter (mm) |
Tolerance (mm) |
Min breaking force (KN) |
3x7, 7x19, 7x7 |
0.79-9.53 |
0.15-0.66 |
0.49-53.34 |
3. Steel wire rope for fishing equipment
Structure |
Diameter (mm) |
Tolerance (mm) |
Min breaking force (KN) |
1x3, 3x7, 7x7 |
0.15-3.00 |
0.03-0.30 |
0.022-6.37 |
4. PVC (or Nylon) steel wire rope
Structure |
Diameter (mm) |
After PVC Diameter (mm) |
Tolerance (mm) |
PVC Thickness (mm) |
3x7, 7x19, 7x7 |
0.79-9.52 |
1.19-12.7 |
0.20-0.69 |
0.20-1.60 |
5. The electric railway meets touches the net the pulley compensation system to use the steel wire rope
Structure |
Diameter (mm) |
Tolerance (mm) |
Min breaking force (KN) |
8x19S, 8x19W, 8x25Fi, 8x26SW, 8x31ws |
8.0-28 |
0.56-1.40 |
42.6-453 |
Schmatic Diagram Of Steel Wire Rope:
PRODUCTS DISPLAY:
