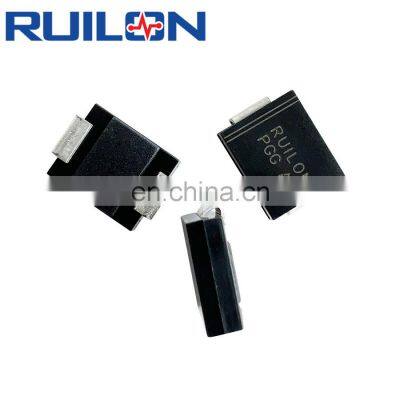

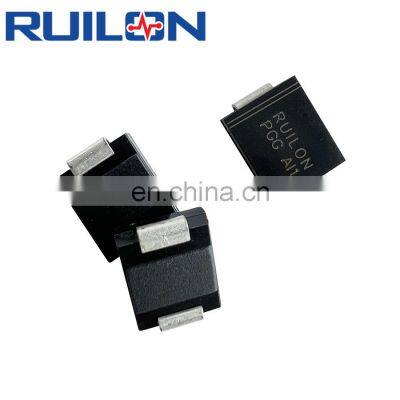

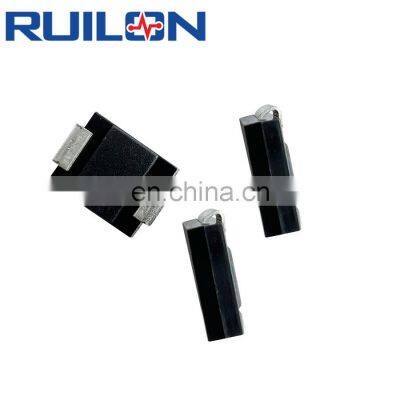

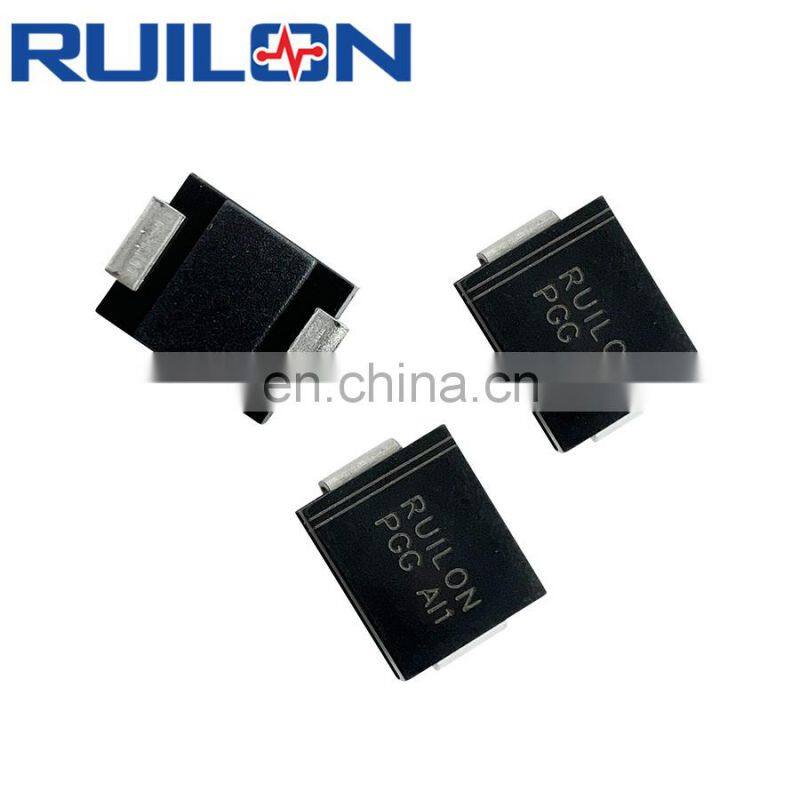

Ruilon Transient Suppression Diode TVS Diode SMDJ Transient Voltage Suppressors Diodes

The SMDJ series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.

Features:

l Low profile package
l Matte tin lead–free Plated
l Halogen free and RoHS compliant
l Low incremental surge resistance
l Typical IR less than 2μA above 10V
l Compatible with industrial standard package DO-214AB
l For surface mounted applications to optimize board space
l 3000W peak pulse power capability with at 10/1000μs waveform, repetition rate (duty cycle): 0.01%
l High temperature soldering:260°C/10 seconds at terminals
