Power Strip Surge Protector 220AC Socket Lightning Protection Power Strip for Home
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Distributor/Wholesaler
Year Established:
1994
Annual Export Value:
US$1.5 Million - US$2.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Quality Surge Arrester 3-electrode Gdt 75V 3KA Gas Discharge Tube ArresterNegotiableMOQ: 1 -
New Products Agents Wanted Heat Resistance Lightning Protector Socket With UsbNegotiableMOQ: 1
-
DC350V Gas Discharge Tube (gdt) Glass Gas Discharge Tube With MOVNegotiableMOQ: 1
-
Manufacturer of Circuit Protection Components Gas Discharge Tube Surge Protector/GDTNegotiableMOQ: 1
-
Gas Discharge Tube 250V 10KA 6*8mm GDT Surge Protector ArresterNegotiableMOQ: 1

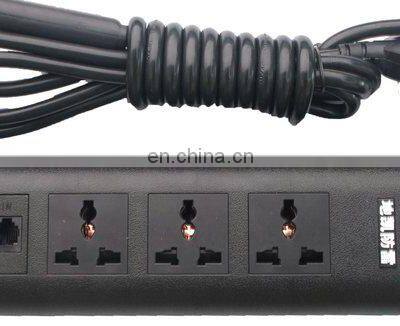

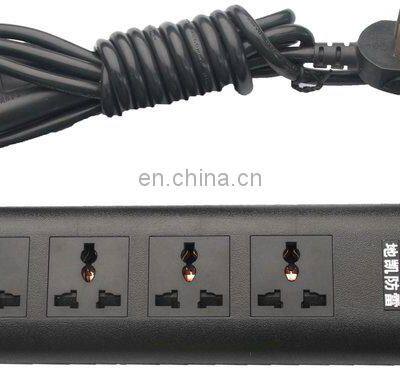

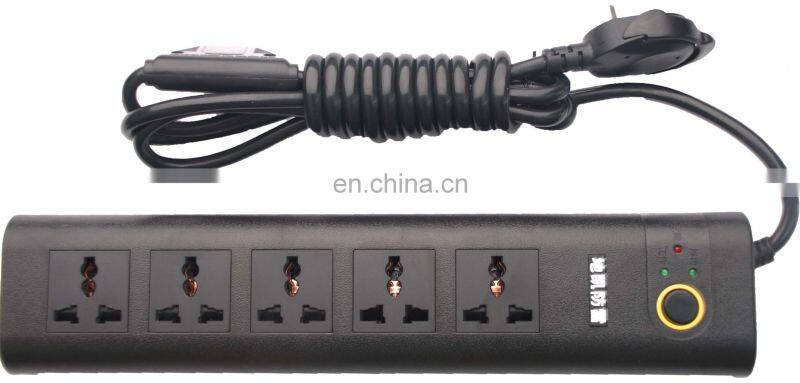

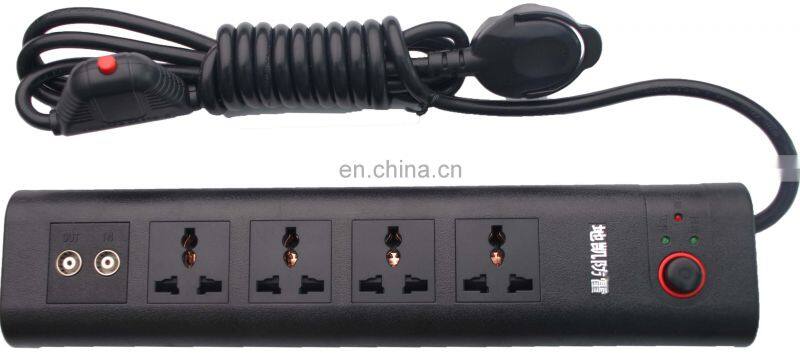

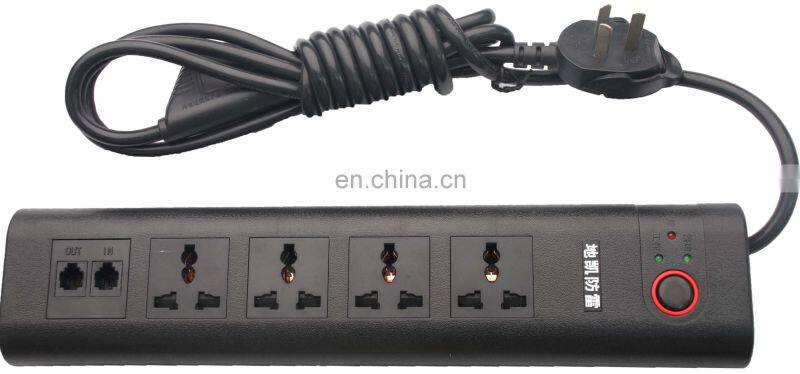

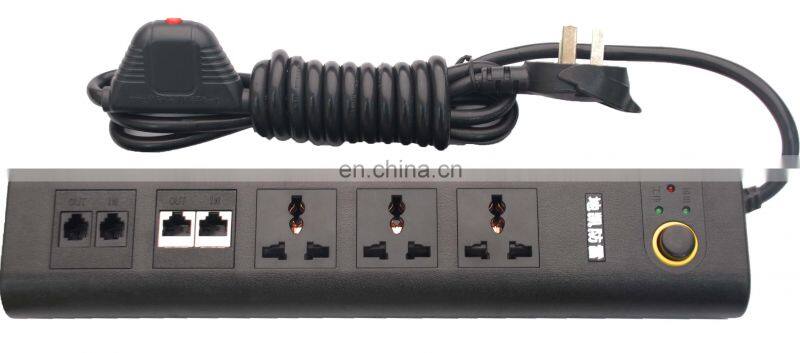

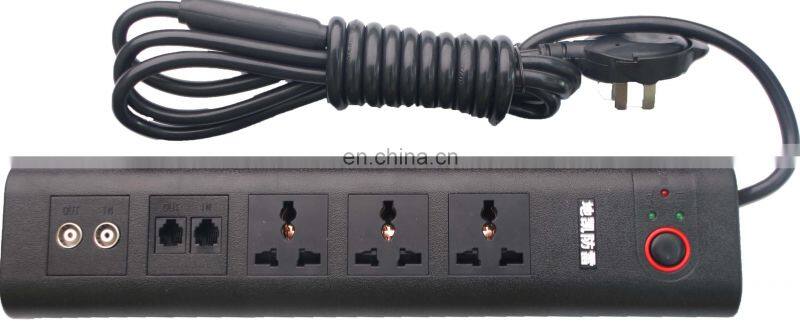

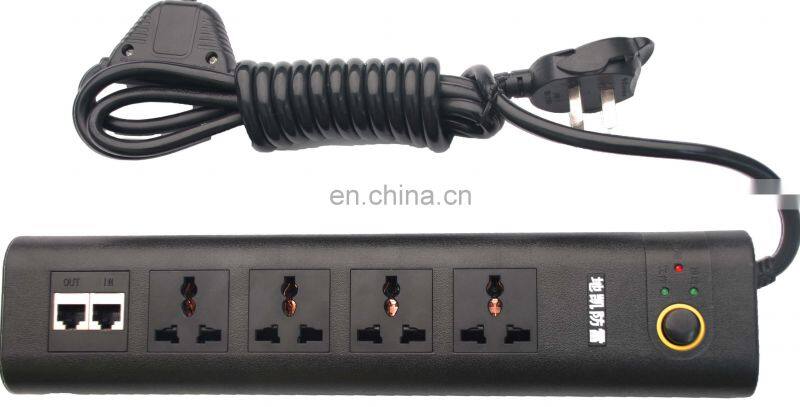

Power strip surge protector 220AC socket lightning protection power strip for home
Products Description
Lightning protection
This product is designed as multi-stage lightning protection. It can provide safe surge protection for users.
Fireproofing materials
The product shell adopts fire-proofing materials, it’s flame retardant property is UL94 V-0, with the advantages of resistance to pressure and heat resistance.
Security door
The security door can prevent children inserting in it, or the possibility of danger for the blind person. It is designed to reduce the accident from electricity.
Overload Protection Device
Reusable, no need to replace the fuse. It is convenient and safe.
Fault Indicator Function
When the number of current impact or the current magnitude exceed the specified current(Imax), the lightning protection component may be possibly down. At the moment, the Fault Indicator Lamp may lights up to reminder the users to change timely, avoiding property loss and personal injury.
Item No. are available
Product Paramenters
Item No. |
Rated voltage (V) |
Rated power (W) |
Maximum Continuous Operating Voltage Uc (V) |
Nominal Discharging Current (8/20μs)
(kA
|
Maximum Discharging Current (8/20μs)
(kA)
|
Voltage Protection Level (8/20μs)
(V)
|
Flame retardant properties |
DK-CL105 |
220AC |
2200 |
320AC |
10 |
20 |
≤1200 |
UL94 V-0 |
Installation Instructions
1.The usage method of Office lightning protection power strip is the same as the normal power strip.
2. This power strip has the working indication lamp, fault indicating lamp and grounding indicating lamp. When the working indication lamp lights, the power strip is normal, the fault indicating lamp lights, it means the power strip is broken dowm. The grounding indicating lamp shows wether the power strip is ground connection or not.
3. In order to make the Office equipment to be better protected, it can also connects grounding wire to the ground terminal of power strip.It is better to use at least 2.5mm2 copper wire for grounding.During using,it needs to check grounding system well to avoid the disconnecting of grounding and reducing the lightning protection function.
Maintenance
This power strip do not need special maintenance. When working indication lamp dies out, please check the voltage values of input and output terminal. If there is voltage in the input terminal, without voltage in the output terminal, and the office equipments can operate normally, it means the power strip is broken down,it needs to be changed.
