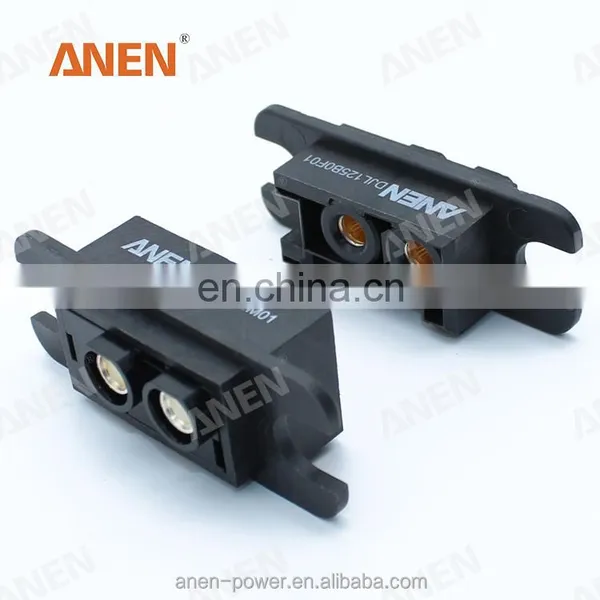

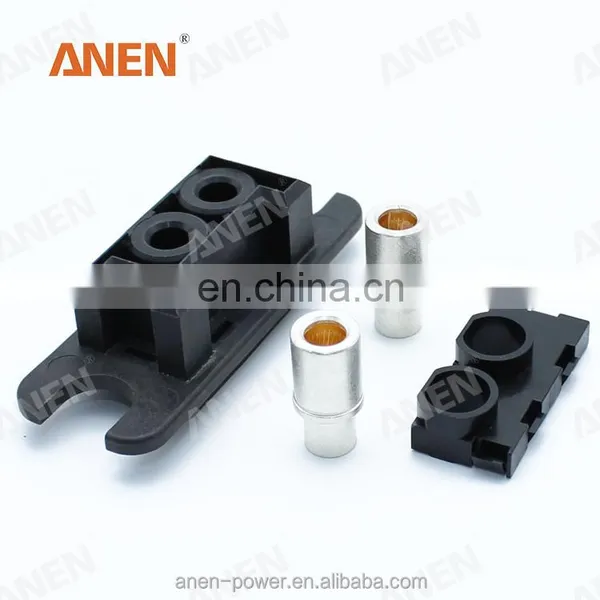

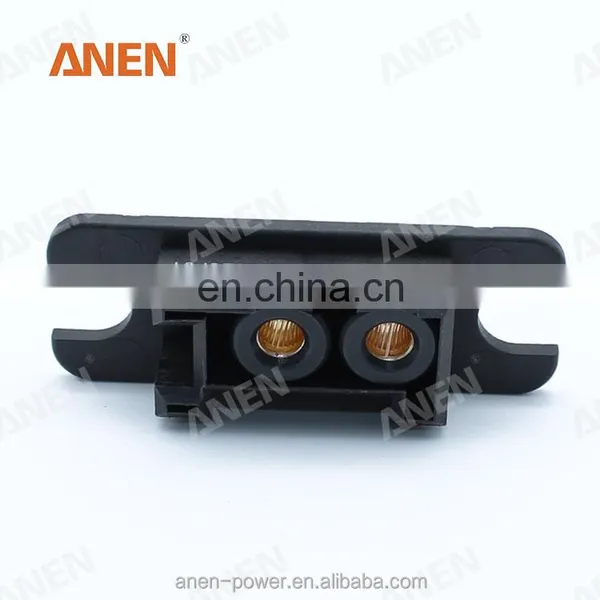

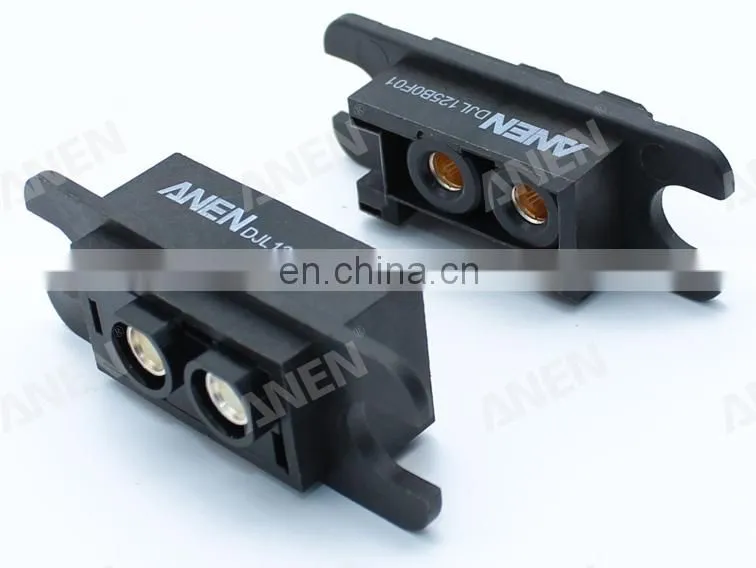

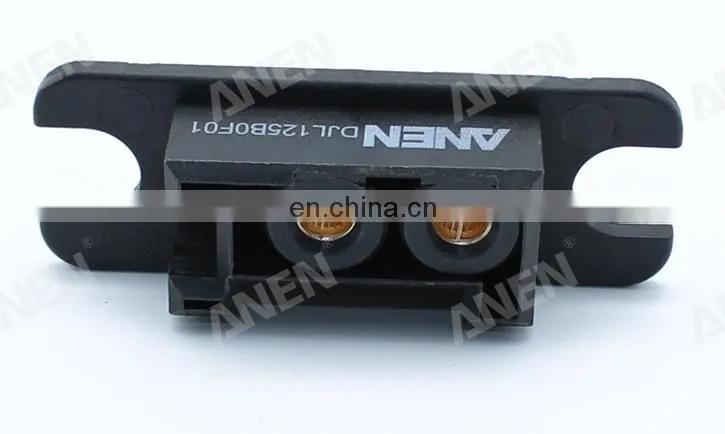

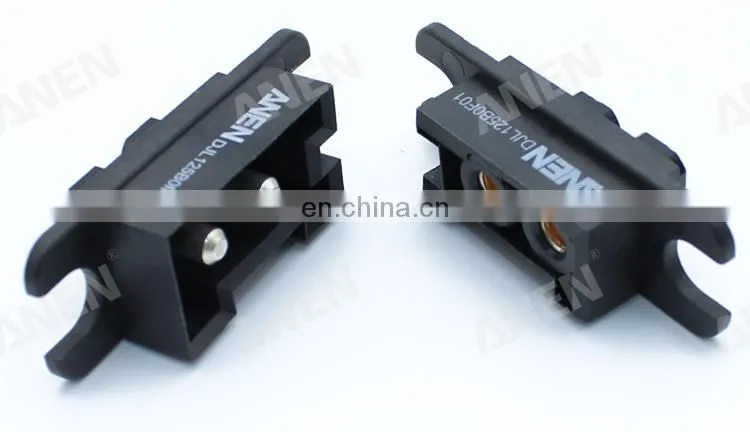

DJL 125 Module power Connector ,Anen anti-vibration soft plug drawer connectorDJL125

Module Power Connectors

DJL 125 Module power Connector ,Anen anti-vibration soft plug drawer connectorDJL 125 Module power Connector ,Anen anti-vibration soft plug drawer connectorDJL 125 Module power Connector ,Anen anti-vibration soft plug drawer connectorDJL 125 Module power Connector ,Anen anti-vibration soft plug drawer connectorDJL 125 Module power Connector ,Anen anti-vibration soft plug drawer connectorDJL 125 Module power Connector ,Anen anti-vibration soft plug drawer connectorDJL 125 Module power Connector ,Anen anti-vibration soft plug drawer connector

Summary

DJL25 industrial power module connector has the characteristics of reliable connection, soft dials, low contact resistance, high through-load current, excellent performance, etc., and has passed UL safety certification (E319259), this series of products adopts the advanced technology of rotary hyperbolic crown spring jack as the contact, so it has high dynamic contact reliability.



Technical Parameters

Rated current (Amperes)

125A

Rated voltage(Volts)

30-60V

Flammability

UL94 V-0

Relative humidity

90%~95%(40±2°C)

average Contact Resistance

≤150mΩ

insulation resistance

≥5000mΩ

Salt fog

>48H

Withstanding Voltage

≥2500V AC

Operating Temperature Range

-40°C to +125°C

Mechanical life

500 Times

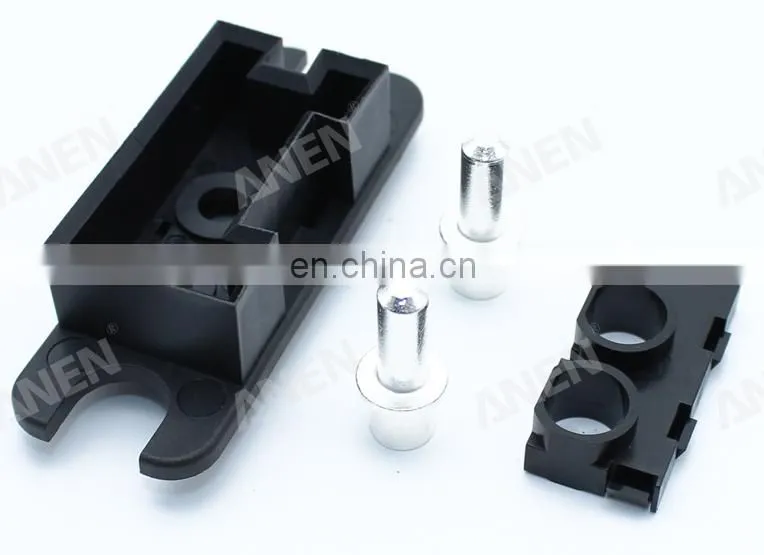

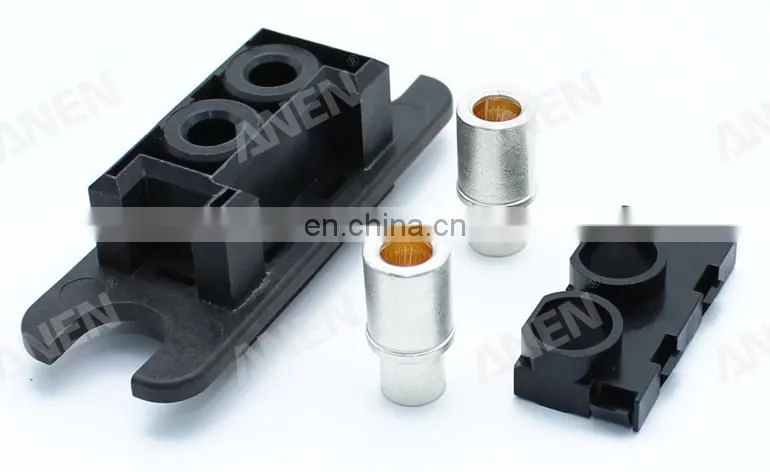

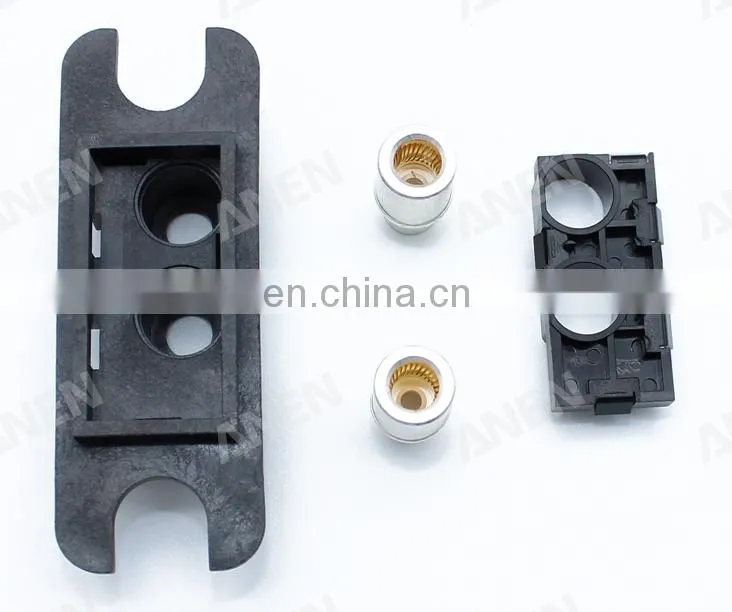

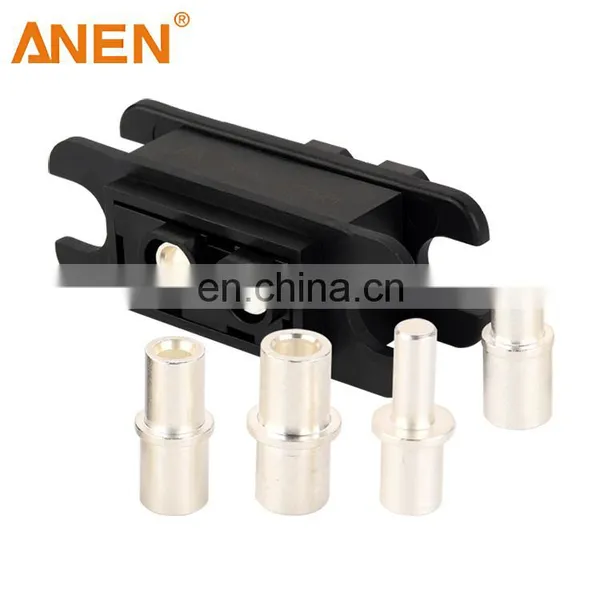

 Instructions for selection of contact parts

Part Number

Type

Wire range

Current

Surface finish

Dimension

CTAC024B

Plug Pin

6AWG

125

Silver plating



CTAC025B

Socket Pin

6AWG

125

Silver plating

•- ,



DJL 125 Module power Connector ,Anen anti-vibration soft plug drawer connector

------

DJL 125 Module power Connector ,Anen anti-vibration soft plug drawer connectorDJL 125 Module power Connector ,Anen anti-vibration soft plug drawer connectorDJL 125 Module power Connector ,Anen anti-vibration soft plug drawer connectorDJL 125 Module power Connector ,Anen anti-vibration soft plug drawer connectorDJL 125 Module power Connector ,Anen anti-vibration soft plug drawer connectorDJL 125 Module power Connector ,Anen anti-vibration soft plug drawer connector
