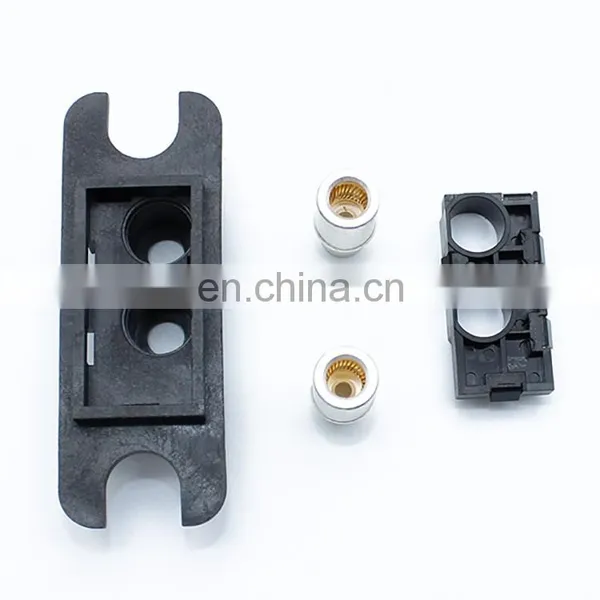

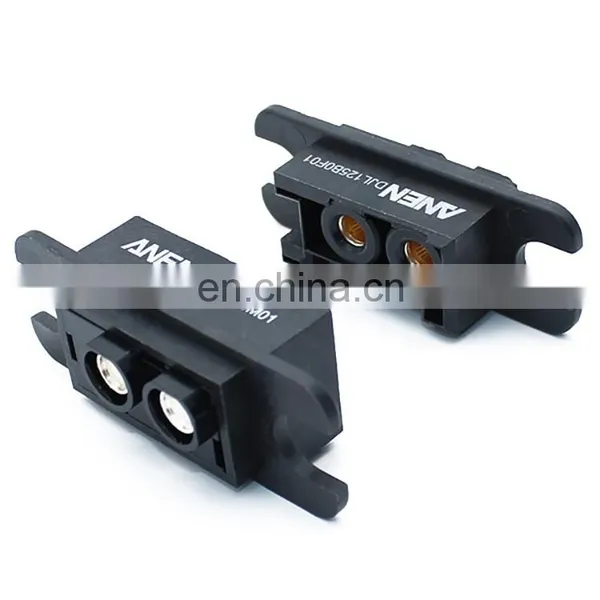

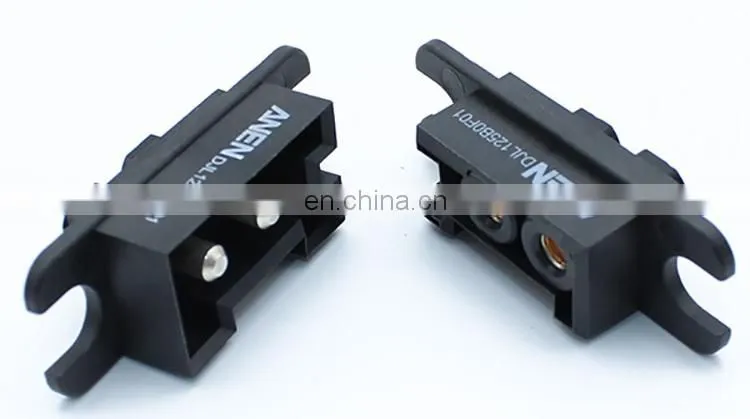

ANEN 125A Power Drawer Leaf Spring connector
- Arc contact surface design, low resistance, Good temperature rise performance
- Anti aging, high toughness, wear resistance, anti and strong impact
- High temperature resistance
- Genderless design
- Finger proof, self protection design
- Flat sweeping contact with self cleaning system
- Swallowtail model and combination design.
|
Rated current (Amperes) |
125A |
|
Rated voltage (Volts) |
600V(AC/DC) |
|
Contact Barrel Wire Size (AWG) |
6 AWG |
|
Contact material |
copper ,Plate with silver and gold |
|
Insulation material |
PC |
|
Flammability |
UL94V-0 |
|
Life a. Without load (Contact/Disconnect Cycles) b. With Load (Hot Plug 250 Cycles@ 120V) |
1000 60A |
|
Avg. Contact Resistance(micro-ohms) |
≤0.5 mΩ |
|
Insulation Resistance |
≥5000MΩ |
|
Avg. Connectiondisconnect(N) |
40-60N |
|
Insulation Voltage(VAC) |
2500 |
|
Environment Temperature (℃) |
-20℃…+125℃ |
This series of power drawer leaf spring connector meets strict UL,CUL,CCC certification,which can be used safety in logistics communication,Power-driven tools,UPS systems Electric vehicles .medical equipment AC/DC power etc. of widely industry and the most area around world.
- Over 15 Years Experience In Industrial connector and Hardware R&D
- National high-tech enterprises
- 40+ patents and self-developed intellectual property
- Well-known trademark; Top brand in high current connector market

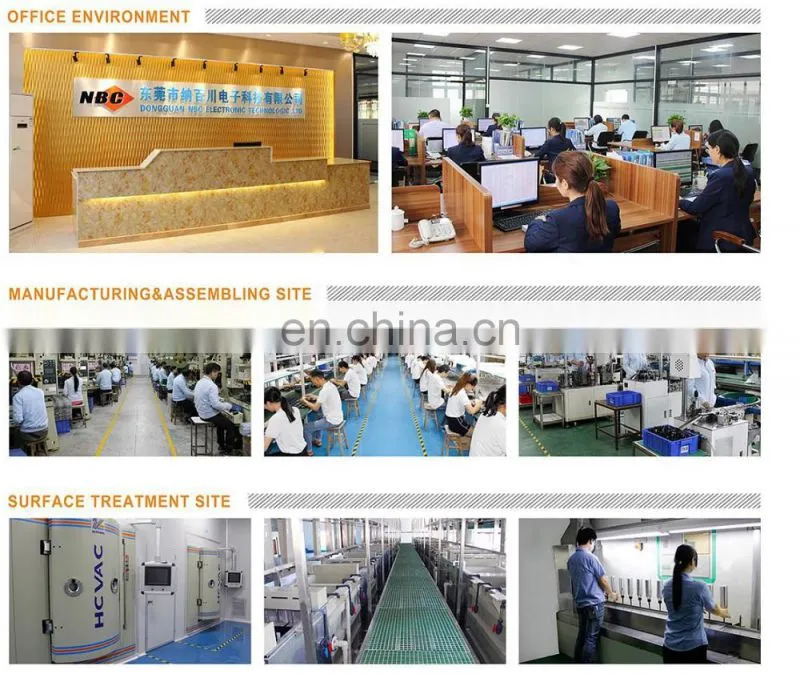

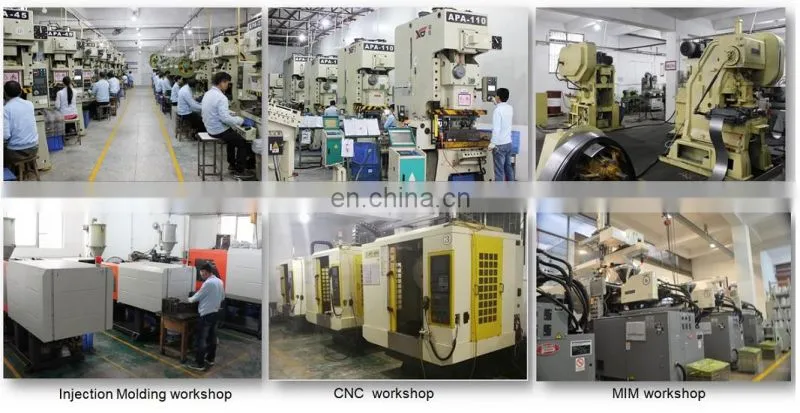

- 16000+Square Meters of our factory, passed ISO9001, ISO14001, IATF16949 certifications.
- We have established long term partner relationship with many world top-tier brands (BOSE & AKG/JBL &Eaton &Delta &Emerson…)
- We have a group of highly qualified personnel with doctorate degree, an experienced, skilled
