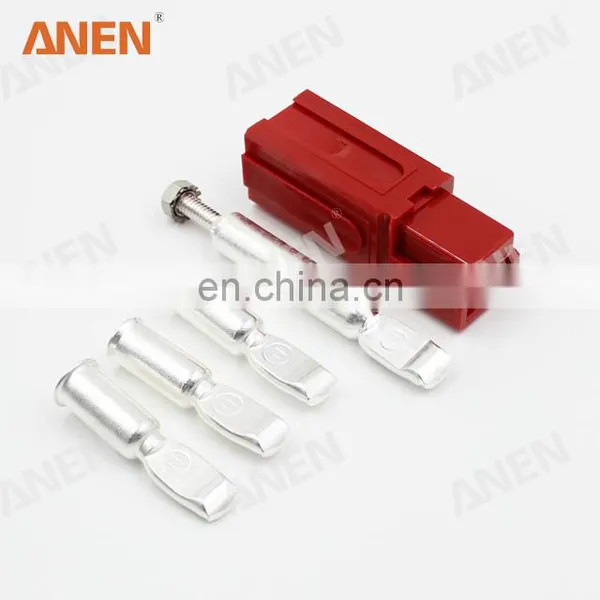

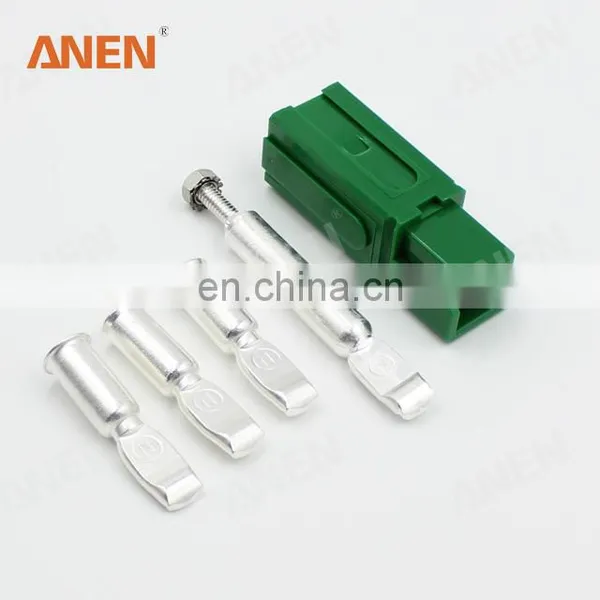

Anen Connectors 75A 600V With UL Approved
| ANEN PA Series
Anen PA Series Power Connector provides cost-effective reliability, design flexibility and safety for your products' manufacture, installation and maintenance.
The housings are modular and genderless. Anen PA connectors’ provide 600 Volts continuous, AC or DC operation. Wire sizes range from 6AWG~ 12AWG.
Contacts are available in reeled and loose piece designs to support all production needs from engineering prototype, low volume and high volumes products.
Anen PA Series finger proof is designed specifically for high voltage applications where personal safety is critical. the connector meets the accessibility requirements of UL and the Dielectric Withstanding Votage is 2200 volts AC.
| Connectors PA180 Descriptions
· Fingger Proof
· Flat Wiping Contact System
· Molded-in Dovetails
· Interchangeable Genderless Design
| Connectors PA45 Parameters
| Item | Value |
| Rated Current | ≤ 180A |
| Rated Voltage | 600V |
| Wire Size (AWG) | 1/0 - 4AWG |

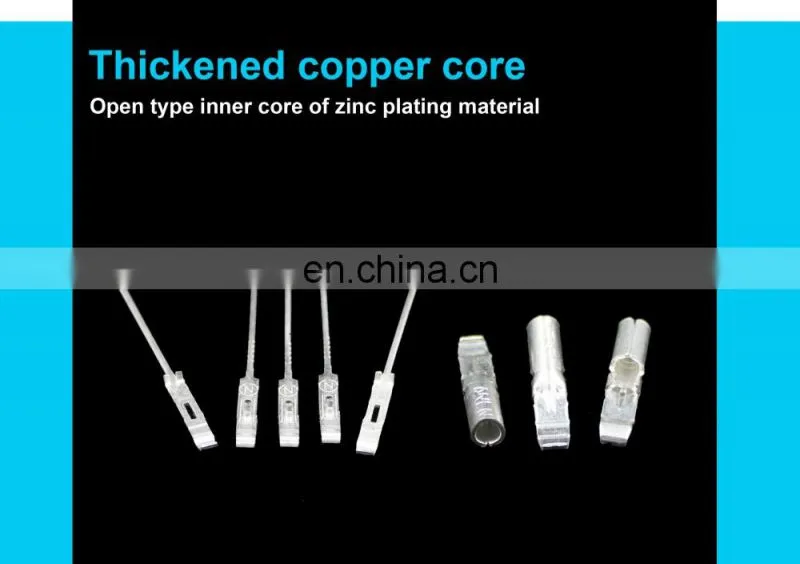

| Contact Materal | Copper, Plated With Silver Or Tin |
| Insulation Material | PC |
| Flammability | UL94 V-0 |
| Without Load, Contact/Disconnect Cycles | To 10,000 |
| With Load (Hot Plug 250 Cycles & 120V) | 75A |
| Average Contact Resistance (Mico - Ohms) | <95 |
| Insulation Resistance | 5000 |
| Average Connection/ Disconnect (N) | 70 |
| Connector Holding Force (lbf) | 500N Min |
| Environment Temperatures | -20···+75 Degree |
