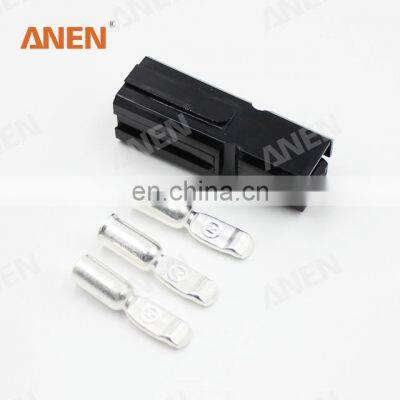

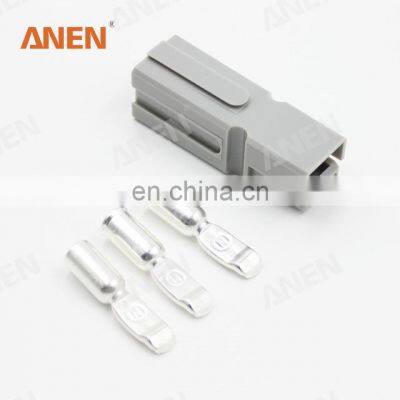

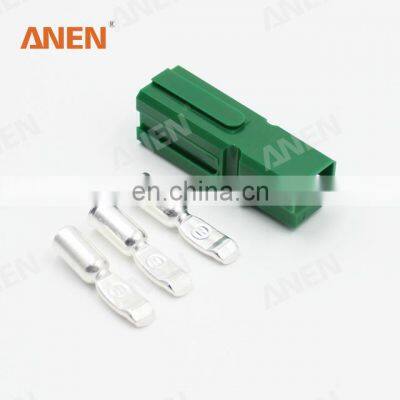

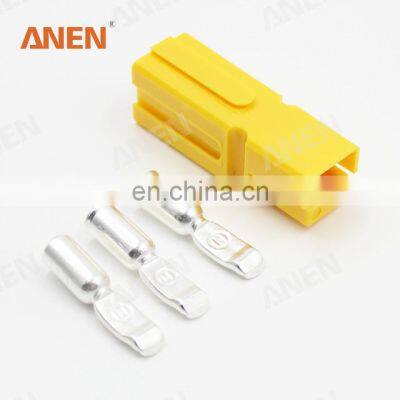

Single pole PA75 75Amperes 600V 6-12AWG UL RoHS Certificated Anen Power Connector
<1> Flat wiping contact system
Minimal contact resistance at high current, wiping action cleans contact surface during connection/ disconnection
<2>Structured color-coded
Prevents accidental mating of components operating at different voltage levels.
<3> Interchangeable genderless design
Makes assemble easy and reduces stock.
<4>Flexible application
Meet cable to cable connection and cable to board requirement.
<5> Finger proof
Helps prevent fingers (or probes) from accidentally touching live contacts.
<6> Molded-in dovetails
Secures individual connectors into “keyed” assemblies which prevents misconnection with similar configurations.
<7> Locking dovetail design
Provides positive mechanical spring latch, including lockable/un-lockable and other type.
<8> Horizontal/ Vertical mounting wings or surface
Except retaining pins, allows horizontal or vertical mounting.
<9> Molded side groves
Allows for a secure panel mounting fit.
<10> Auxiliary contacts
Provides additional poles up to 30 amps for auxiliary
|
Rated current (amperes): |
75A |
|
|
Rated voltage (volts): |
600V |
|
|
Contact barrel wire size (AWG) : |
6-12(AWG) |
|
|
Contact material: |
copper, plate with silver |
|
|
Insulation material: |
PC |
|
|
Flammability: |
UL94-V0 |
|
|
Life |
without load (contact/disconnect cycles): |
To 10,000 |
|
with load (hot plug 250 cycles & 120V): |
50A |
|
|
Average contact resistance (micro-ohms): |
<180 |
|
|
Insulation resistance: |
5000MΩ |
|
|
Average connectiondisconnection(N) |
30N |
|
|
Connector holding force(lbf) |
250 N Min |
|
|
Environment temperatures(℃) |
-20℃...+75℃ |
|
- Over 12 Years Experience In Industrial connector and Hardware R&D
- National high-tech enterprises
- 40+ patents and self-developed intellectual property
- Well-known trademark; Top brand in high current connector market
- 16000+Square Meters of our factory, passed ISO9001, ISO14001, IATF16949 certifications.
- We have established long term partner relationship with many world top-tier brands (BOSE & AKG/JBL &Eaton &Delta &Emerson…)
- We have a group of highly qualified personnel with doctorate degree, an experienced, skilled
