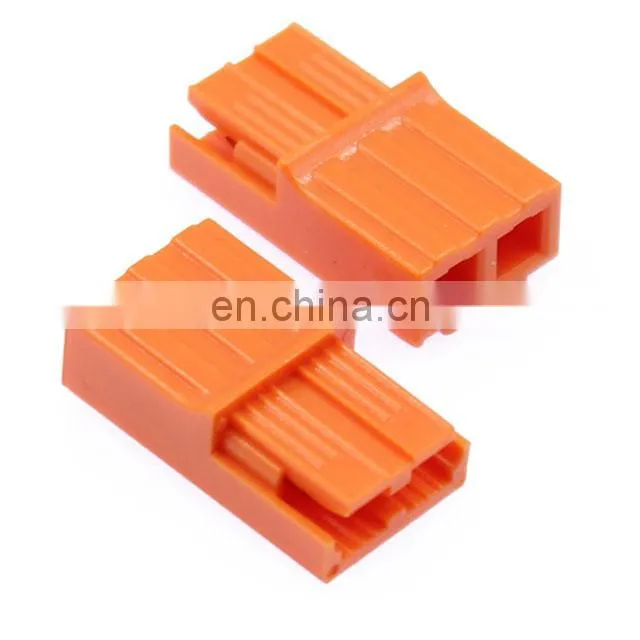

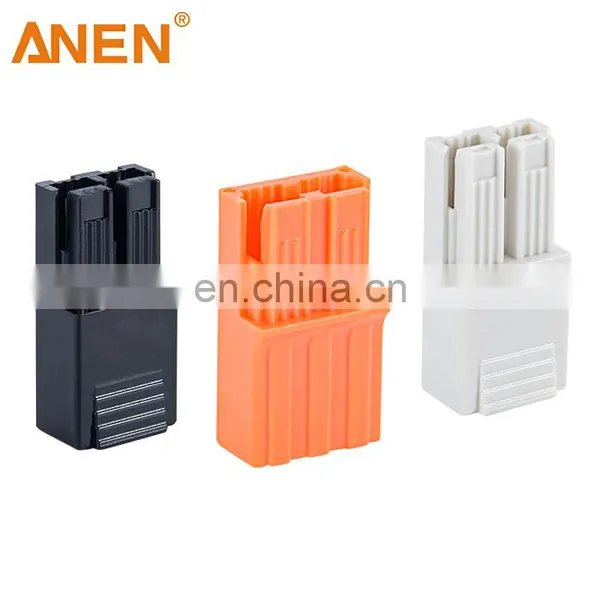

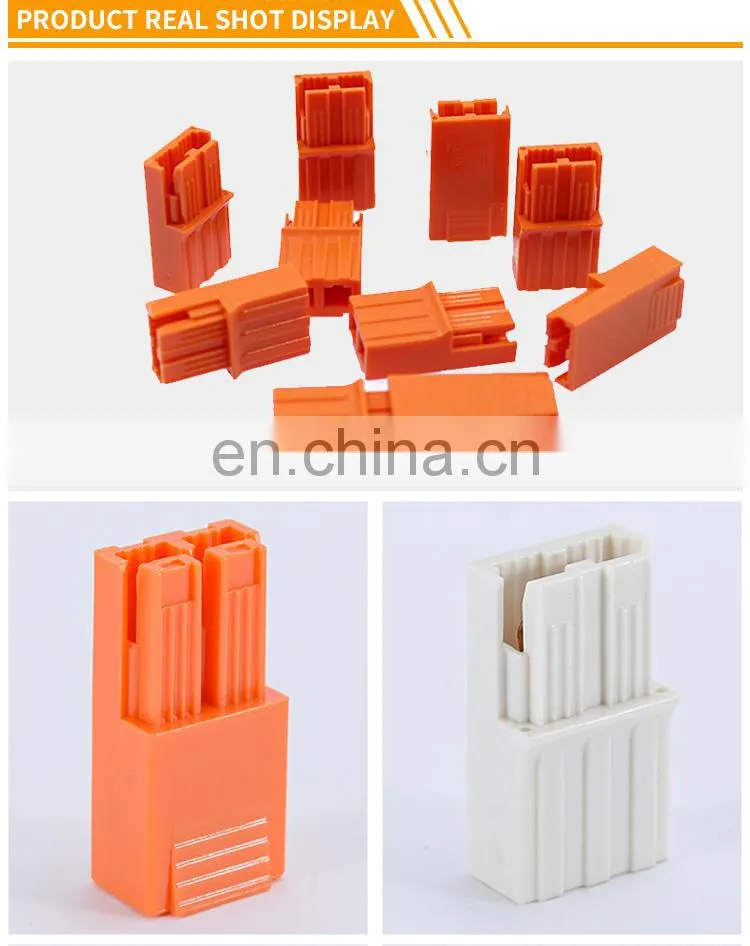

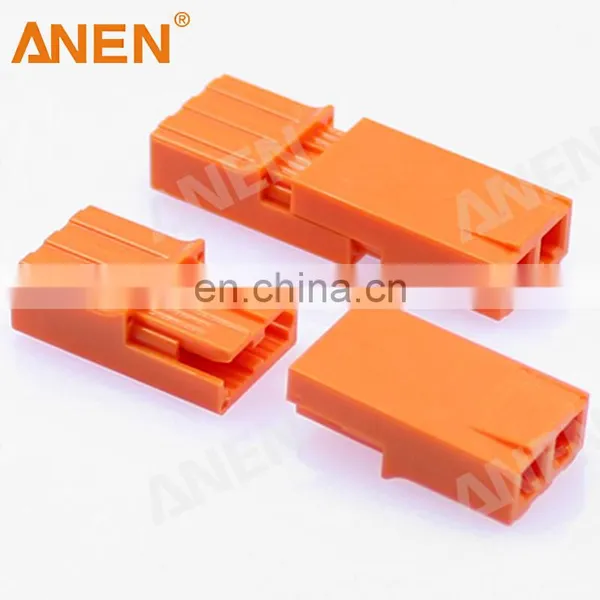

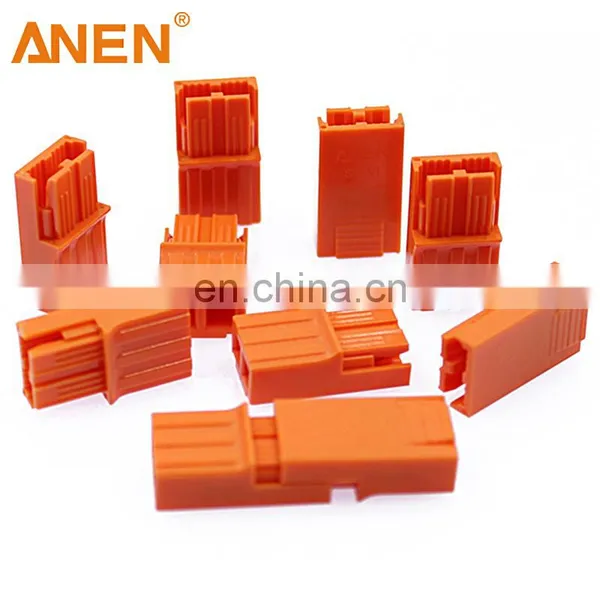

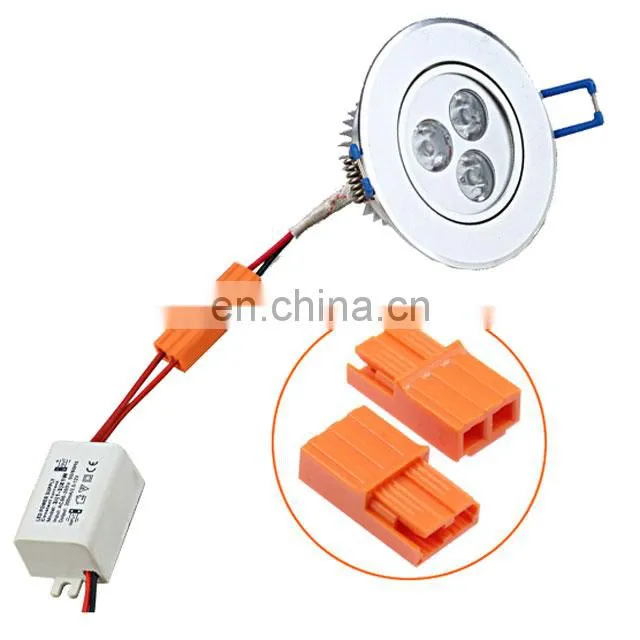

SA2-01 Connector Led Connector Genderless Simple 2pin Led Cable Connector
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
2001
Annual Export Value:
US$10 Million - US$50 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Best Offer for SA30 Multipole Power Connectors Rated Current/voltage 45A 600VNegotiableMOQ: 1 -
Anen SA120 High Multiple Power Connector 120A 600V For UPS Electorrnic ConnectorNegotiableMOQ: 1
-
ANEN ASA75X 2 Power Pins + 4 Signal Pins Power Adapter Connector With UL94V-0NegotiableMOQ: 1
-
Anen AC/DC Power Connector 175A 600V CE/RoHS CertificatedNegotiableMOQ: 1
-
ANEN Power Connector SAS75X 75A 600V Signal 4 Pin Current 2 PinNegotiableMOQ: 1
Features
1. UL safety certification&CSA.182.3 finger detection requirements
2. Swap no male and female designs
Simple assembly is required to reduce original inventory
3. Safe and easy to insert and can be inserted directly after peeling and soakingtin
4. Applicable wire diameter: 18-22 awg single core wire/multi-strand dip tin wire
5. Stripping length: 6MM total stripping
Applications

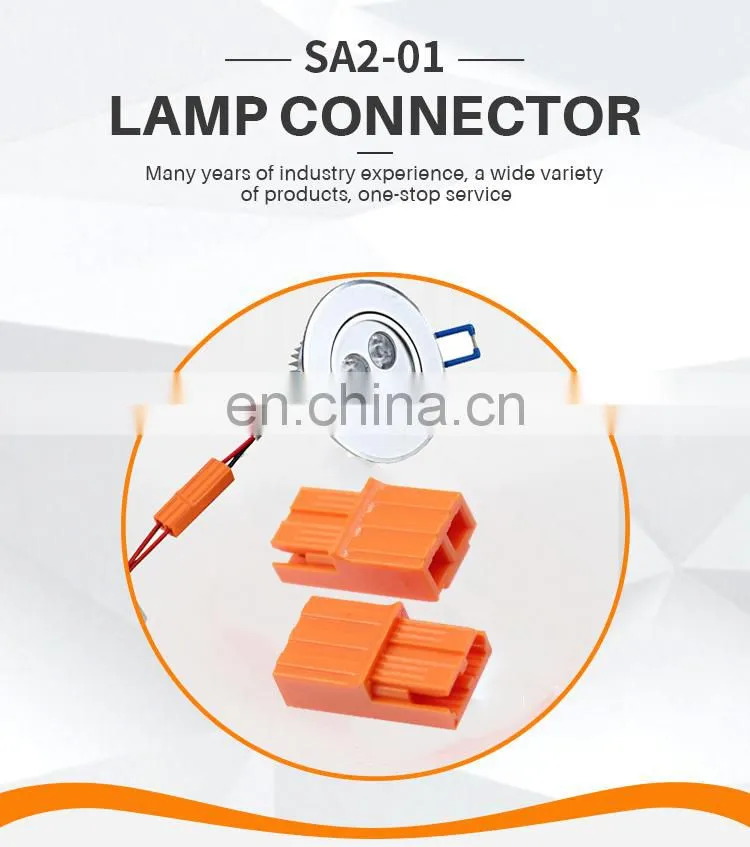

1. Mainly used for connecting fluorescent lamps and ballasts
2. Retrofit lighting connections
3. Suitable for us market for home retrofit solar connection
4. Suitable for connecting energy-saving lamps and ballasts

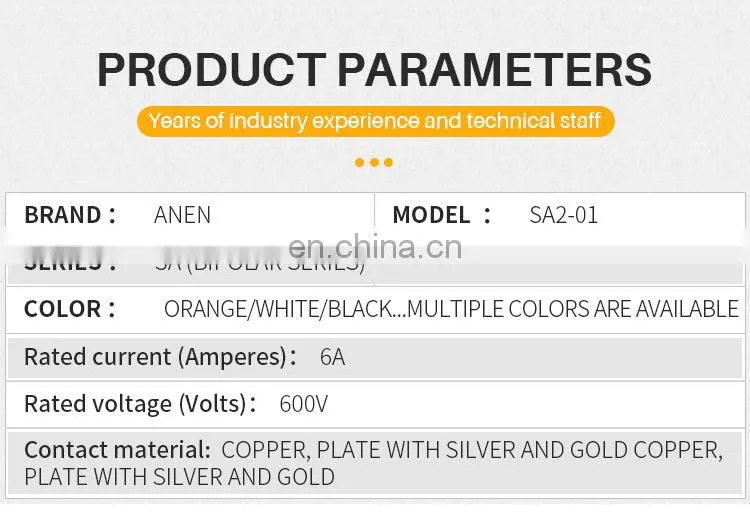

| Technical parameters | |||||
| Rated current(Amperes) | 6A | ||||
| Voltage Rating AC/DC | 600V | ||||
| Contact material | Copper,Plate with silver and gold | ||||
| Insulation material | PC | ||||
| Flammability | UL94V-0 | ||||
| Life a.Without load(Contact/Disconnect Cycles) b.With load(Hot Plug 250 Cycles&120V) |
500 YES |
||||
| Average Contact Resistance(micro-ohms) | ≤5μΩ | ||||
| Insulation Resistance | ≥500MΩ | ||||
| Average Connection(N) | 10-25N | ||||
| Temperature Range | -20℃-105℃ | ||||
| Dielectric Withstanding Voltage | 2200 Volts AC | ||||
