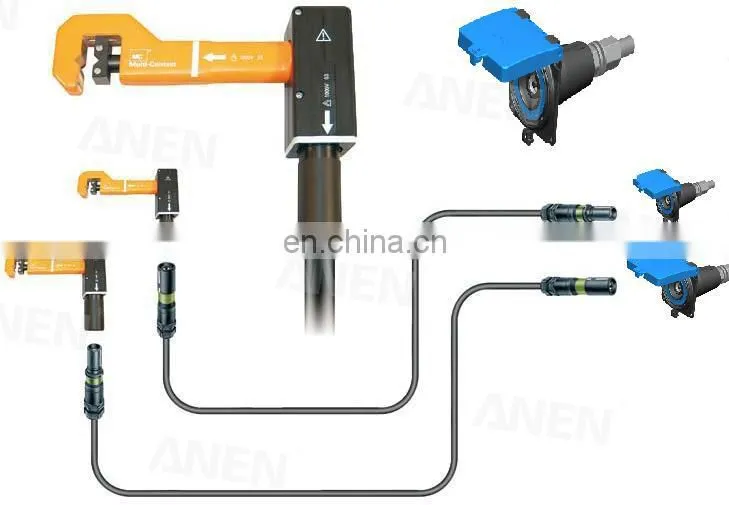

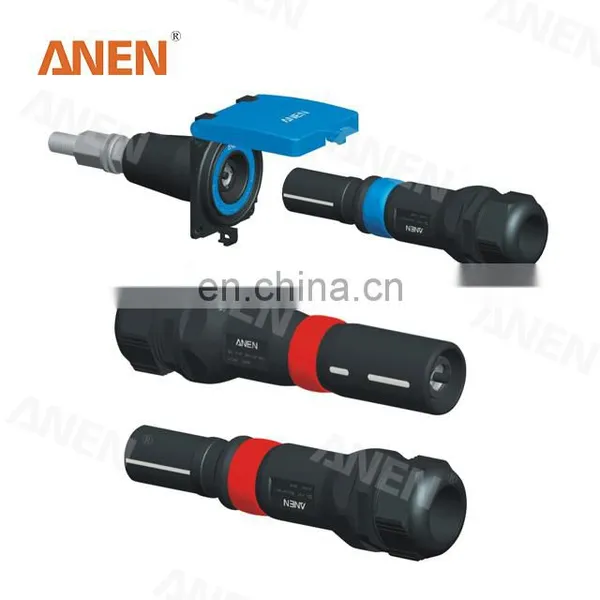

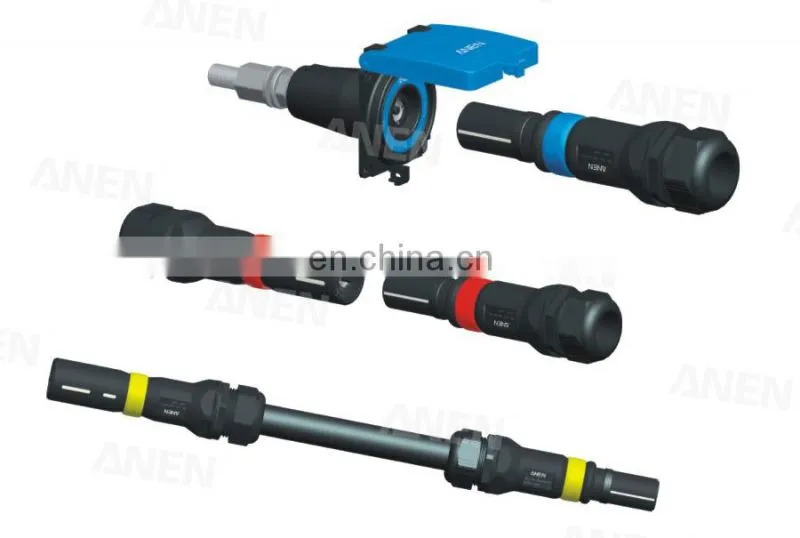

Industrial connector made in China for UPS 600A

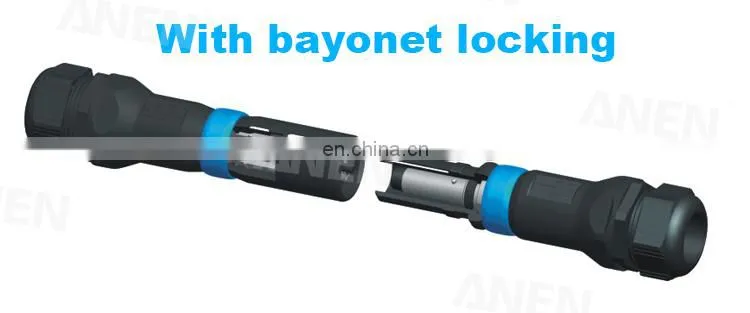

1.With bayonet locking.
2.Adopt special shrapnel.
3.Touch protected in unplugged condition.

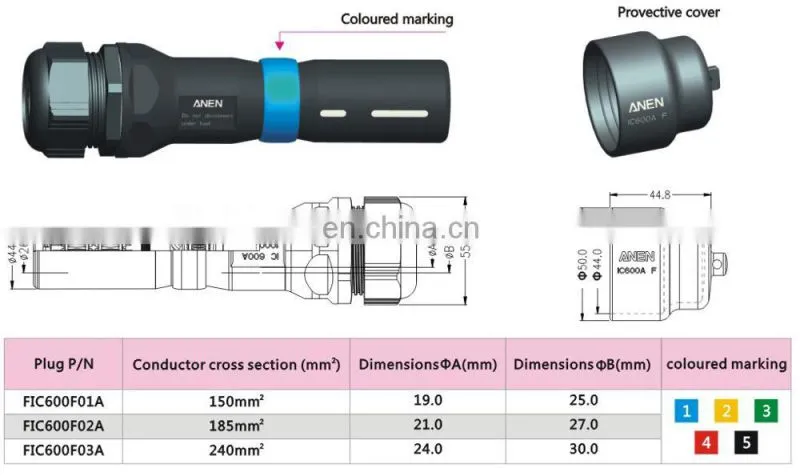

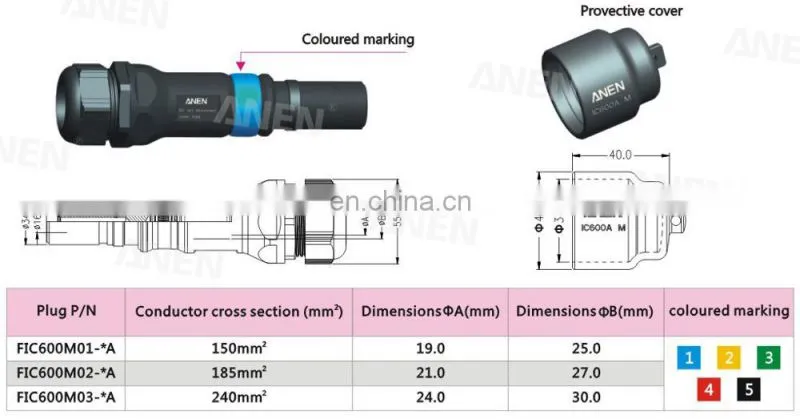

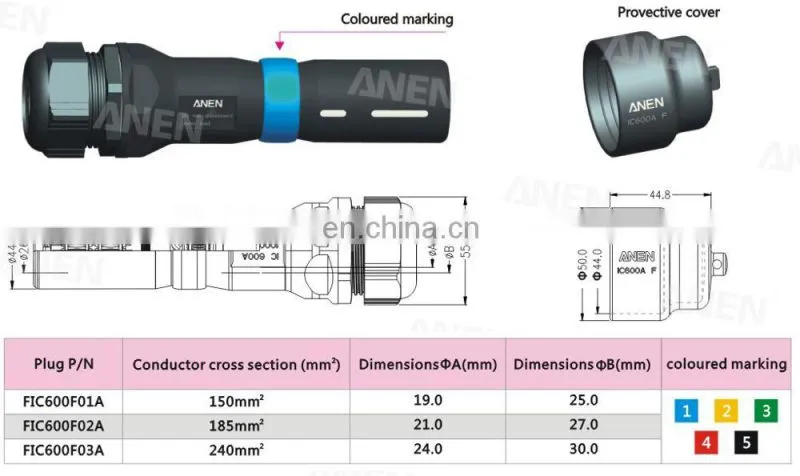

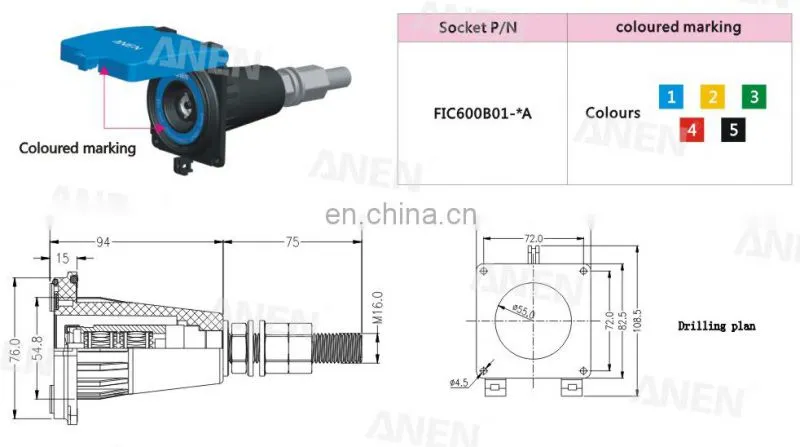

4.Clearly visible colour marking on the insulation.
5.IP65 in mated condition.
6.Can be equipped with a mi-croswitch as locking status in-dication(according to IEC 61948).
|
Rated current(Amperes) |
600A |
|
Rated voltage(Volts) |
1000V |
|
Contact Barrel Wire Size(AWG) |
150~240mm² |
|
Contact material |
Copper Plate with silver |
|
Insulation material |
PA |
|
Flammability |
UL94 V-0 |
|
Life Without load(Contact/Disconnect Cycles) Without load(Hot plug 250 cycles&120V) |
To 5,000 NO |
|
Average Contact Resistance(micro-ohms) |
12 |
|
Insulation Resistance |
5000MΩ |
|
Average.Connectordisconnect(N) |
200N |
|
Environment Temperature(℃) |
-20℃…+75℃ |
|
Insulation Withstanding Test Voltage(Volts AC/DC) |
3000V AC |
