Elliptical Waveguide and Transition
US$ 50 - 300
MOQ: 5 Pieces
Key Specifications
Get Latest Price
Brand Name:
Dolph Microwave
Place of Origin:
China
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Brand Name
Dolph Microwave
Place of Origin
China

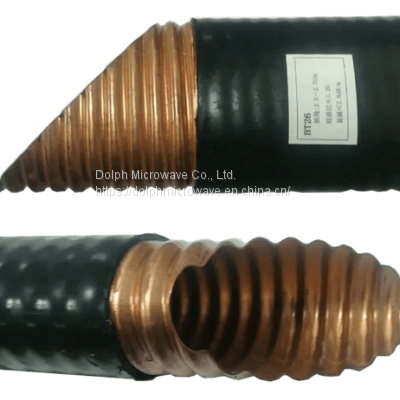

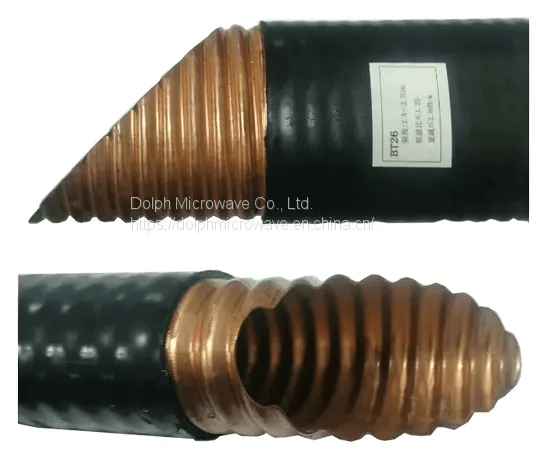

Elliptical Waveguide and Transition is a type of transfer components. The frequency of the elliptic waveguide ranges from 3 to 20 GHz. It is made with elliptical corrugated copper tube and UV resistant, black polyethylene jacket.
Features:
Construction: Corrugated Elliptical Copper Tube
Freq.Range: 3-40 GHz
RF Impedance: 50 Ω
Jacket Material: UV resistant and Black Polyethylene
Optional: JFN (fire retardant)
Operation: -50°C to +85°C
Storage: -70°C to +85°C
Installation J-jacket: -40°C to +60°C
Installation JFN-jacket: -25°C to +85°C
Max.Pressure Operation: 0.3 bar
Max.Pressure Test: 0.5 bar
For more info or datasheet, please call to +86(29)8881 0979 or write to sales@dolphmicrowave.com
