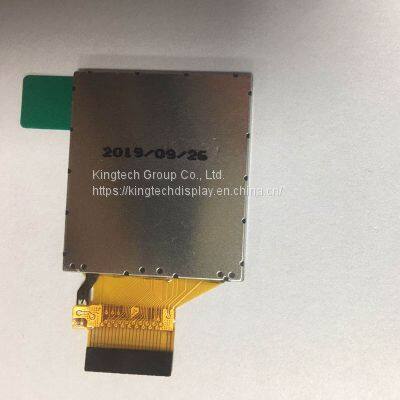

Kingtech 1.3inch 240x240 LCD TFT module is a small size display. It’s IPS/full/wide/all type and this display supports MCU and SPI interfaces.
The TFT display does not have existing resistive touch and capacitive touch, but we can custom LCD module according to customer requirements. This 1.3inch display can be used for smartwatch.
Features of All View Angle 1.3 Inch 240x240 Square TFT LCD Screen
240x240 resolution
square tft display
Can custom capacitive and TFT resistive touchscreen
MCU and SPI interfaces
Free/full/wide viewing angle
IPS TFT display
Application is for a smartwatch
Specification of All View Angle 1.3 Inch 240x240 Square TFT LCD Screen
Item | 1.3inch IPS square TFT display |
Model No | PV013004AR24E |
Resolution | 240x240 |
Outline Dimension | 26.16(W)x29.22(H)x1.6(T) |
Active Area(mm) | 23.40(W)x23.40(H) |
Interface | 8bit parallel & SPI |
Viewing Angle | All |
Driving IC | ST7789 |
Display Mode | Transmission/Normally Black |
Operating Temperature | -20℃~70℃ |
Storage Temperature | -30℃~80℃ |
Brightness | 350nits |
Touch panel | Can custom resistive and capacitive touch panel |
Application of All View Angle 1.3 Inch 240x240 Square TFT LCD Screen
The 1.3inch 240x240 round TFT IPS LCD display can be used for medical devices, handheld equipment, industrial control, smart home, and smartwatch. Meanwhile , the lcd screen price is reasonable.
As a professional lcd screen module factory, Kingtech LCD aims to provide a one-stop service and solve your problems.
