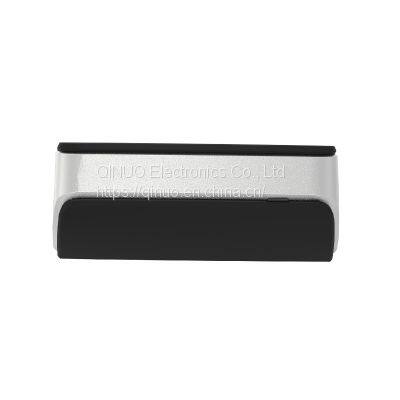

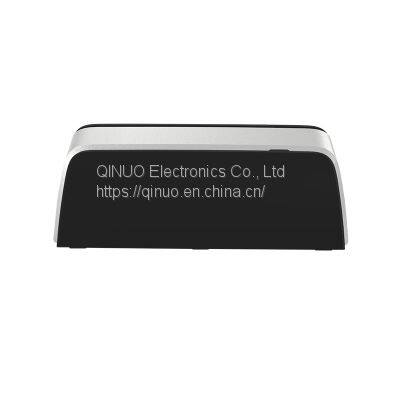

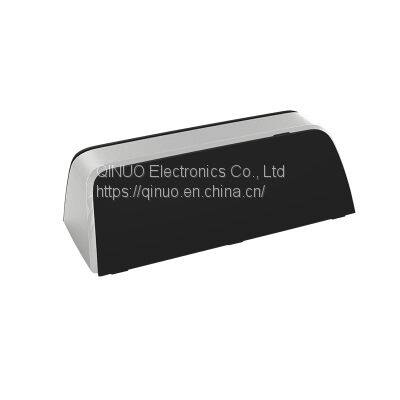

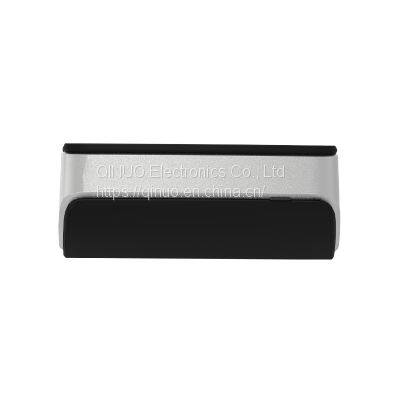

VISION Microwave radar sensor for automatic sliding door

Vision is a radar sensor, which uses microwave doppler technology for activation of door. It can be mounted on all types of standard automatic doors. There is an unidirectionality function, to reduce the heat loss from building and save energy.

• TABLE OF SPECIFICATIONS

Technology:	Microwave doppler radar
Transmitter frequency:	24.150 GHz
Transmitter radiated power:	<20 dBm EIRP
Transmitter power density:	<5 mW/cm²
Min. detection speed:	5 cm/s
Supply voltage:	12V - 24V AC -/+10% 12V -24V DC +30%/-10%
Mains frequency:	50 Hz - 60 Hz
Max power consumption:	<2 W
