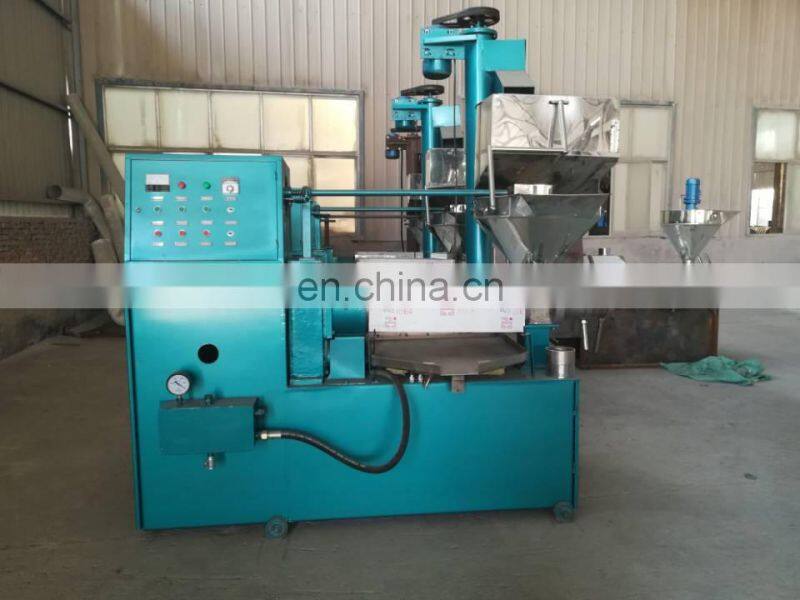

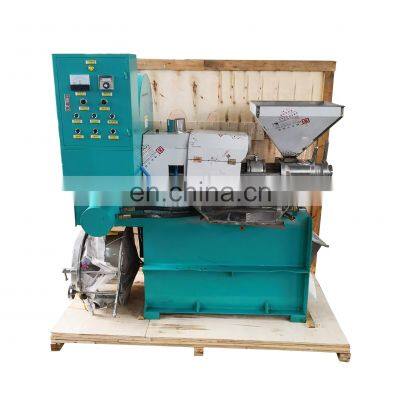

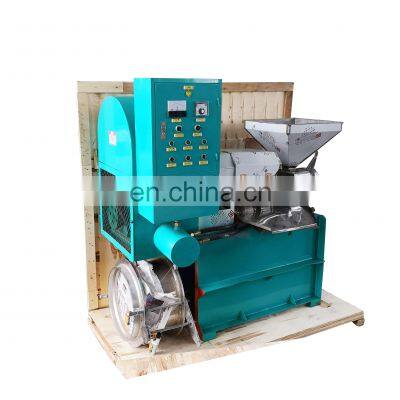

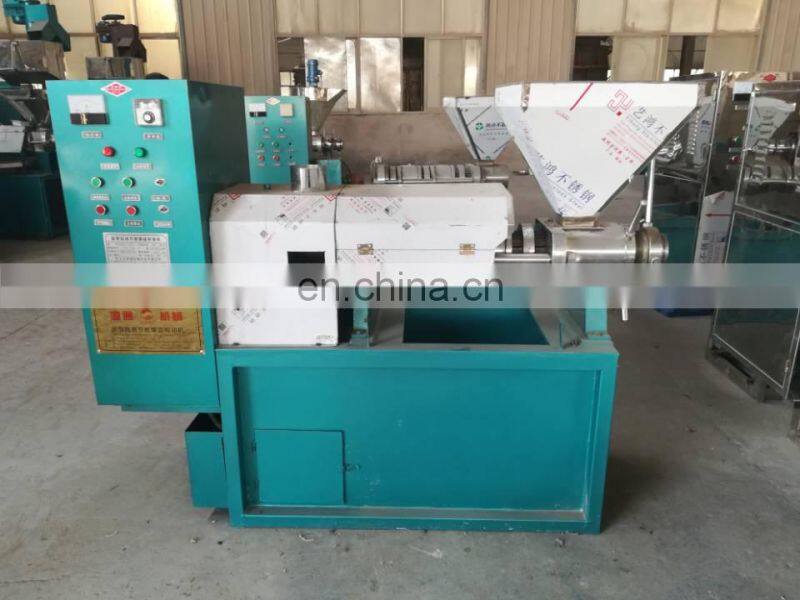

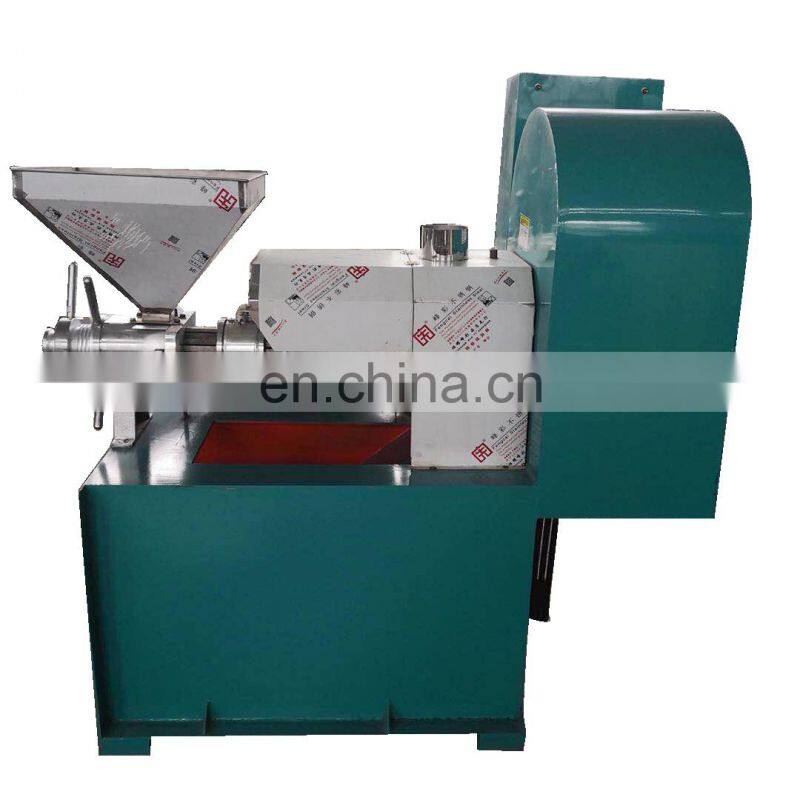

Peanut coconut walnut pam oil extractor with vacuum pump
Introduction:

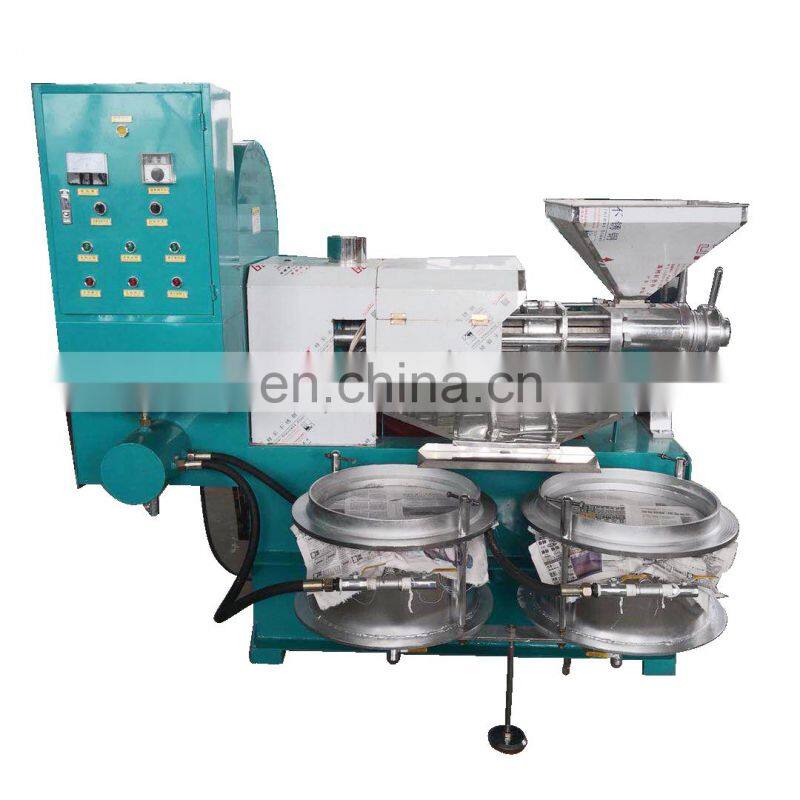

The machine mainly consists of five parts: automatic control box, heating and pressing department, adjustment part, transmission part and vacuum oil filter.
Working principle:
The power transmitted by the main motor passes through the reducer to the main shaft. At the same time the screw installed on the main shaft with rotation, the screw between the oil constantly forward.In the process of pressing, there is friction between oil particles and oil and parts, resulting in heat, which constitutes the pressure and heat of the oil extraction process.
Parameter:
model |
SL-60 |
SL-70 |
SL-80 |
SL-100 |
|
|
squeezer diameter(mm)
|
55 |
65 |
80 |
101 |
|
|
squeezer rotataty(r/min)
|
64 |
48 |
47 |
38 |
|
power |
major machine
|
2.2 |
3 |
5.5 |
7.5 |
|
vacuum pump
|
0.55 |
0.55 |
1.1 |
1.1 |
|
|
heating device
|
0.9 |
1.8 |
2 |
2.2 |
|
Weight(kg) |
220 |
280 |
780 |
1100 |
|
Dimension(mm) |
1200*780*1100 |
1400*860*1260 |
1700*1200*1500 |
1800*1300*1680 |
|
Capacity(kg/h) |
30-60 |
50-80 |
65-130 |
140-280 |
|
Raw materials and final product:
