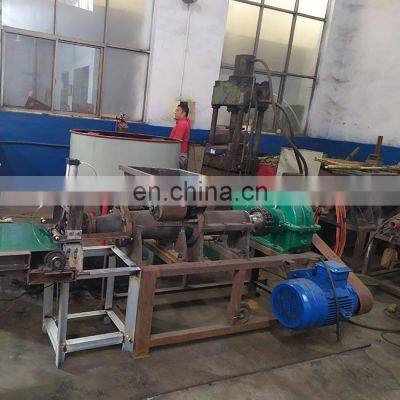

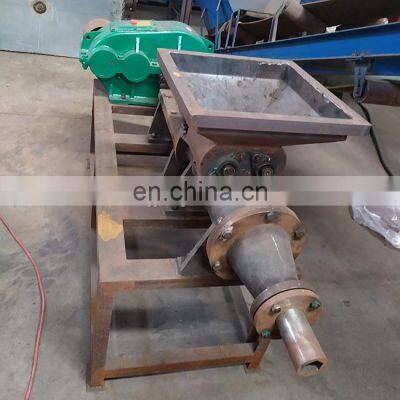

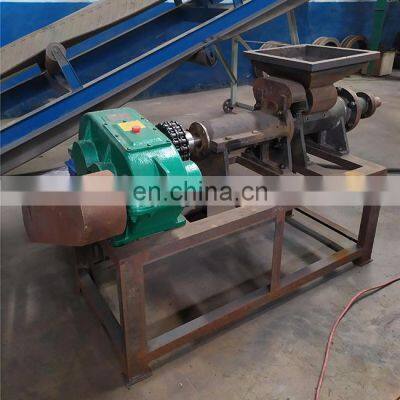

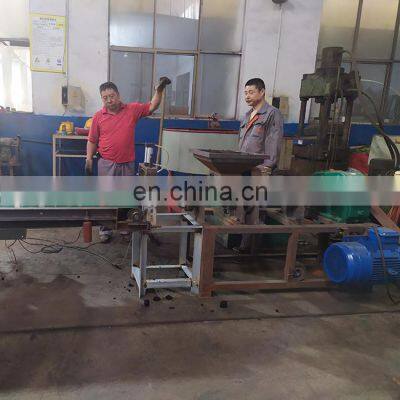

Low price Coal briquette machine Bamboo coconut shell shisha charcoal extruder briquette making machine with high screw forcing
Product Application of shisha charcoal extruder briquette making machine
This shisha charcoal extruder briquette making machine can be used to extrude charcoal stick, biomass stick of different diameters (diameter range: 15-65mm) in cylinder or square shape without hole through different moulds from charcoal dust or charcoal powder. It is widely used in equipment for large, medium and small smelting plant, Refractory plant, coal processing industry, fertilizer plant, chemical plant, boiler, blast furnace, gas producer, shaft kiln, cement plant,house heating etc. It can change then powder materials as charcoal or coal into regular shape with tight density, so that it is easily to be transported even in a long dstance and highly increase the heating value for user.
Main pop used Models of shisha charcoal extruder briquette making machine |
||||||
Model |
MB140 model |
MB180 model |
MB300 model |
|||
Capacity ---Charcoal |
600-1000kg/h |
1000-2000kg/h |
2000-3500kg/h |
|||
Capacity ---Coal |
1-2T/h |
2-3t/h |
4- 6t/h |
|||
Diameter (mm) |
25-50 |
25-60 |
25-80 |
|||
Motor power |
11 KW |
18.5KW |
45kw |
|||
Weight |
1.2T |
2.5T |
4.5T |
|||
Dimension |
2000*1200*800mm |
2200*1300*850mm |
2300*1450*900mm |
|||
Production line process of shisha charcoal extruder briquette making machine
Working Principles of shisha charcoal briquette machine : the motor transfers the power to the transmission through triangle belt, then the output shaft on the transmission transfers the power to the propeller shaft, finally the propeller on the propeller shaft pushes the coal powder into the mould and out, then the ideal high pressure coal rod is generated.
Main Features of shisha charcoal extruder briquette making machine
1.Our charcoal coal small briquette machine absorbs the advanced technique at home and abroad.
2.Innovative design and reliable quality
3.Key parts are processed by imported high quality materials.
4.High strength and toughness
5.Temperature control, durability, adaptability
6.High production capacity
Machine Parts
Name: Screw propeller of charcoal briquette machine
Brand: Mingyang
special chrome alloy 45# steel body
(1)push the powder into the mould and force it shaped
(2)wear-resistant, high pressure resistance, high abrasion resistance.
(3)can reach a production value 12-15ton
Main machine parts
Name: Mould of charcoal briquette machine
Brand:Mingyang
tungsten alloy
(1)decide the shape, diameter of the final product (2)round, square, hexagon , cinquefoil in the stick center , it can with hole or not .Also the rod shape can be customized.
Main Machine Parts
Name: motors of shisha charcoal briquette machine
Brand: Mingyang
electricity or desiel both are ok according to the users' practical demand.
Name |
Hammer mill crusher |
Power |
22-75 kw according to the output capacity, also can use diesel engine motor |
Yield |
300-2000 kg/hr |
Final Size |
1-5mm sawdust or 5-10 wood flakes |
Application |
Grind the big charcoal pieces into small size |
Name |
Charcoal powder edge runner mixer |
Power |
7.5 kw |
Yield |
600-1000 kg/hr |
Final Size |
1 barrel per 10 minutes, 50-100 kg per barrel |
Application |
Pressing the charcoal coal powder materials making it more fine and with high density for next briquette production. |
Name |
Charcoal powder binder mixer |
Power |
5.5 kw |
Yield |
200 kg/hr |
Speed |
1 barrel per 30 minutes, 50-100 kg per barrel |
Application |
Mix the binder with water into a suitable proportion |
Name |
Charcoal briquette drying machine |
Power |
34.5 kw |
Yield |
4000-50000 kg/10hr |
Working mode |
Hot air flew long time regularly drying |
Application |
Dry the final briquettes to packing standard |
We are professional
Gongyi Xiaoyi Mingyang Machinery Plant is one of the largest and earliest manufacturers of the biomass energy equipment (shisha charcoal briquette machine , biomass briquette machine line, charcoal making production line, wood pellet production line and the related machinery) for over 30 years. Now it has been an efficient group with more than 120 experienced workers. having a over 12000 square meter high level standard workshop with advanced producing equipment, Experienced technicians. We can produced 6 production line, more than 150 kinds of machines, awarded 10 patents in China.
Pre-Sales Service
a. Sales team will suggest suitable project.
b. Technical team analyse and design special molds for you.
c. Pick you up at airport, arrange hotel-booking.
d. Other travel arrangements.
After-Sales Service
a. Assist you build up factory and production line.
b. Install and maintain machines.
c. Training your workers to achieve skillful operation.
d. Offer technical support through telephone or online videos at any time.
Thanks so much to learn us so much, if you are interested to the shisha charcoal briquette machine , firstly answer me these questions below:
2. How many raw material you have one day?
3. What's the kind of the final product you need? ( the shape, diameter, length)
4. Electrical supply in your place?
