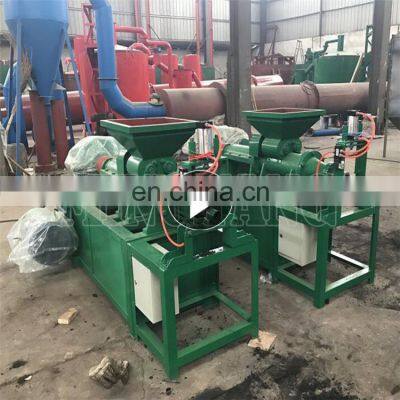

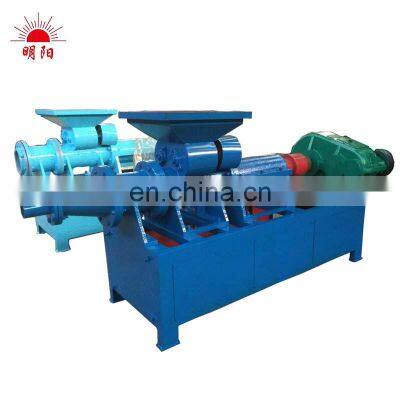

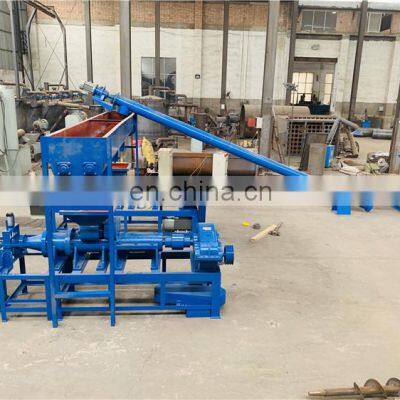

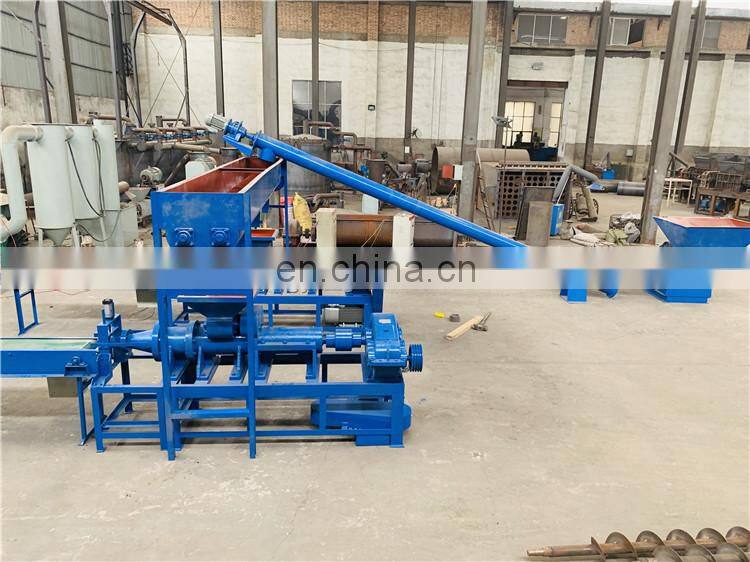

Charcoal Dust Coal Powder Rod Extruder Charcoal Rods Forming Extruder Machine
1.Charcoal Dust Coal Powder Rod Extruder Charcoal Rods Forming Extruder Machine adopts a hard tooth surface reducer, which has small volume and high bearing capacity.
2. The inner impeller of the Charcoal Dust Coal Powder Rod Extruder Charcoal Rods Forming Extruder Machineadopts thickened blade design, and the impeller and the inner liner of the cylinder are made of wear-resistant precision casting materials, and the service life is 4-5 times higher than that of ordinary materials.
3. Charcoal Dust Coal Powder Rod Extruder Charcoal Rods Forming Extruder Machine head is made of replaceable wear-resistant alloy steel, which is convenient to replace. The machine head and the cylinder body are spliced and can be opened during maintenance. It is convenient to replace the internal impeller and the cylinder liner. The carbon powder rod making machine is a new product that has been researched by the factory for many years.
4. The environmentally friendly Charcoal Dust Coal Powder Rod Extruder Charcoal Rods Forming Extruder Machine is one of the main equipments in the fuel forming section of the ammonia plant and the gas plant gasification system. It is a circular (or hexagonal) shape that squeezes the fuel pulverized coal into a certain strength .
1. Crush the raw material into small pieces (size is about 3-5mm), if your raw material size is big;
2. Dry the material by the dryer machine or dried it in the sun, till the moisture is less than 8%- 12%; if your raw material moisture content is higher than 8-12%;
3. Put the dried material into feeding inlet of briquette machine by worker or by screw conveyor;
4. Produce the briquette from the dried material without any additive by the wood briquette machine;
5. Carbonized the briquette and become charcoal briquette.
*Whole working process to make charcoal briquettes
1. Crush the raw material to the sawdust if the raw material size is big;
2. Dry the crushed material to the suitable mositure content if the raw mateiral moisutre content is over 8-12%;
3. Put the dried material into feeding inlet of briquette machine by worker or by screw conveyor;
4. Produce the briquette from the dried material without any additive by the wood briquette machine;
5. Carbonized the briquette and become charcoal briquette.
BBQ or burning for warming
if you want to make ball shape or honeycomb shape or cube shape we can also meet you needs , besides, if you want to make other shapes we can also made for you .

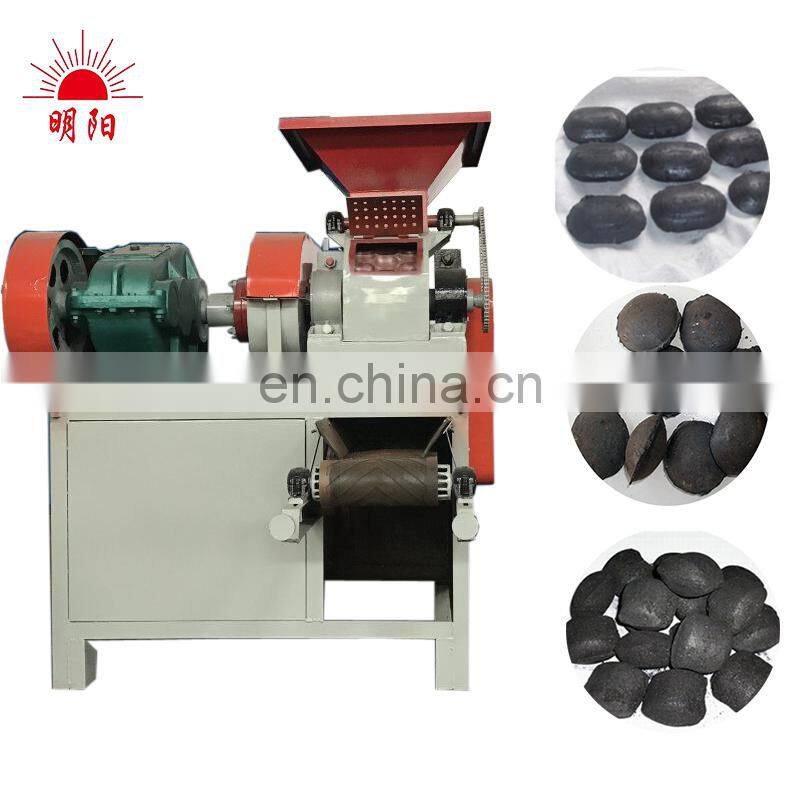

Ball shape ------Charcoal ball press machine

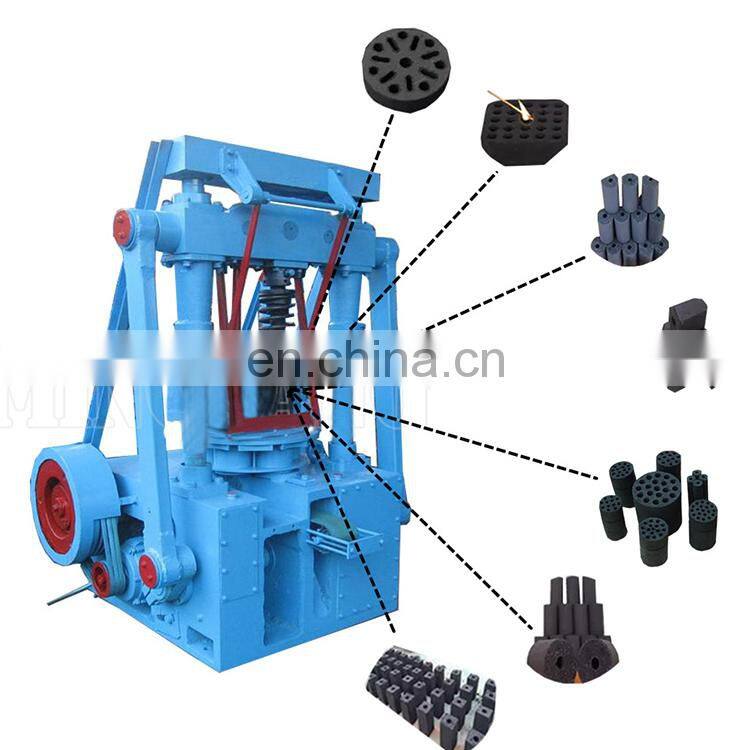

Honeycomb shape----Honeycomb froming machine
Cube shape-----hydraulic tablet press machine
*Detailed information about Charcoal Powder Extruder
No. |
MODLE Briquette press machine |
PARAMETER |
|||
|
|
MBJ140 |
MBJ180 |
MBJ300 |
MBJ450 |
1 |
Output(t/h) |
1-2(charcoal) 2-4(coal) |
2-3(charcoal) 4-6(coal) |
4-6(charcoal) 8-12(coal) |
8-12(charcoal) 16-24(coal) |
2 |
Power(kw) |
11-15 |
18.5-22 |
75 |
220 |
3 |
Rotation rate(rpm) |
46-60 |
39-60 |
60 |
118 |
4 |
Coal rod section shape(mm) |
Φ20-30 |
Φ20-30 |
Φ18-30 |
Φ20-30 |
5 |
Spiral blade number |
5 |
5 |
3 |
4 |
6 |
Screw impeller diameter(mm) |
Φ140 |
Φ180 |
Φ300 |
Φ420 |
7 |
Density |
End products fall down from 2M high, 75% are not broken. |
|||
8 |
Size(mm) |
1900×1100×1170 |
2210×1370×1440 |
3200×2200×1220 |
5130×1520×1480 |
9 |
Working current(A) |
You decide |
You decide |
120-140 |
320-360 |
10 |
Raw material fineness(mm) |
<5 |
|||
11 |
Moisture content(%) |
12-14 |
|||
Gongyi Xiaoyi Mingyang Machinery plant is located in Zhengzhou.Henan province. Our machineryplant is specialize in WOOD BRIQUETTE MACHINE 26 years.
There have production line of makingwood charcoal briquette(including crusher , dryer , wood briquette machine, carbonization stove) ,
production line of making wood pellet (including crusher, dryer , wood pellets machine , dust separation plant and packaging machine)
production line of making coal ball briquette(includingvertical crusher, mixing machine, coal briquette pressing machine and dryer machine for coal briquette)
and other equipment such as screw conveyor, belt conveyor, scrap conveyor , sawdust carbonization stove, floating fish feed machine and so on.
Our machines have the best quality and we have got many certification such as CE, ISO, BV.
If you need our product , you can communication with me in any way as follows.
