Low Noise Branch Shredder Machine Template Chipper Scrap Wood Pallet Drum Chipper

Low Noise Branch Shredder Machine Template Chipper Scrap Wood Pallet Drum Chipper photo-1

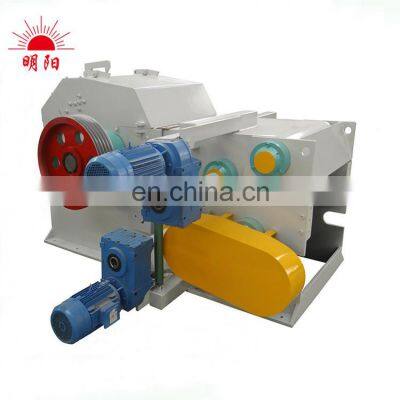

Low Noise Branch Shredder Machine Template Chipper Scrap Wood Pallet Drum Chipper photo-2

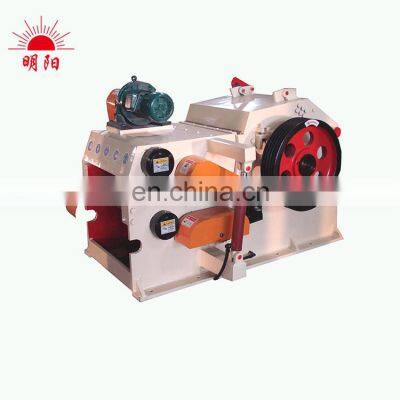

Low Noise Branch Shredder Machine Template Chipper Scrap Wood Pallet Drum Chipper photo-3
Low Noise Branch Shredder Machine Template Chipper Scrap Wood Pallet Drum Chipper photo-4

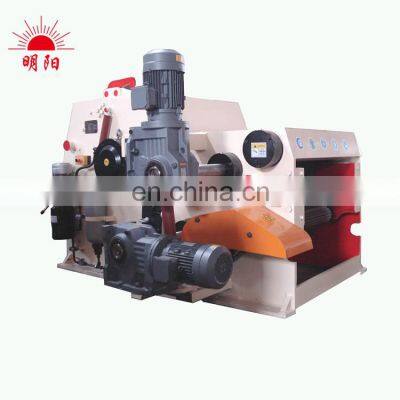

Low Noise Branch Shredder Machine Template Chipper Scrap Wood Pallet Drum Chipper photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Business Service (Transportation, finance, travel, Ads, etc)
Year Established:
2015
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Low Noise Branch Shredder Machine Template Chipper Scrap Wood Pallet Drum Chipper

Product Description
Drum type chipper machine , the final products is 30-50mm wide and 2-3mm thick wood chips. The final woood chips is used for burning , papermaking, making compressed wood boards, etc. It can also be used as a wood crusher ,after crushing , it can increase the capacity of the wood crusher .
Low Noise Branch Shredder Machine Template Chipper Scrap Wood Pallet Drum Chipper


Raw material and final products of the wood chipper shredder mulcher:

Our wood drum chipper is versatile and suitable to chip a myriad of raw materials for wood pelletizing.

1.for wood materials, it can chip undersized branches, slabs, plump wood, panels manufacturing, leftovers of furniture factories, plant fibers and so on;

2.for non-wood materials, drum chipper is fit for sugarcane stalk, bulrush and bamboo.

Low Noise Branch Shredder Machine Template Chipper Scrap Wood Pallet Drum Chipper

The working principles of the wood chipper shredder mulcher:

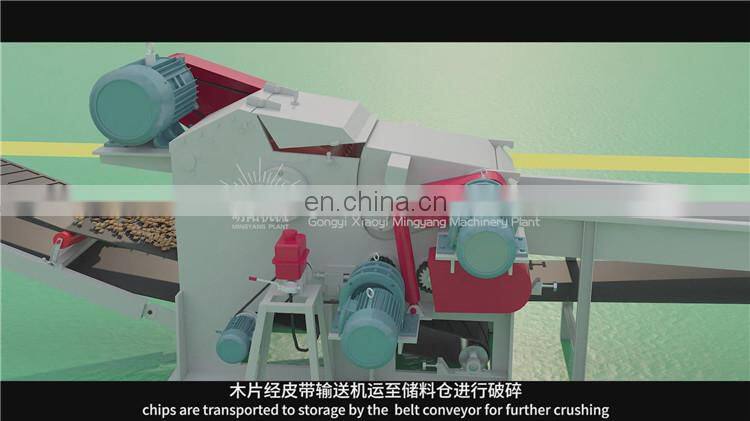

the main parts of the drum wood chipper include: machine rack, the blades rollers, double feeding rollers, the transmission belt and the hydraulic buffer system. The blades roller in the crushing room is connected with the electric motor by the transmission belt. The raw materials is clamped and transmitted to the crushing space by the feeding system, then crushed by the fast rotating blades on the roller frequently. The larger wood chips will be processed for several time before discharged from holes on the screen. At last, the wood chips with flat incision, even length, uniform thickness are discharged.

 Low Noise Branch Shredder Machine Template Chipper Scrap Wood Pallet Drum Chipper



Wood chipper shredder mulcher main data:
Model MY-BX215 MY-BX216 MY-BX218 MY-BX2113
lnlet size(H*W)(mm) 160*400 230*500 300*680 450*700
Blades number (pcs) 2 2 2 2
Knife roller speed(turn) 592 590 650 500
Max. Diameter (mm) 160 230 300 450
Woodchips size (mm) 30 30 30 38
Capacity (T) 3.4 7-8 12-15 15-30
Main motor power (kw) 45 55 110 200-250
Feed roller motor power(kw) 2.2-3 3-4 4-5 7.5*2
Oil pump motor power (kw) 1.5*1 1.5*1 1.5*1 3*1
Weight (kg) 2990 5030 7000 11840
Outline Dimension (mm) 1470x1550x970 1800x1900x1210 2200x2150x1500 3670x2517x2050
Converyor motor power (kw) 3 3 3 3

Low Noise Branch Shredder Machine Template Chipper Scrap Wood Pallet Drum Chipper

 Disc type chipper---mainly deal to wood log, wood chipper , wood branch , etc.
Dis chipper: it can be equipped with diesel engine, which is easy to move  and has good finished material type .Accrdoing to the different models, the capacity is 1-3.5t/h
Model 600 800 1000 1300

Mouth diameter

(mm)

650*230 800*250 1000*280 1300*300

Spindle speed

(r/min)

2400 2400 2000 2000

Motor

(kw)

20+5.5 37+5.5 55+5.5*2 110+7.5*2

Production

(kg/h)

600-800 800-1500 2000-2500 2500-3500

Low Noise Branch Shredder Machine Template Chipper Scrap Wood Pallet Drum Chipper



 Related wood crush machines :Dis wood chipper

Hammer mill -----mainly deal to peant shells , rice hsuk, tree branch,etc.

Low Noise Branch Shredder Machine Template Chipper Scrap Wood Pallet Drum Chipper


 Disc type crusher ---Mainly deal to wood log,wood chippers, etc.
Low Noise Branch Shredder Machine Template Chipper Scrap Wood Pallet Drum Chipper
 Wood shaving machine ----mainly for wood log , wood chipper , used for pet bed.
Low Noise Branch Shredder Machine Template Chipper Scrap Wood Pallet Drum Chipper













Packaging & Shipping

For one set we packed in  standard container.For more sets machines, we pack them in the standard container.

Low Noise Branch Shredder Machine Template Chipper Scrap Wood Pallet Drum Chipper



Company Information

Gongyi Xiaoyi Mingyang Machinery plant is located in Zhengzhou.Henan province. Our machineryplant is specialize in WOOD BRIQUETTE MACHINE 26 years.

 There have production line of makingwood charcoal briquette(including crusher , dryer , wood briquette machine, carbonization stove) ,

production line of making wood pellet (including crusher, dryer , wood pellets machine , dust separation plant and packaging machine)

production line of making coal ball briquette(includingvertical crusher, mixing machine, coal briquette pressing machine and dryer machine for coal briquette)

and other equipment such as screw conveyor, belt conveyor, scrap conveyor , sawdust carbonization stove, floating fish feed machine and so on.

 Our machines have the best quality and we have got many certification such as CE, ISO, BV.
