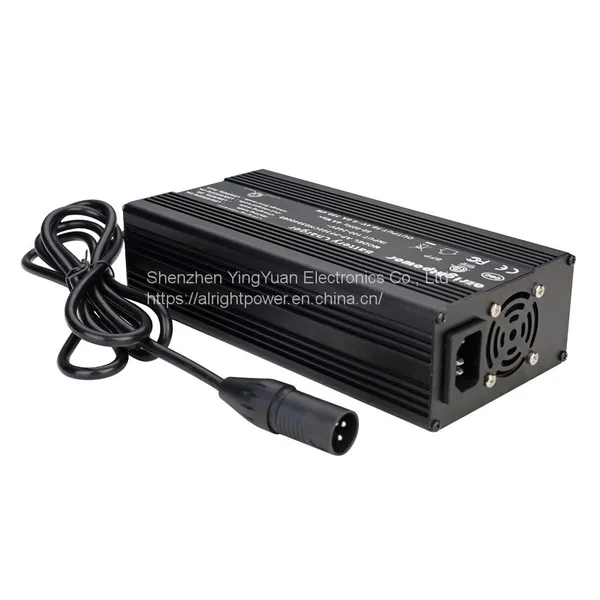

360W 48V 6A Battery Charger
Typical output: 48V 6A charger
Fully auto 4 stages charging process by MCU controller
4 LED indicate the battery capacity from 25%~100%
Worldwide AC input 100V-240V
Charging stage: Small current pr-charge; constant current charging; Constant voltage charging
The Specifications Of 360W 48V 6A Battery Charger
Charger Model | AC Input Voltage | Battery Voltage | Max Voltage(V) | Max Current (A) | |
AP-PN360CH01460150 | 100-240 | 12 | 14.6 | 15 | |
AP-PN360CH02920100 | 100-240 | 24 | 29.2 | 10 | |
AP-PN360CH04200070 | 100-240 | 36 | 42 | 7 | |
AP-PN360CH05460060 | 100-240 | 48 | 54.6 | 6 | |
AP-PN360CH01200150 | 100-240 | 12 | 14.6 | 15 | |
AP-PN360CH02400100 | 100-240 | 24 | 29.2 | 10 | |
AP-PN360CH03600070 | 100-240 | 36 | 42 | 7 | |
AP-PN360CH04800060 | 100-240 | 48 | 54.6 | 6 | |
INPUT | AC Input Voltage Range | 100V ~ 240V | |||
AC Input Frequency | 45~65HZ | ||||
AC Power Factor Correction | ≥0.98 | ||||
OUTPUT | Output Voltage Range | 12~60V | |||
Output Power Range | 15A (Max) | ||||
VIBRATION | 10～50HZ 2G 10 minutes，X，Y，Z /60 minutes | ||||
DIMENSIONS (mm) | (L) 183х (W) 122.5х (H) 69 | ||||
Protections | Over current protection ,Over Voltage Protection ,Short- circuit Protection Reverse Connection Protection ,Battery open-circuit protection | ||||
CERTIFICATIONS | CE ROHS | ||||
PACKING DETAILS | 2kg/pcs | ||||
12pcs/Carton | |||||
Carton size: 580*480*185mm | |||||
As a 12v 20a battery charger factory, we will provide more types of related products for sale, anything you need, please contact us.
Now the price of usb charger is affordable, if you have needs, please contact us.
