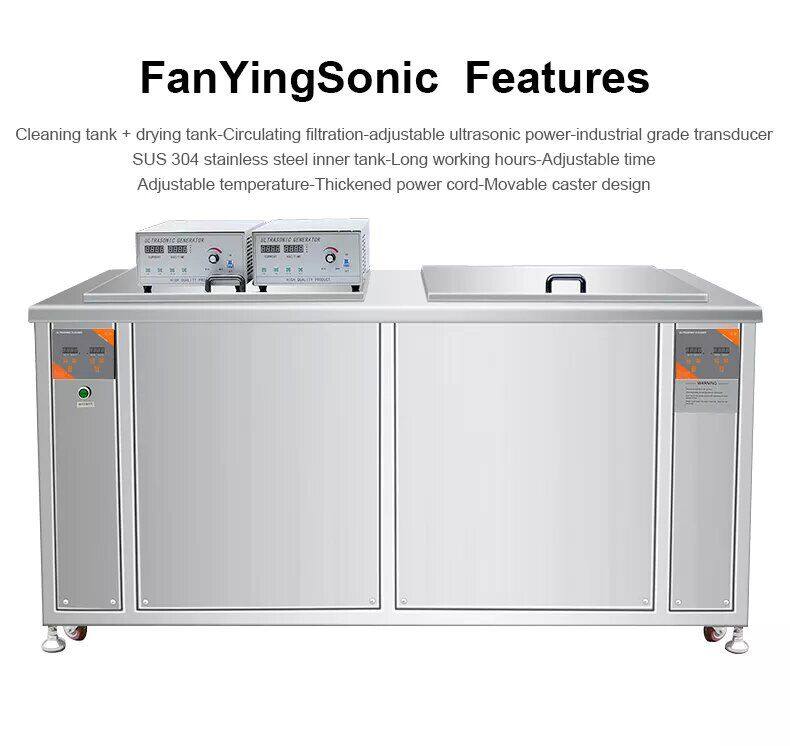

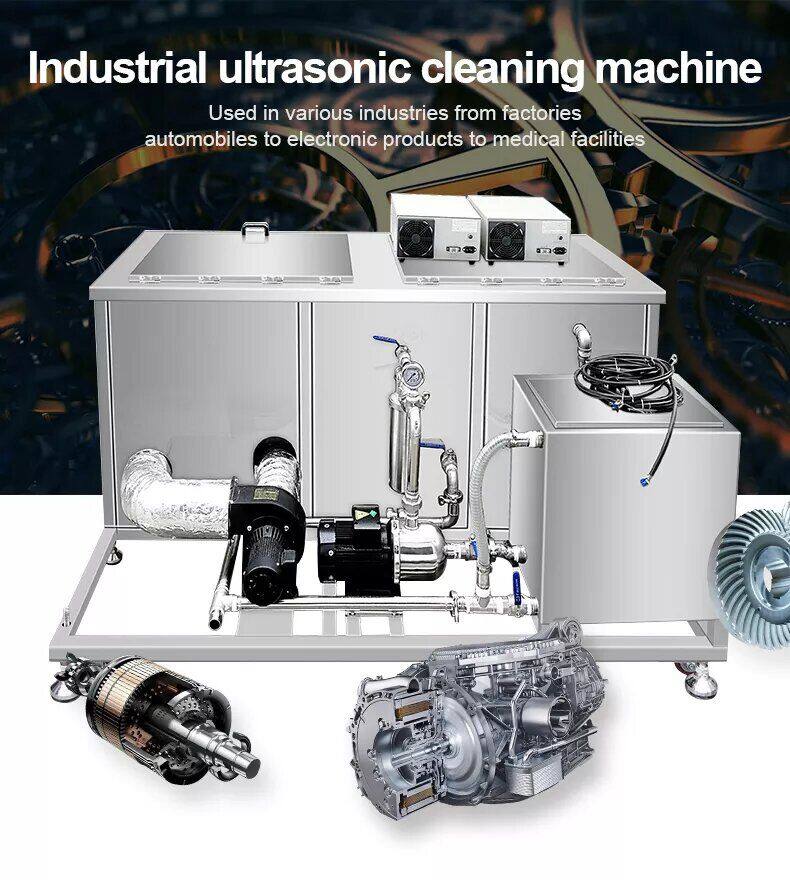

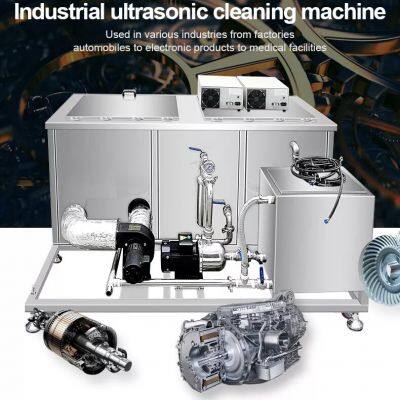

Help CenterFanYing 45L 600W 40KHz Industrial Ultrasonic Cleaner Dual Tank Filter Dry Degreasing For Auto Parts Engine Car Washing Machine
Related Products
-
FanYingSonic 4L 180W Ultrasonic Cleaner With Heater Timer Wash Watches Glasses Makeup Brush Jewelry Ring Ultrasound SonicNegotiableMOQ: 1 Piece -
FanYingSonic Ultrasonic Cleaner 6L Household Digital Ultrasound Sonic Cleaner Heated Home Industry Lab Clinic Metal WashingNegotiableMOQ: 1 Piece
-
FanYingSonic Vinyl Record Ultrasonic Cleaner 6L 180W Digital Heated Degas For Metal Carburetor Injector Nozzle Engine Car WasherNegotiableMOQ: 1 Piece
-
FanYingSonic 800ml 35W Ultrasonic Cleaner Digital Timer Wash Gold Sliver Jewelry Watch Glasses Sonic Vibrator Cleaning MachineNegotiableMOQ: 10 Bags
-
FanYing 3L Ultrasonic Cleaner 120W With Heater Timer Degas 40khz Wash Jewelry Ring Oil Rust Removal Surgical Clinic Dental ToolNegotiableMOQ: 1 Piece

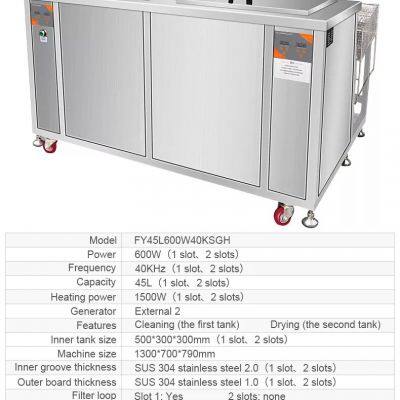

Features and specifications:
Product size: 640mm 440mm 650mm
In-tank size: 500mm*300mm*300mm
Product material: 304 stainless steel
Product color: silver
Power: 600W
Capacity: 45L
Adjust time function, Adjust temperature / Power, Drain
Frequency: 40KHz
Customized Frequency, offer 28KHz or 40KHz or 80KHz or 120KHz, welocme OEM / ODM
Applications of Ultrasonic Cleaner:
-
Ultrasonic Cleaning Machine has been widely used in Hardware, Electronics, Glasses, Jewelry, Optics, Clocks, Medical Dentistry, Health care institutions, Chemical, Automotive, Shipping, Aviation and Repair Industries.
Electronic appliances:Switch, integrated circuit, electronic circuit board, semiconductor element, silicon chip, quartz crystal, magnetic head, magnetic tape, optical fiber, Relay, capacitor, Alarm, memory, LCD, Solder, oil stains, turpentine, preservatives, paraffin, oxide, rust on the hard disk components.
Watches and Jewelry industry:Remove paint, spray paint, compound, oil sludge, dust, oxide layer, polishing paste on Jewelry, necklaces, jade articles, watches, glasses, etc.
Chemical and biological Industry:cleaning, disinfection and sterilization of chemical instrument and laboratory vessel. Assisted accelerate the emulsification, decomposition and extraction.
Automobile industry:Mainly remove oil, antiseptic, plastic residue, abrasive and graphite on Valve, ignition plug, fuel pump, oil tank, battery electrode, piston ring, machine control disc parts.
Optical Industry:Remove oil, sweat and ash on the Optical instruments and all kind of lens.
Aviation industry:Remove oxide, dust, rust, carbon and scale on fuel filter, flow control equipment, Gyroscopes, satellite and aviation hydraulic system
Electroplating industry:Remove grease, rust, phosphide on the Vernier caliper, fixture, spectacle frame, surgical instruments, dental tools, hardware, watch parts, metal structural parts such as fishing gear accessories
Printing and textile industry: Remove stains, ink mark, fingerprints, oil and dyestuff on the Rotary machine, spinneret, polyester filter core, textile spindle.
Power industry:Remove Ink, oil, dust, rust on the street lamp, electric power meter, bulb, teletype and insulation head
Vacuum ion plating products:Mainly cleaning oil stains, fingerprints, dust, oxides on Lenses, resin sheet, glass, lighting, arts and crafts before coating
Medical instruments:Mainly remove blood, gel, fingerprints, residues, proteins on Syringes, pipettes, glass containers, pacemakers, esophagoscopes, proctoscope, directional mirrors, artificial organs.
Precision machinery:Mainly remove Abrasives, iron filings, rust inhibitors, composites, cooling oils, polishing, oxides on Screws, nozzles, gears, springs, bearings, lead frames, production machinery, full enclosed compressors, heat exchangers, precision valves.

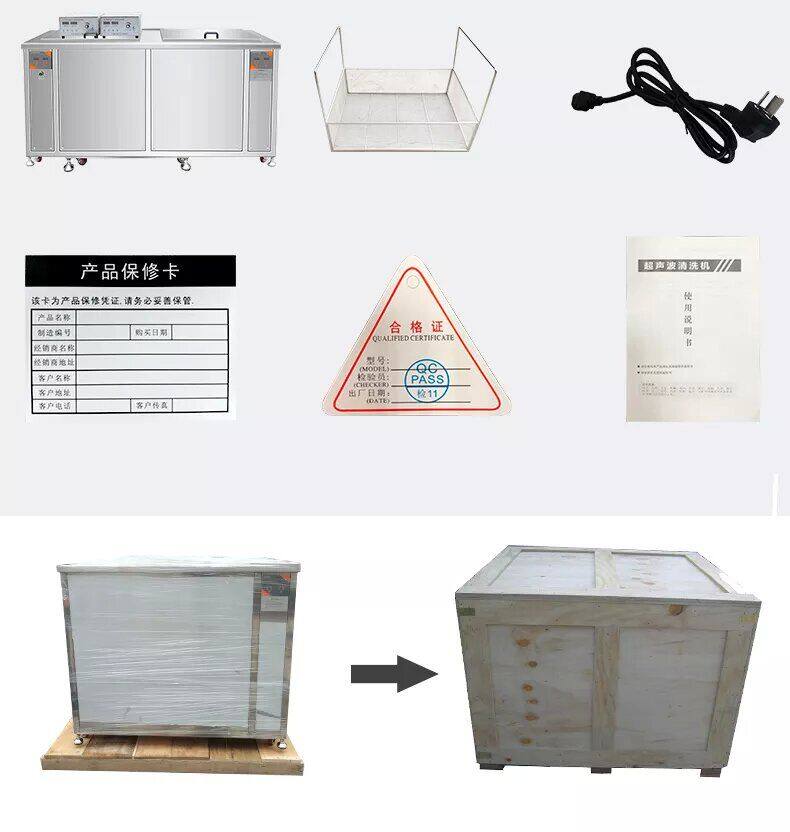

Package included:
1 x Ultrasonic Cleaner
1x generator
1 x Cleaning Basket
1 x Stainless steel cover
1 x Industrial Power Cord
1 x Instruction Manual
| Model Number | Power(W) | Transducer(pcs) | Generator(pcs) | Heat Power(W) | Tank Size(mm) | Capacity(L) | Machine size(mm) |
| FY45L600W40KSGH | 600 | 12 | 2 | 1500 | 500*300*300 | 45 | 640*440*650 |
| FY61L900W40KSGH | 900 | 18 | 2 | 1500 | 500*350*350 | 61 | 640*490*700 |
| FY88L1200W40KSGH | 1200 | 24 | 2 | 3000 | 550*400*400 | 88 | 690*540*750 |
| FY108L1500W40KSGH | 1500 | 30 | 2 | 3000 | 600*450*400 | 108 | 740*590*650 |
| FY135L1800W40KSGH | 1800 | 36 | 2 | 4500 | 600*500*450 | 135 | 740*640*750 |
| FY192L2400W40KSGH | 2400 | 48 | 2 | 6000 | 700*550*500 | 192 | 840*640*750 |
| FY264L3000W40KSGH | 3000 | 60 | 4 | 7500 | 800*600*550 | 264 | 940*740*800 |
| FY360L3600W40KSGH | 3600 | 72 | 4 | 9000 | 1000*600*600 | 360 | 1140*740*850 |
| FY540L5400W40KSGH | 5400 | 108 | 6 | 18000 | 1000*900*600 | 540 | 1140*940*950 |
| FY960L7200W40KSGH | 7200 | 144 | 6 | 24000 | 1200*1000*800 | 960 | 1340*1140*1050 |
FAQ
(1) Are you manufacturer or trading company?
We are manufacturer. All the core components (ultrasonic transducer, ultrasonic generator) are made by ourselves.
(2) Do you accept OEM and ODM?
Yes, we also have professional R&D teams ( ultrasonic transducer team, ultrasonic generator team and mechanical design team) to respond your special needs quickly.
(3) Delivery time
Standard products can be delivered in 7 working days. Customized machines depend on the design.
(4) Warranty
We guarantee quality of the products for a period of 1 year. If any quality problem within warranty, we' ll provide free spare
parts or repairing service.
(5) Do you provide trial cleaning service?
Yes, you're welcome to send the work pieces for trial cleaning. We'll send you video and report after testing . It's free service.
(6) Which ultrasonic frequency and ultrasonic power are suitable for our work piece?
Please contact us and provide details as specific as you can. Information includes:the size, material, weight and dirt of your
work piece and cleaning tank dimension etc.
