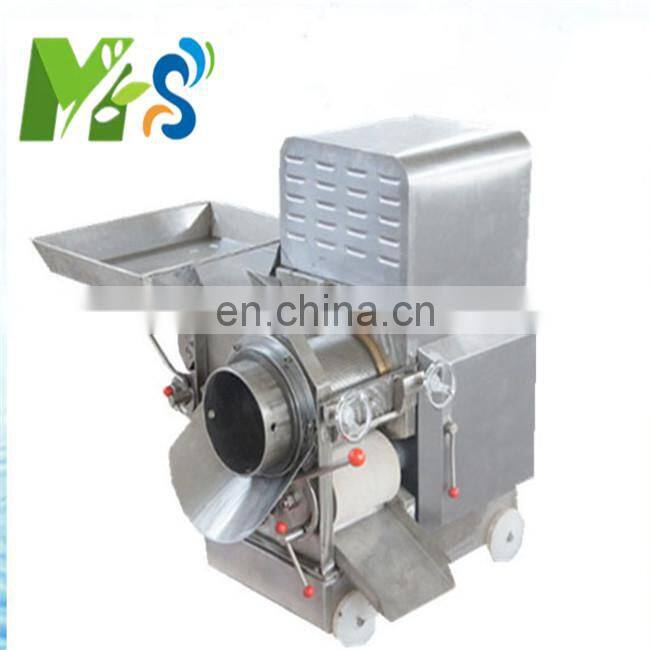

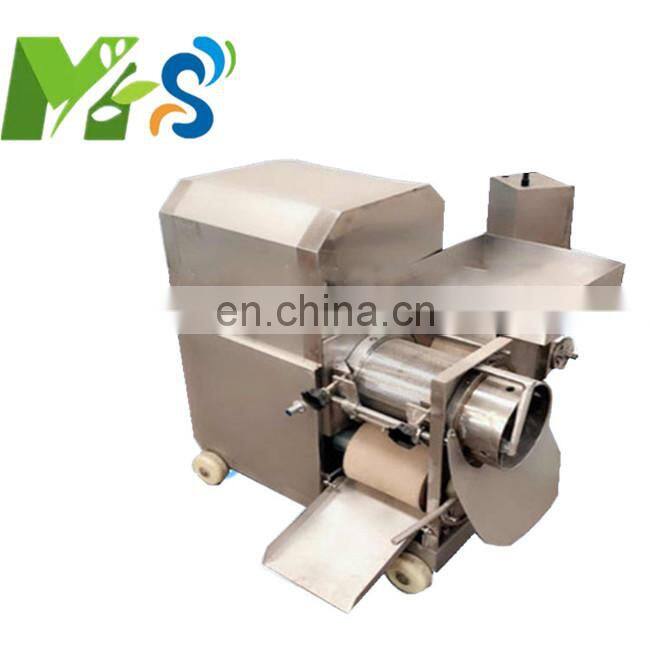

MS Good Reputation Fish Meat And Bone Separator Machine/ Fish Deboning Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Other
Year Established:
2010
Annual Export Value:
US$2.5 Million - US$5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
MS Certificate Commercial Bone Grinder/Multifunctional Bone Crusher/Multifunctional Beef Bone Crusher Pig Bone Crusher MachineNegotiableMOQ: 1 -
MS High Efficiency Bone Grinding Machine/bone Grinder/chicken Bone Crusher With Ce CertificationNegotiableMOQ: 1
-
MS Fish Ball Making Machine/meat Ball Forming Machine Stainless Steel Meatball Meat Ball Maker Making MachinesNegotiableMOQ: 1
-
MS Automatic Commercial Hot Meatball Beater/Meat Beater Beef Ball Battering Breading MachineNegotiableMOQ: 1
-
MS Automatic Meat Skewer Machine / Kebab Skewer Machine/ Satay Skewer MachineNegotiableMOQ: 1
Product video
Products Description
The fish meat extraction machine is mainly used for the extraction and deboning of various fish meats, and separates the fish flesh and fish bones, fish skin and fish tendons in the fish body. Separate the shrimp meat from the shrimp shell, or extract the shrimp head meat (cream). The processing efficiency is high, saving time and effort, and reducing labor costs. The food contact parts are made of stainless steel, which meets the requirements of food hygiene standards.
working principle：

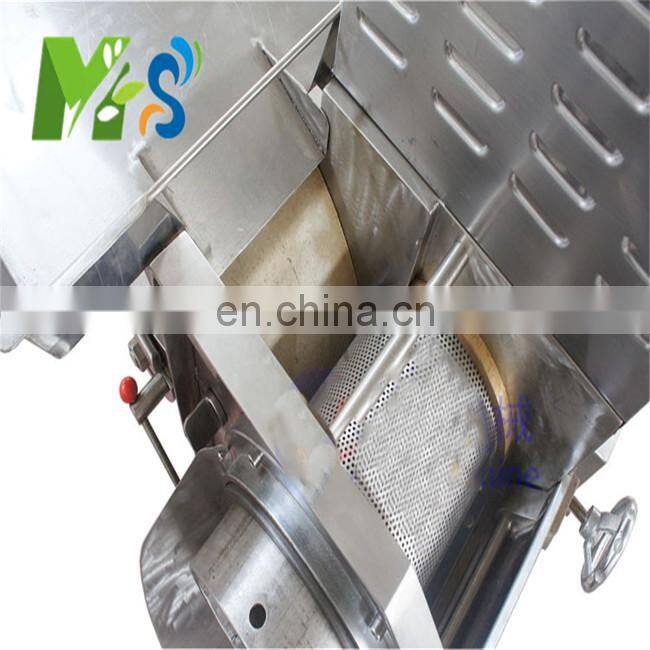

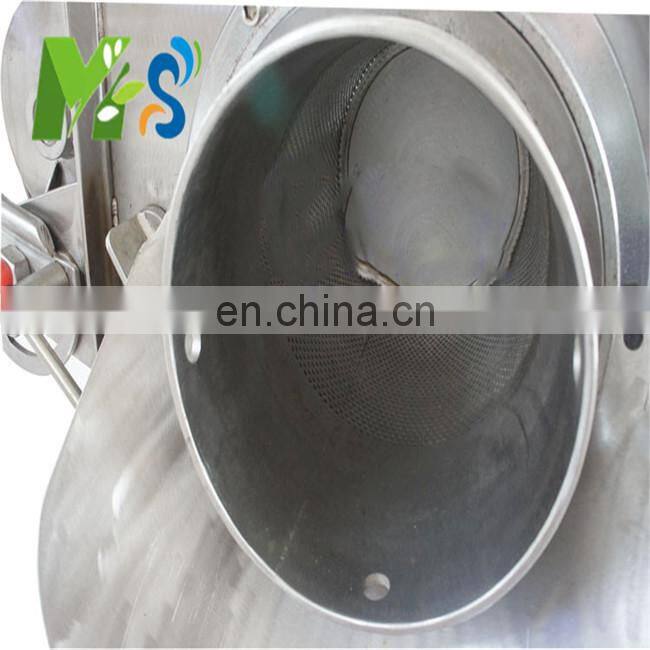

Manually remove the head of the fish to be processed and take out the internal organs of the fish belly; for large fish, the fish needs to be divided into two halves, which are better to rinse (to avoid contamination of the collected fish paste with internal organs and fish blood). Then put the fish fillets into the hopper (the split surface of the fish faces the collecting tube, and the back is close to the rubber band). The fish is driven by the rubber belt into the squeezing zone between the collecting tube and the rubber belt, between the rubber belt and the collecting tube. Under the action of the squeezing force, the fish meat is squeezed into the collecting tube through the small holes on the collecting tube, and the fish pieces in the collecting tube will be automatically sent out with the rotation. Sundries such as fish skins and fish bones are scraped from the outer extension of the collecting tube by the scraper installed on the machine and dropped into the collection tank. The whole meat picking and separation process does not require manual operation, which is convenient and hygienic. The pressure between the rubber belt and the taking tube is adjusted by a rubber belt tensioning device located on the head of the machine. The size of the adjustment amount can be flexibly adjusted according to the size of the fish species. The extracted fish meat can be used as food materials such as fish balls, fish paste, fish sauce, fish cakes, fish dumplings, etc., which greatly increases the economic value of fish.Machine parameters
Model number | Voltage | power | Production capacity | Machine weight（kg） | Machine size (mm) |
MS-150 | 380V | 1.5kw | 150kg/h | 170kg | 860*800*860 |
MS-200 | 380V | 1.5kw | 180kg/h | 180kg | 860*800*860 |
MS-300 | 380V | 2.2kw | 300kg/H | 250kg | 950*850*1000 |
MS-380 | 380V | 2.2kw | 400kg/H | 300kg | 980*860*1150 |
Application scenarios
Factory floor
Our factory
Henan Moorse Machinery Co., Ltd. (hereinafter referred to as MS), established for more than 30 years, is committed to the development and manufacturing of various fruit and vegetable processing machinery, snack processing machinery, nut and meat processing machinery and their production lines The modern standard factory building covers an area of more than 18,000 square meters; MS has more than 50 professional engineers from different technical backgrounds with many years of rich research and manufacturing experience. All our products are made of high-quality stainless steel, with mature product design and sophisticated production technology. Therefore, high-quality products are easier to gain good market reputation and share. Our products are exported to the United States, Canada, Britain, France, Australia, South Korea, India, Singapore, Thailand, Malaysia, Sri Lanka, Brazil, Russia, Uzbekistan, Romania, Croatia, Latvia, Sweden, Nigeria, South Africa, etc. MS believes in the business philosophy of customer first and the concept of "quality first, worry-free after-sales", so MS focuses on providing customers with high quality, competitive prices and good service. Welcome to visit us and start cooperation!
Certificate
Packaging And Logistics
FAQ
Question 1: What are your advantages compared with your competitors?
Answer:
With rich industry experience and strict Product Quality Control systems, we provide:
1). Stable and reliable product at reasonable price
2). Good customer service: Fast response to any inquiry or question
3). On-time delivery.
Question 2: What are your Price Terms?
Answer: Price can be based on FOB, CFR, or CIF, etc.
Question 3: What are your modes of transportation?
Answer: Courier service, Air transport, Sea Transport.
Question 4: How to guarantee your machines quality?
Answer: We choose safe and good quality raw material and set up professional QC department to check quality and details during production.
Question 5 :How to ship the machine?
Answer: The machines will be delivered by express, air or sea transportation according to your requirement.
Question 6: What’s your after-sales service?
Answer: First,every machine has one year warranty.
And,there are engineers on-site installation and maintenance when necessary.
Last,we will keep touching and offer feedback on time if you have questions after buying.
