HENGYI Machinery
Henan Hengyi Heavy Industry Equipment Co., Ltd. specialized in edible oil pressing,soybean soybean oil refining equipment price,oil refining equipment more than 11 years, during the processing of edible oil crushing, refining practice, we summed up a set of effective and less investment, quick, easy to operate edible oil refining method.
Refining the crude oil by degumming (dephosphorization), deacidification reach the edible standards, widely welcomed by the small oil factory.
Features of soybean oil refining equipment price
Our crude oil refinery machine provides professional oil refinery processes, including degumming, dehydration, deacidification, decolorization, bleaching, deodorization, and dewaxing. The complete set of mustard soybean oil refining equipment pricery adopts the most advanced physical refining or chemical refining technology on basis of oil property to get the purest edible oil at the lowest cost investment and energy consumption.

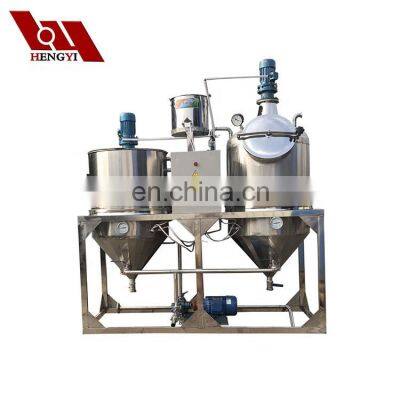

HJL-300 Plant:

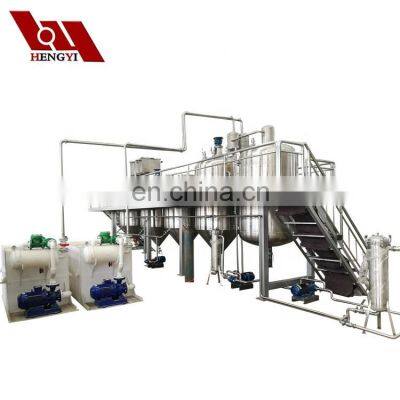

HJL-1000 Plant:
Introduction of four sections in small scale oil refinery plant:
1.Degumming Section: Some impurity, such as Phospholipid, gum, and protein, can be dissolved into oil when there is no water, but once there is water in oil, these impurity can be dissolved into water. So, in degumming section, we use the hot water to wash crude oil for two-three times to remove these impurity.
2.Neutralizing Section: Crude oil contains much free fatty acid, which is harmful for health. Free fatty acid can have the reaction with caustic soda, during the reaction, it can be saponified and becomes soapstock, then small soapstock pellets will sink and becomes sediment and be pumped out. After neutralizing, most of the free fatty acid will be removed out.
3.Decoloriztion Section: Most of the crude oil has deep color because of the pigments, such as carotene, xanthophyll, etc. We use bleaching earth to remove pigments, because bleaching earth has strong adsorption capacity. Then pump oil into plate filter to remove bleaching earth, then pigment also will be removed out along with bleaching earth, then oil will be clean and transparent.
4.Deodorizing Section: Pure oil has no smell, but different crude oil has their special smell because of some volatile matters, for example the oxide for ketones, aldehydes, hydrocarbons. In deodorizing section, we deliver steam into oil continuously, and make sure steam and oil can fully contacted under high temperature and pressure, then volatile matters can be removed out along with the steam.
Oil After Refining:
Models of soybean oil refining equipment price:
| Model | Capacity(t)/Day | Power(KW) | Material | Loading size(container) | Process range |
| HJL-300 | 1.8T | 30.95KW | SUS304/316 | 20GP | 1-4 Grade |
| HJL-500 | 3T | 37.45KW | SUS304/316 | 20GP | 1-4 Grade |
| HJL-1000 | 6T | 46KW | SUS304/316 | 40HQ | 1-4 Grade |
Main Equipment List:
| Item | Function |
| Oil refining tanks | Tank 1: Dephosphorization&Degumming |
| Tank 2: Deacidification | |
| Tank 3: Dewatering&Decolor | |
| Tank 4: Deordoriztion | |
| Steam Generator | Remove smell(volatile matters) |
| Flame filter | Filter residuel in the oil |
| PLC | Control the procedure automatically |
Main Parts of soybean oil refining equipment price:
Before refining the oil, there is physical method to get the crude oil, the following is the relate machines:
Material Roaster-----Screw conveyor-----Oil press machine-----soybean oil refining equipment price-----Oil filling machine
With high quality machine, high quality after sales service, Hengyi will be your best choice.
