Introduction of hot melt adhesive machine

Fusible machine is the ideal equipment for fusible lining and fabric in garment industry. After being glued by this machine, the clothing material has the characteristics of smooth and firm, wrinkle-free and washing resistant, etc. It can also be used for shrinking, drying, ironing and shaping all kinds of cloth.

Features of adhesive machine:

1, uniform temperature, temperature difference of each part of the adhesive machine is not more than ±5℃ after heating.

2, the rubber roller pressure is stable, the pressure is uniform within the width of the belt.

3. The mechanical transmission is stable and the noise is very low.

4, with automatic shutdown function.

5. The temperature, pressure and speed of the adhesive machine can be adjusted arbitrarily in the specified range according to the needs.

6, easy to operate, simple maintenance of machinery and electrical appliances

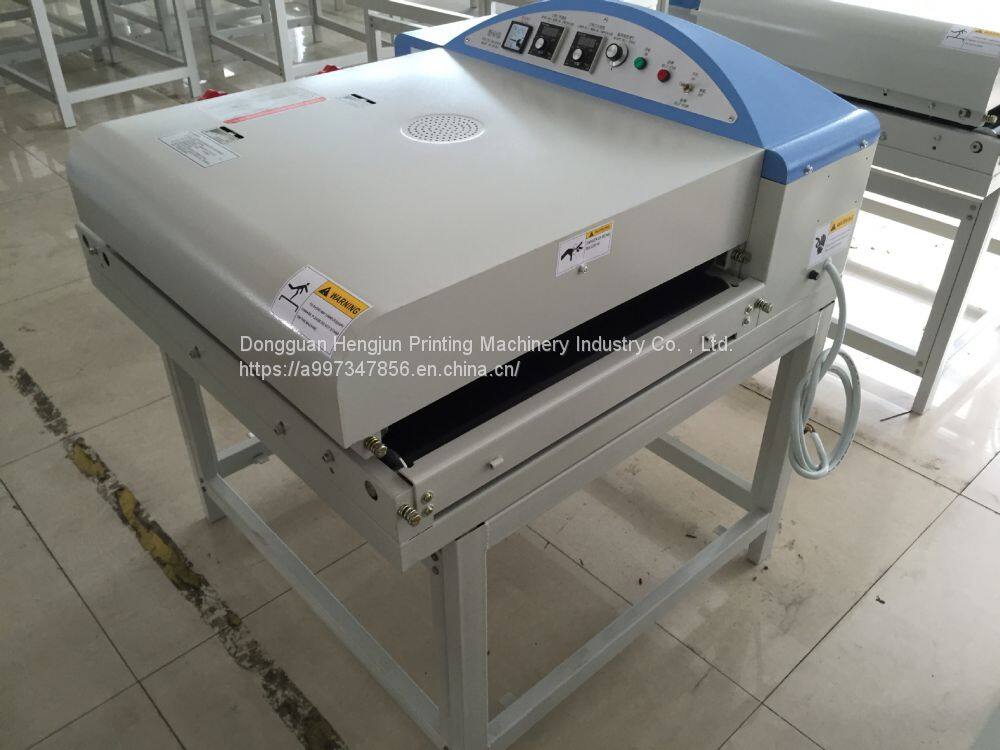

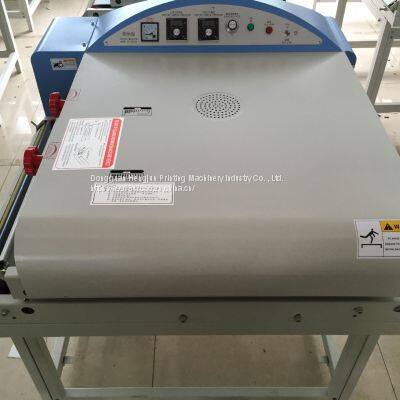

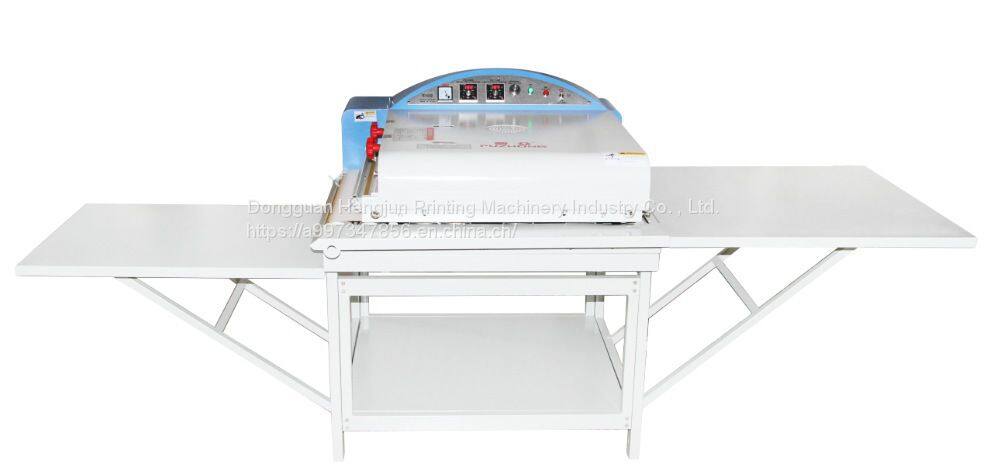

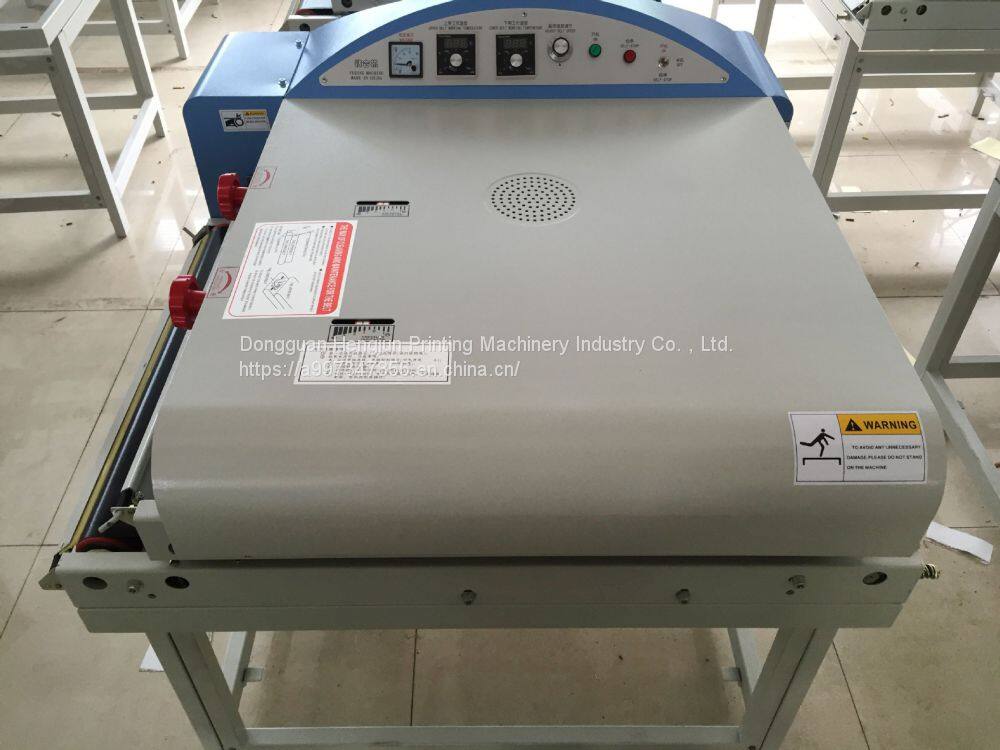

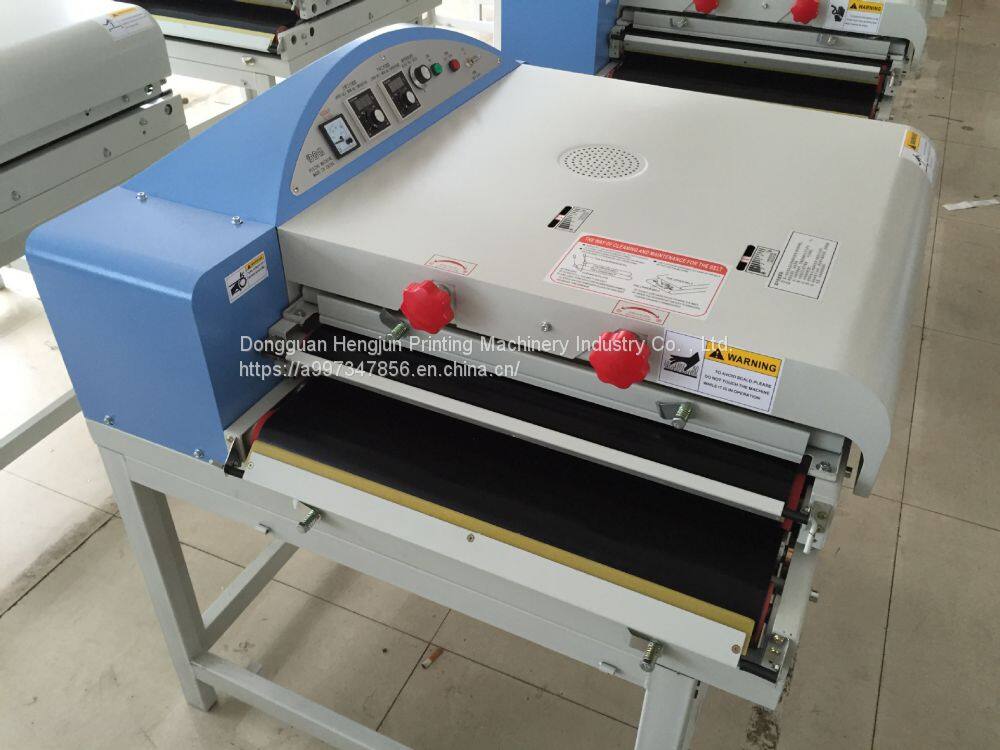

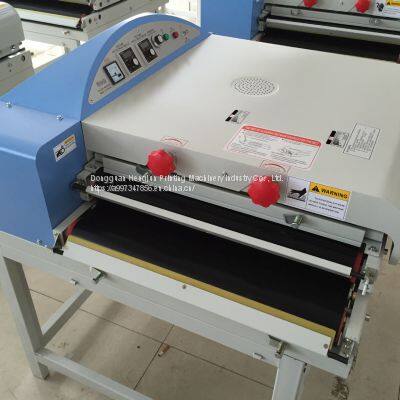

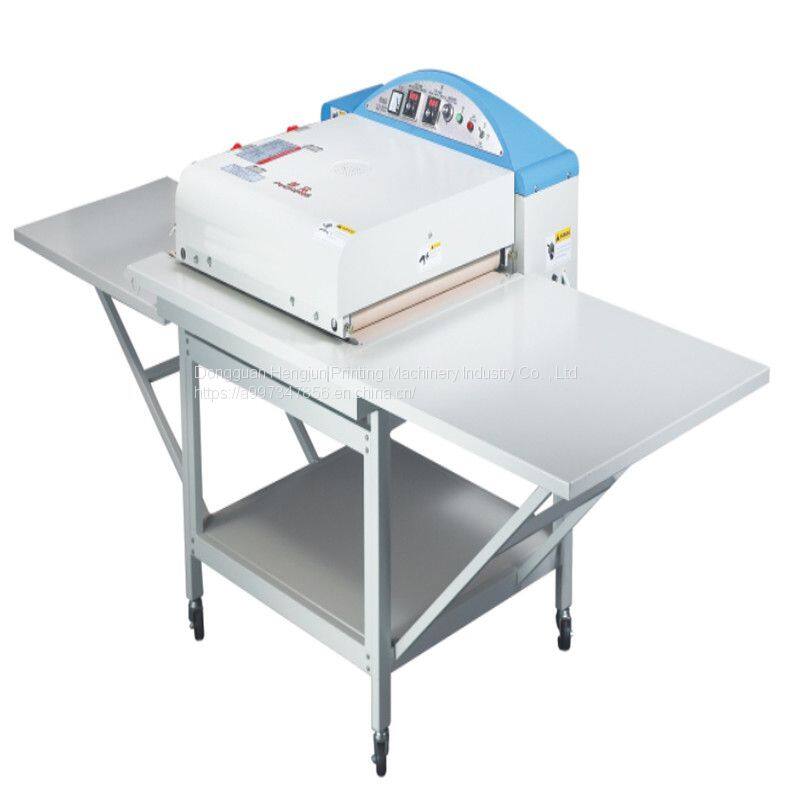

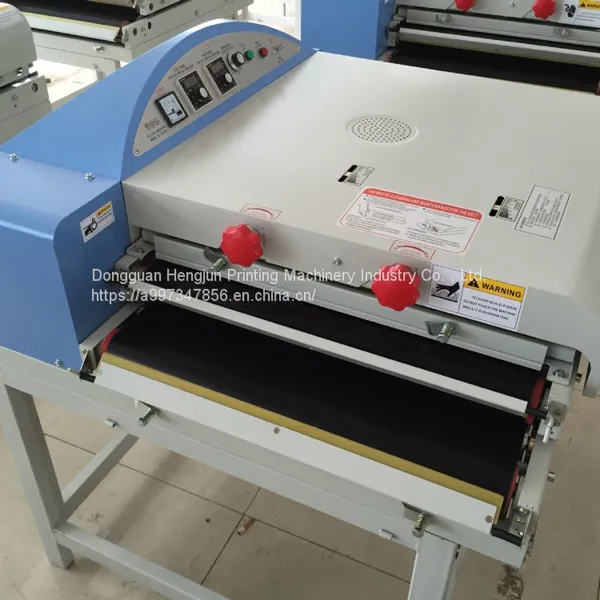

Technical parameters of 500 adhesive machine:

This series of products is a small continuous operation of the adhesive machine, suitable for garment front, waist, cloth head edge, hat, shirt and production of jacket and trousers and other hot-melt adhesive lining together necessary equipment. The machine adopts forced belt adjustment structure to make the machine more perfect and stable. The machine also has the advantages of small occupation, easy to use, strong applicability and so on, is the ideal hot melt bonding equipment for small and medium-sized garment factories.

Features: 1, automatic deviation correction, automatic delay stop

2, electric control system is simple to operate, temperature control using LIQUID crystal display

3, with multiple temperature protection device

4, reasonable structure, easy to use

5, power, high pressure, strong adhesive force

Main technical specifications and performance:

Power supply AC220V or AC380V★ Adhesive pressure 1.5 kg/cm2 ★ belt width 500 mm length 700 mm★ motor power 60 W ★ heater power 5.4 KW ★ heater adjust the temperature from room temperature to 200 ℃

★ Belt speed 8Y/min ★ dimensions 1850×1040×1000 ★ weight 140 Kg

Hot-melt bonding machine is a series of bonding machine for hot-press bonding processing of clothing fabrics and hot-melt linings, suitable for all kinds of clothing collar linings, sleeve linings, door flanging and bonding processing, the products bonded by this bonding machine are flat, resistant to washing, not easy to wrinkle, its perfect for all kinds of resin collar linings, non-woven linings bonding. It has the advantages of simple structure, beautiful appearance, low noise, convenient replacement and maintenance, and low price, so it is welcomed by the garment industry.

Features: mandatory deviation correction, no deviation; Vertical pressure is large; Automatic temperature control shutdown; Small footprint, easy to use, strong applicability.

1. The adhesive machine adopts independent two large diameter double pressure roller, double pressure system, can ensure the balance of pressure, to ensure the quality of the adhesive effect.

2. Using curved arc heater, belt and heating plate more closely, improve thermal efficiency, can adapt to the nap and all kinds of hard bonding materials.

3. Equipped with microcomputer temperature controller in upper and lower areas to monitor the heating area to achieve accurate temperature control.

4. Seamless belt without interface, suitable for high quality bonding of all kinds of cloth, and more precise, this machine optimized design of air pressure deviation system, as well as without delay stop system, prolong the life of conveyor belt, reduce energy consumption, more safe and practical.

5. The machine can monitor heating system, pressure system, belt correction system, etc., so that the maintenance of the machine is easier.

6. Strong ventilation cooling system, so that the material better cooling finalize the design, to ensure the quality of bonding.
