Six Sides Charcoal Cylinder Briquettes Machine Charcoal Stick Rods Briquette Extruding Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Distributor/Wholesaler
Year Established:
1990
Annual Export Value:
US$1 Million - US$1.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Charcoal Crusher Extruder Briquette Shaping Machine Simple Biomass Charcoal Shisha Briquette Making MachineNegotiableMOQ: 1 -
Coal And Charcoal Powder Grinder Charcoal Sticks Briquette Extruder Machine In KenyaNegotiableMOQ: 1
-
Sawdust Wood Charcoal Production Line Charcoal Briquette Extruder Making MachineNegotiableMOQ: 1
-
Rice Husk Straw Charcoal Bbq Briquette Machine Smokeless Coconut Shell Charcoal Extruder MachineNegotiableMOQ: 1
-
Small Straw Rod Making Machine Automatic Charcoal Making Machine Granulator Large Potash Fertilizer Charcoal Coal Rod MachineNegotiableMOQ: 1
Product Description
Application:

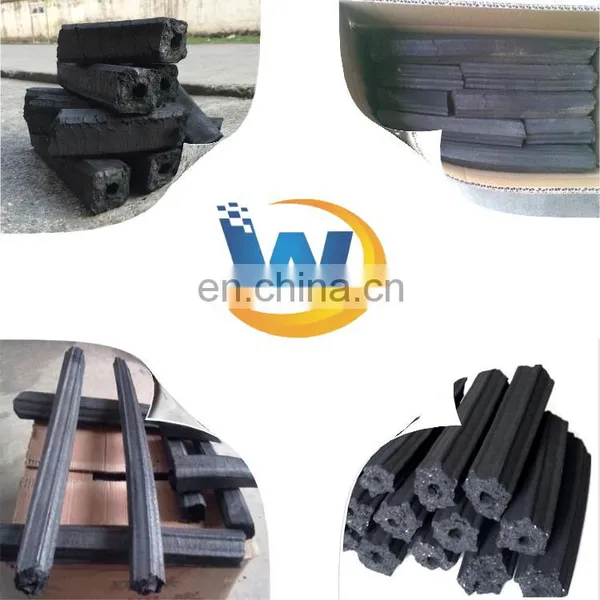

This machine is an environmental-friendly equipment, making full use and pressing coal/charcoal powder and any agro-wastes(≤ 3mm) into coal/charcoal sticks burning without smoke. Shapes of final products can be round, square, hexagon, quincunx and so on. The diameter produced by this model is 30-40mm. You can decide about how long the sticks should be. Advantages of our machine: High efficiency, energy-saving, environmental protection, make full use of some materials, thus bring big economic efficiency!
What kind of materials can be used for this machine:
1. Coal/charcoal powder from coal ash, coal mud, coke powder, coking coal and other kind of coal and charcoal. If the size of these materials is too big, you need to crush them into less than 3mm. If your raw materials have big size, it is difficult to press and shape in the process of making sticks,
2. Any kind of agro-wastes: Such as rice husks, crop stalks, wheat brans, groundnut shells, paddy straw, coffee shells, palm shells, sunflower stalk, cotton stalks and so on! Of course, sawdust and any kind of wood chips can also be used! (to use these materials, they need to be carbonized with a carbonization stove firstly! )

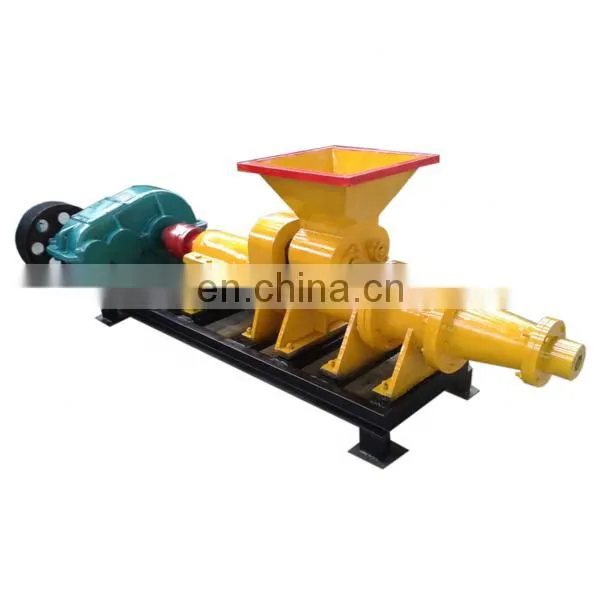

Working principle and working process of this machine:

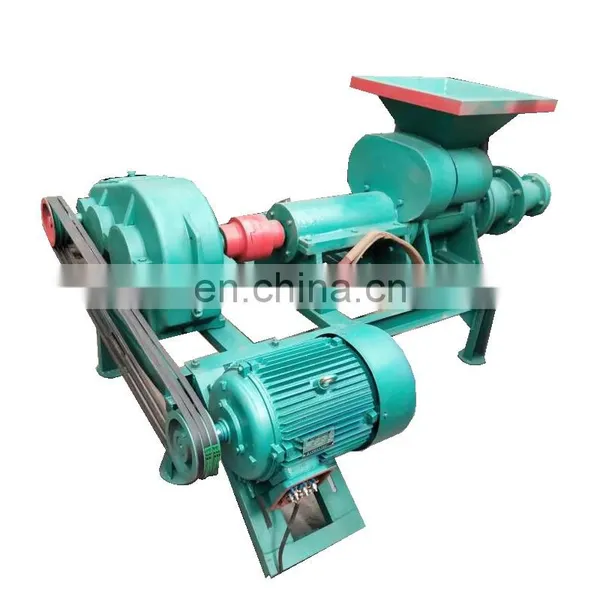

1. The motor transmits the power to transmission through the belt;
2. At the same time, the transmission output shaft transmits power to propeller through the floating coupling;
3. Then the thruster of propeller push forward coal powder through the forming die to produce high density coal/charcoal sticks!

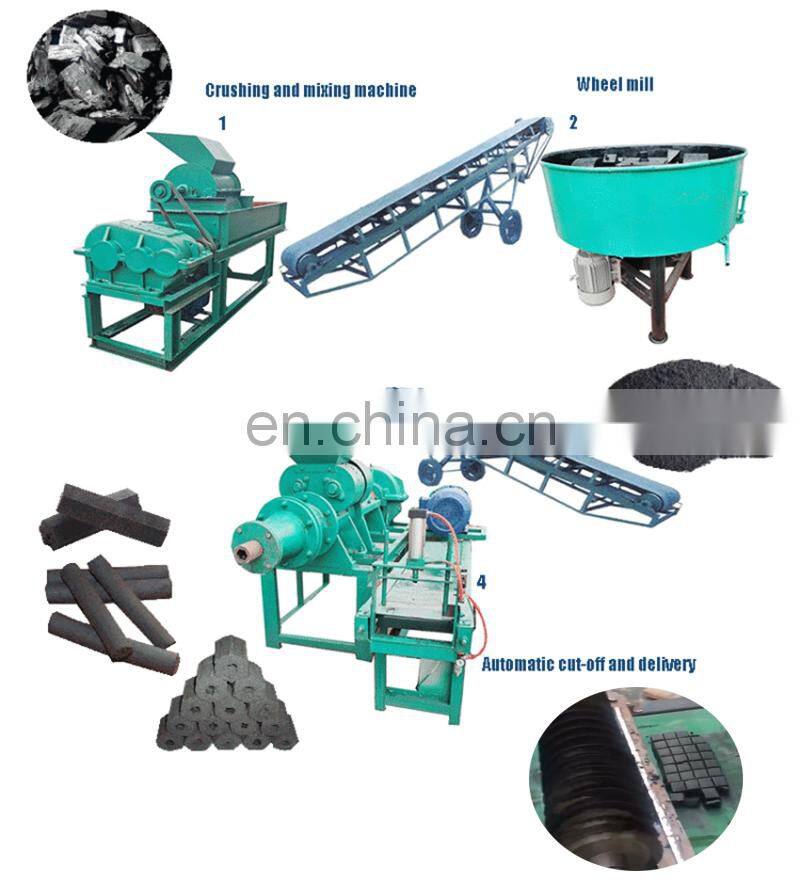

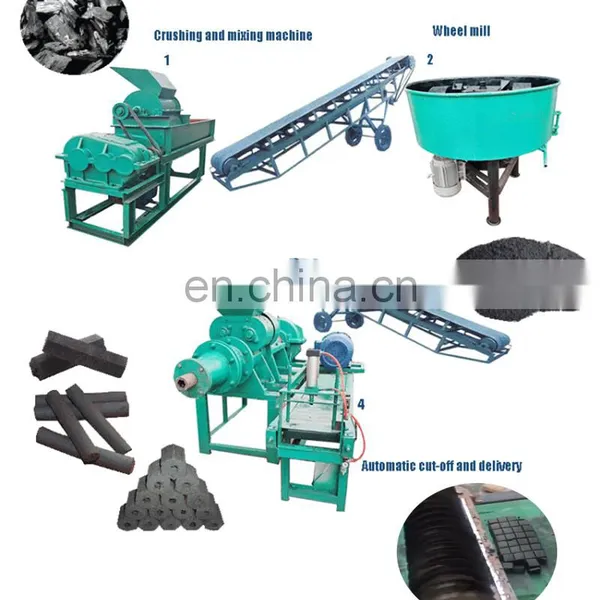

Working process:
Choose your raw materials like coal/charcoal powder or any agro-wastes(need to be carbonized firstly)— Crush them into powder form(≤ 3mm)— Put them into the machine and press with certain molds— Get your ideal sticks
As for other models of our machine:
Please note: If you are not satisfied with our this model about its capacity, we also have another model WSMB-180 with large capacity for you to choose. If you need, please contact me!
Specification
Model | WSMB140 | WSMB180 |
Capacity---Charcoal | 400-600kg/h | 600-800kg/h |
Capacity---Coal | 1-2t/h | 2-3t/h |
Diameter(mm) | 20-40 | 20-60 |
Motor power | 11 kw | 18.5kw |
Weight | 0.6 t | 0.8 t |
Dimension | 1.87*0.9*1.15 m | 2.35*0.9*1.37 m |
