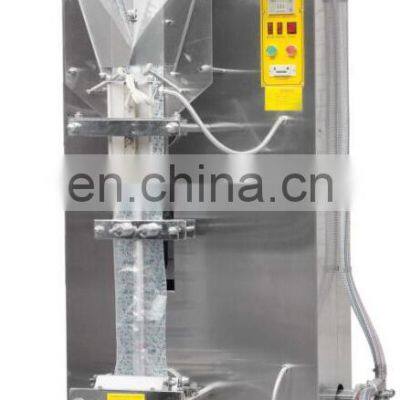

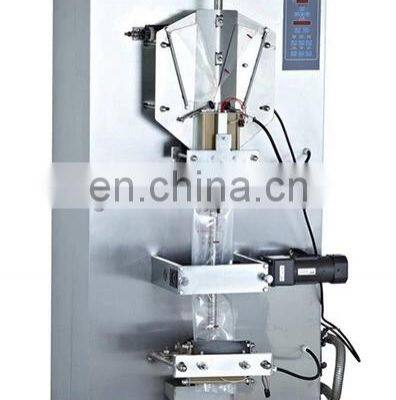

New Design Automatic Vertical 550ml Pouch 1000ml Sachet Water Filling Packing Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Distributor/Wholesaler
Year Established:
1990
Annual Export Value:
US$1 Million - US$1.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
New 1-1000ml Pouch Automatic Vertical Sachet Water Filling Packing MachineNegotiableMOQ: 1 -
Automatic Vertical 550ml Pouch 750ml Sachet 1000ml Water Filling Packing Machine for Hot SaleNegotiableMOQ: 1
-
RX-5 Automatic Liquid Juice Lolly Water Sachet Pouch Filling Packing MachineNegotiableMOQ: 1
-
New 550-1000ml Plastic Sachet Water Bag Automatic Water Packing Machine MachineNegotiableMOQ: 1
-
New Design Automatic Sachet Water Liquid Filling Packing Machine in Africa CountryNegotiableMOQ: 1
Product Overview
Automatic Juice Pouch Sachet Water Bag Liquid Filling and Sealing Machine
This machine is widely used in packaging milk, soy milk, soy sauce, vinegar, rice wine and various liquids, the whole packaging process: film sterilization, bag-making, printing date, filling, sealing, cutting, counting can be completed at one time. Heat sealing temperature can be controlled automatically. The packaging is exquisite, smooth, stainless steel structure, in line with the health requirements.
Optional: safety glass cover, ribbon coding and UV sterilization
Optional: safety glass cover, ribbon coding and UV sterilization
FEATURES AT A GLANCE
Automatic Juice Pouch Sachet Water Bag Liquid Filling and Sealing Machine
2.Using new custom pneumatic pump weighing
3.when the packaging weight is not accurate,will automatically adjust to reach the preset weight
4.no manual operation to adjust
5.saving time and cost.
Full 304ss
PLC+Touch Screen
5 star Service
PRODUCT SPECIFICATIONS
No |
Item |
Data |
1 |
Model |
THB-500 |
2 |
Bag-making length (mm) |
L: 50-150 |
3 |
Bag-making width (mm) |
W: 65-150 |
4 |
Speed (bags/h) |
1100-1300 |
5 |
Power |
220V,50HZ,1.2Kw |
6 |
Sealing Style |
Back sealing |
7 |
Filling Range |
50-550 |
8 |
Machine Size |
1050*850*2050mm |
9 |
Machine Weight |
350kg |
Because professional, trust worthy.
A cooperation, a friend for life.
Your need is our direction of progress.
Please contact me now ,I will give you the best suitable machine and solution, as well as the lowest cooperation price !
Machine Details :
Multilingual Touch Screen
Multi-language touch screen can switch various languages at the same time, and when there is a problem with the machine, it willautomatically alarm, pause the operation and show where the machine is in the problem.
Multi-language touch screen can switch various languages at the same time, and when there is a problem with the machine, it willautomatically alarm, pause the operation and show where the machine is in the problem.
Machine Features:
1.Weight measuring, bag making, filling, sealing, cutting and bags counting can be done automatically.
2.Computer PLC control and automatic alarming function.
3. English and Chinese human-machine operation interface, it is easy to operate, high degree of automation.
4.High sensitivity photoelectric eye color tracing, more accuracy.
5. Famous brand components, ensure the quality and durability of the machine.
Successful Project
Project in Sri Lanka
All sample from our customers
Project in Sri Lanka
PLC + Touch screen + Full 304 ss
1.Setting the parameters you want by touch screen
2.Put the material into the stainless steel hopper
3.Setting the parameters you want by touch screen
4.The measurement parts will measure the weight of each bag automatically

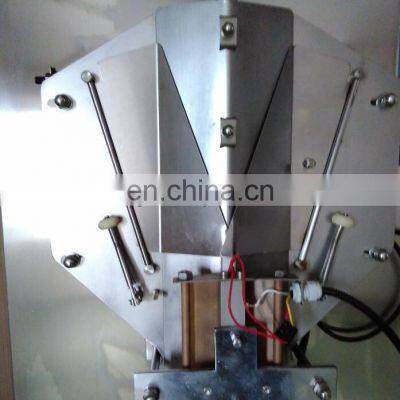

5.This device can shape the bag so that the material can directly enter the bag and seal it at the same time
6.the last step of the cutting device, which can completely seal the bag and complete the sealing
1st 1st step: Setting the parameters you want by touch screen
2nd step: Put the material into the stainless steel hopper
3rd step: The measurement parts will measure the weight of each bag automatically
4th step: The bag former will make the bag automatically5th step: The horizontal and vertical cutter device will seal the middle
and of the bag.
6th step: You will get the nicely paper or plastic bag type
and of the bag.
6th step: You will get the nicely paper or plastic bag type
