Product Description
Description of the feed machine

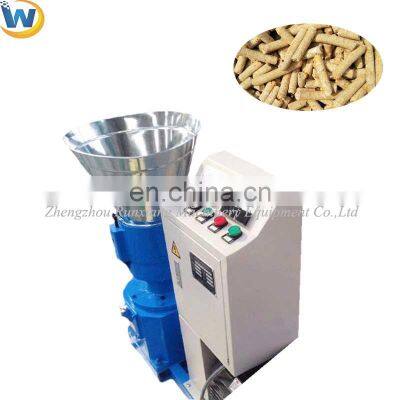

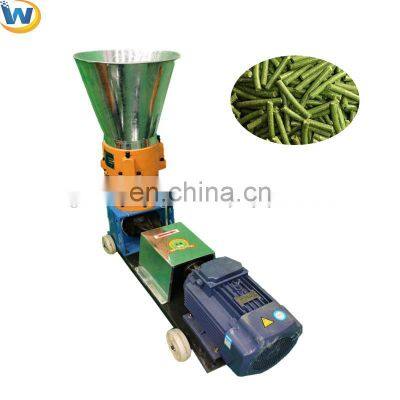

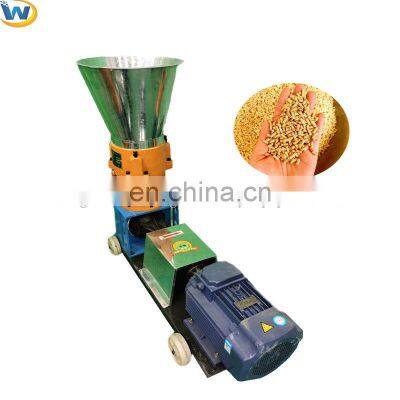

1.The flat die pellet machine is mainly used for the pressing of animal feed.
2.The device is light,easy tomove
3.ldeal choice for users of homes and small-scale farms
3.ldeal choice for users of homes and small-scale farms
4.The compressed pellet is healthier for poultry and livestock, such as chicken, duck,fish,pig,cattle etc.
Raw materials
Raw materials
The materials such as the rice husk, sunflower husk, peanut shell and other fruit shell; branch, trunk, bark and other wood waste，a variety of crop straws; rubber; cement, ash and other chemical materials.
working principle
working principle of the feed machine
Series of flat die pellet feed machine is a machine based on circular movements, motor-driven, driven pulley to the spindle and the flat transmission mode, under the influence of the friction, pressure roller rotation, the pressure roller and laminated create friction between the temperature, powder material by high temperature gelatinization and protein
coagulation degeneration, in the squeeze roller, the discharge from the die hole, through the adjustment of the cutter can be the required length of particles in the feed tray will be made by the rejection of particles by the discharge port discharge.
coagulation degeneration, in the squeeze roller, the discharge from the die hole, through the adjustment of the cutter can be the required length of particles in the feed tray will be made by the rejection of particles by the discharge port discharge.
Specification
Technical details
Pelletizing is the process of making waste materials into solid fuel. Wood pellet can be made from any type of Agro-Forestry waste: Groudnut-shell, Sugarcane Biogases,Caster Shells/Stalk, Sawdust,Coffee Husk,Peddy Straw, Sunflower Stalk, Cotton Stalks, Cotton Stalks, Tobacco waste, Mustard Stalk, Jute Waste, Bamboo Dust, Tea waste, Wheat Straw, Palm husk, Soybeans husk, Coir Pitch Barks/Straws, Rice Husks, Forestry waste, Wood Chips and many other Agro wastes. But the content should be less than 12%, grain size is below 5*5mm.
Technical information
Model | Power | Capacity(kg/h) | Size(cm) | Weight(kg) |
WSKL-125 | 2.2kw-3kw | 80-100 | 63*27*75 | 35 |
WSKL-150 | 3kw | 90-150 | 65*27*78 | 40 |
WSKL-200 | 7.5kw | 200-300 | 85*35*91 | 110 |
WSKL-230 | 11kw | 300-400 | 98*38*94 | 150 |
WSKL-260 | 15kw | 400-600 | 108*42*104 | 190 |
WSKL-300 | 22kw | 600-800 | 130*51*121 | 220 |
WSKL-360 | 22kw | 800-900 | 140*56*160 | 350 |
WSKL-400 | 30kw | 1000-1200 | 150*61*180 | 600 |
