Energy Saving No Pollution Horizontal Carbonization Kiln Furnace Activated Charcoal Making Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Distributor/Wholesaler
Year Established:
1990
Annual Export Value:
US$1 Million - US$1.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Furnace Filters Activated Carbon Reactivation Furnace Shisha Charcoal Making MachineNegotiableMOQ: 1 -
Multifunction Fully Automatic Temperature Control Poultry Chicken Goose Duck Egg Incubator Solar Egg IncubatorNegotiableMOQ: 1
-
Full Automatic Plastic PET Bottle Blowing Making Machine / Injection Molding Machine PlasticNegotiableMOQ: 1
-
Automatic Bottle Preform Moulding Making Machine PE PP PET Plastic Injection Molding MachineNegotiableMOQ: 1
-
Factory Hot Sale PP PE PET Plastic Injection Molding Machine With Best PriceNegotiableMOQ: 1
Product Description
Horizontal carbonization machine
It adopts the advanced carbonized technology heat flow, carbonized rate increased significantly, The carbonized rate is 99%.And the operation is very convenient, good safety, high production efficiency, can save a lot of energy, good environmental protection performance.
Working Principle

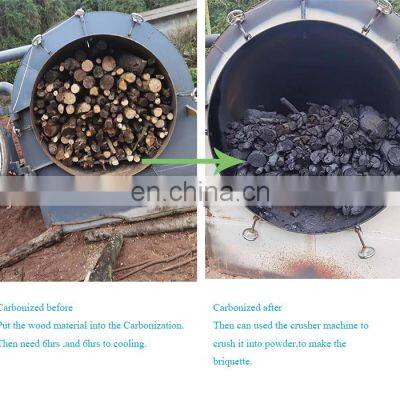

To feed the raw material into the carbonization furnace and lock the furnace door, finaly sealing the furnace. Preheating and drying the raw material: use the wood or other fuel heat the raw material inside the furnace, from room temperature slowly heat up to 220-250℃, this process time is about 1.2 to 2.0 hours (the specific heating-up time is mainly depend on raw material moisture content, density, diameter size,etc), discharge water inside the raw material and the air in the inner tank. Anaerobic carbonization: When the temperature inside the carbonization furnace increase to there is little yellow smoke discharged from the smoke tube ( hydrogen,oxygen and other volatile substances). it means start the carbonization process, then we can recovery of combustible flue gas into furnace ignition, Adjust the intake combustible flue gas amount, keep the temperature in the inner tank about 300-550℃, 2.0-3.5 hours (the specific temperature and carbonization time is mainly depend on raw material moisture content, density, diameter size and carbonization degree,etc). When it stops burning naturally inside the furnace, the carbonization is finished. Cooling and discharging the carbon: when the carbonization is finished, we need to open the cooling water valve to cool the inner tank, when the temperature inside of the inner tank reduce to below 50℃, then we can open the furnace door and discharging the carbon. The heating-up time and carbonization time cooling time of this machine need 12 hours
The carbonization stove is a new designed machine for chargin the wood briquette, bamboo, wood log, coconut shell and so on into charcoal. It is selling well for its easy operating, high capacity, good quality. Once carbonization need 6-8 hours, smokeless and the raw materials can be wood log or other flammable goods.
Specification
Model | RXTH-04 | RXTH-08 | RXTH-14 |
weight | 2.5t | 4.5t | 6t |
size | 3*1.7*2.1m | 4.5*1.9*2.3m | 5*2.1*2.5m |
Carbonization time | 12h | 12h | 12h |
capacity | 800-1000kg | 1800-2000kg | 2800-3000kg |
Volume | 4CBM | 8CBM | 14CBM |
