Home > Products > New Arrival > 50-120kg/h Hydraulic Sesame Oil Extraction Machine Olive Oil Press Machine Auto Oil Press Machine
50-120kg/h Hydraulic Sesame Oil Extraction Machine Olive Oil Press Machine Auto Oil Press Machine
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Sesame Oil Press/hydraulic Oil Pressing Machine/Hydraulic Oil Cold Press Machine Cold Press Oil Machine
-
.small Electric Cocoa Butter Hydraulic Oil Pressing Machine Mini Oil Press Machine
-
Newest Large Capacity Cocoa Butter Hydraulic Oil Press/sesame Hydraulic Oil Presser Press Oil Machine
-
CE Certification Cold Oil Press Machine/hydraulic Oil Press Machine Commercial Oil Press Machine
-
Hydraulic Shea Nut Oil Press Machine Hydraulic Vegetable Seed Oil Press Avocado Oil Press Machine
-
Grain Grinding Price Home Used Flour Grinder Machine Grain Flour Mill Machine
Product Description
Product description:
1. This machine is very suitable for family using and small scale oil factories. Which can press olive, sesame , cocoa beans, walnuts, almonds, and other high oil crops.
2. After pressed, the oil is very pure with good smell, can be edible for people directly. The oil can reach the healthy standard.
Raw material:
Peanut, soyabean ,Rapeseed ,Cottonseed, Sesame, Sunflower seed, flax ,castor, corn germ,Tea seed, palm kernel, shea, Shea fruit.
Pomegranate seeds , coffee beans,cocoa beans, hodgsonia, Grape seed etc.More than 40 kinds oil crops.
Product advantages：
1. Saving Labor: It only needs one person to operate the Automatic Screw oil press, which will save 60% labor for equal output.
2. Widely Used: This Automatic Screw oil press can press more than 20 kinds of oil crops, such as olive, small olive, palm, oil sunflower, soybean, peanut, sesame, vegetable seeds, coconut and flax seed.
3. Pure Oil Quality: The vacuum oil filtering is used to remove residue to ensure the pure oil quality and meet the standards of health quarantine.
4. Small Land-Using: An area of 10m²-20m² workshop can meet the need of production. suitable for medium-small sized oil extruding workshops or professional farmers.
Working principle：

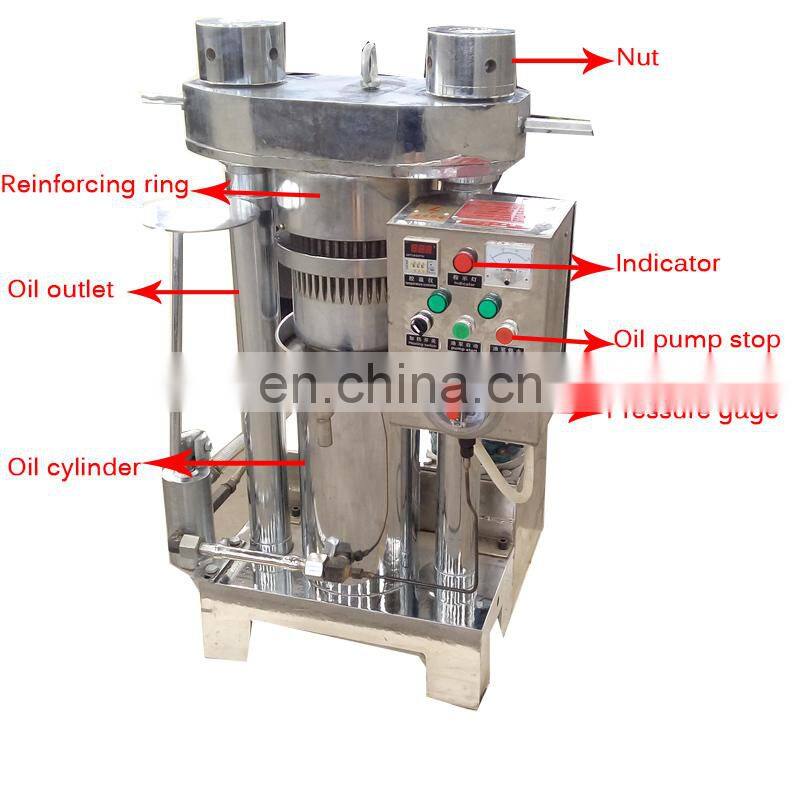

1.Main engine:Main engine includes base, upright, top plate, oil drip pan nut and so on , it is one of the main parts. Firstly the oil material is put into the assembly of the press boring ,then it being droved up by the oil cylinder piston ,oil will outflow from the gap of press boring ,and then pass the oil drip pan to the drum for oil storage.
2.Hydraulic System :Hydraulic system is the main power force of this machine, it includes transmission shaft, turbine, worm gear, gear pump, high pressure pump, overflow valve; super high pressure safety valve; hand-operated valve; seamless steel tube; pipeline connect and other spare parts. This machine adopts the advanced power pack of the world, and compared with two plunger pump, it is faster , higher pressure and can resist higher temperature, it can continue working when the oil temperature is above 65 but needn’t cooling unit.
3.Electronic system:Electronic system is the most advanced part of this machine, it is fully automatic, easy to operate, and there’s no special request to the operator, so this machine is particularly suitable for peasant.
This machine is composed of motor, volt meter, pressure gauge, power insurance and so on.
Technical information：
Model | WSGH-180 | WSGH-260 | WSGH-300 |
Average productivity | 20kg/h | 50kg/h | 100kg/h |
Power | 1.1kw | 1.5kw | 3kw |
Heating temperature | 2kw | 3kw | 3kw |
Weight | 520kg | 780kg | 1500kg |
Size | 750*800*1200mm | 900*800*1450mm | 1030*880*1700mm |
