Stainless steel replacement part for still suction filter

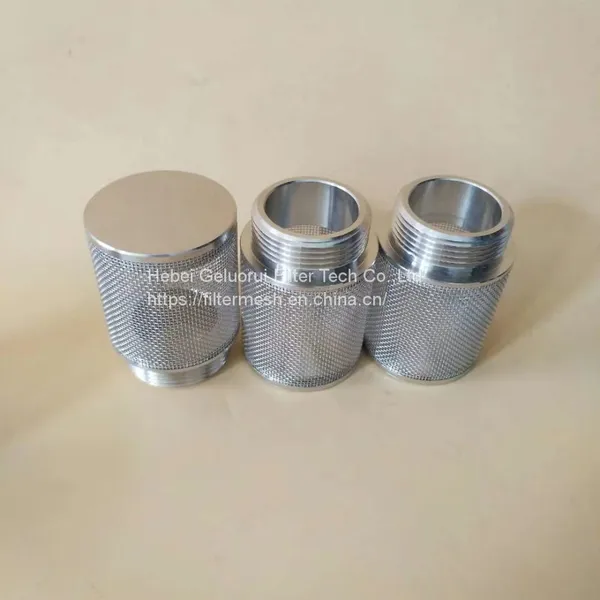

Stainless steel  still suction filter

The Suction Series Strainer promotes a compact design with multiple configurations to fit the exact end use application.

The Standard Suction Strainer has a molded 304 Stainless Screen.A Stainless steel Body with 304 Stainless Screen is available.

Suction Strainers have a Female Friction Fit and are called out according to the size of a Female NPT fitting.

Suction Strainers have a true threaded Female NPT connection.

Raw Material of wire  and Threading .

1.4301/SUS304/AISI304/STS304

1.4306/SUS304L/AISI304/STS304L

1.4401/SUS316/AISI316/STS316

1.4404/SUS316L/AISI316L/STS316L.

Size: Stainless steel Body Options 1/4, 3/8, 1/2, 3/4, 1, 1-1/2

Female NPT ,1/4, 3/8 Hose Barb

Stainless steel Body Options 1/2, 3/4, 1 Female NPT

Mesh normal size :12,16,18 ,20, 30, 40 (Standard), 60,80 Mesh

Layer : single layer or double layers are available

Single screen

Single mesh  Thread 1” 10mesh

Single mesh  Thread 1” 15mesh

Single mesh  Thread 1/2” 15mesh

Single mesh  Thread 3/4” 15mesh

Double Mesh

Suction Filter  Thread 3/8” 30mesh

Suction Filter  Thread 3/4” 30mesh

Suction Filter  Thread 1” 30mesh

Suction Filter  Thread 1/2” 30mesh

Suction Filter  Thread 3/8” 60mesh

Suction Filter  Thread 3/4” 60mesh

Suction Filter  Thread 1” 60mesh

Suction Filter  Thread 1/2” 60mesh

Glory suction Strainer Elements are manufactured using stainless steel wire screen media. Suction strainer elements are only intended to protect hydraulic pumps against catastrophic failure caused by coarse contaminants. Suction strainer elements should be inspected and cleaned regularly. Suction strainer elements should not be used as the only filtration elements in a hydraulic system. Pressure filters and return line filters, with reasonable dirt holding capacity, must be installed to provide protection against component damage caused by fine contaminants.For service and used to manufacture of spray finishing equipment. atomizing nozzles and air caps and spray guns. the industrial and automotive spray finishing industry.
