Pillow Block Bearings UKFC205;H2305 UKFC206;H2306 UKFC207;H2307 UKFC208;H2308 UKFC209;H2309 UKFC210;H2310 UKFC211;H2311 UKFC212;H2312 UKFC213;H2313 UKFC215;H2315 UKFC216;H2316 UKFC217;H2317 UKFC218;H2318

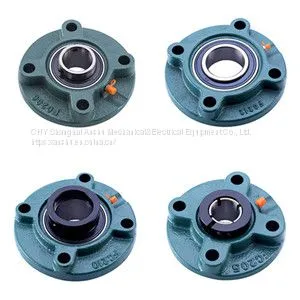

Pillow Block Bearings UKFC205;H2305 UKFC206;H2306 UKFC207;H2307 UKFC208;H2308 UKFC209;H2309 UKFC210;H2310 UKFC211;H2311 UKFC212;H2312 UKFC213;H2313 UKFC215;H2315 UKFC216;H2316 UKFC217;H2317 UKFC218;H2318 thumbnail-1
Pillow Block Bearings UKFC205;H2305 UKFC206;H2306 UKFC207;H2307 UKFC208;H2308 UKFC209;H2309 UKFC210;H2310 UKFC211;H2311 UKFC212;H2312 UKFC213;H2313 UKFC215;H2315 UKFC216;H2316 UKFC217;H2317 UKFC218;H2318 thumbnail-2
Pillow Block Bearings UKFC205;H2305 UKFC206;H2306 UKFC207;H2307 UKFC208;H2308 UKFC209;H2309 UKFC210;H2310 UKFC211;H2311 UKFC212;H2312 UKFC213;H2313 UKFC215;H2315 UKFC216;H2316 UKFC217;H2317 UKFC218;H2318 thumbnail-3
Pillow Block Bearings UKFC205;H2305 UKFC206;H2306 UKFC207;H2307 UKFC208;H2308 UKFC209;H2309 UKFC210;H2310 UKFC211;H2311 UKFC212;H2312 UKFC213;H2313 UKFC215;H2315 UKFC216;H2316 UKFC217;H2317 UKFC218;H2318 thumbnail-4
Pillow Block Bearings UKFC205;H2305 UKFC206;H2306 UKFC207;H2307 UKFC208;H2308 UKFC209;H2309 UKFC210;H2310 UKFC211;H2311 UKFC212;H2312 UKFC213;H2313 UKFC215;H2315 UKFC216;H2316 UKFC217;H2317 UKFC218;H2318 thumbnail-5
Pillow Block Bearings UKFC205;H2305 UKFC206;H2306 UKFC207;H2307 UKFC208;H2308 UKFC209;H2309 UKFC210;H2310 UKFC211;H2311 UKFC212;H2312 UKFC213;H2313 UKFC215;H2315 UKFC216;H2316 UKFC217;H2317 UKFC218;H2318 photo-1
Pillow Block Bearings UKFC205;H2305 UKFC206;H2306 UKFC207;H2307 UKFC208;H2308 UKFC209;H2309 UKFC210;H2310 UKFC211;H2311 UKFC212;H2312 UKFC213;H2313 UKFC215;H2315 UKFC216;H2316 UKFC217;H2317 UKFC218;H2318 photo-2
Pillow Block Bearings UKFC205;H2305 UKFC206;H2306 UKFC207;H2307 UKFC208;H2308 UKFC209;H2309 UKFC210;H2310 UKFC211;H2311 UKFC212;H2312 UKFC213;H2313 UKFC215;H2315 UKFC216;H2316 UKFC217;H2317 UKFC218;H2318 photo-3
Pillow Block Bearings UKFC205;H2305 UKFC206;H2306 UKFC207;H2307 UKFC208;H2308 UKFC209;H2309 UKFC210;H2310 UKFC211;H2311 UKFC212;H2312 UKFC213;H2313 UKFC215;H2315 UKFC216;H2316 UKFC217;H2317 UKFC218;H2318 photo-4
Pillow Block Bearings UKFC205;H2305 UKFC206;H2306 UKFC207;H2307 UKFC208;H2308 UKFC209;H2309 UKFC210;H2310 UKFC211;H2311 UKFC212;H2312 UKFC213;H2313 UKFC215;H2315 UKFC216;H2316 UKFC217;H2317 UKFC218;H2318 photo-5
US$ 0.1 - 10 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
CHY
Place of Origin:
China
Model Number:
UKFC205;H2305 UKFC206;H2306 UKFC207;H2307 UKFC208;H2308 UKFC209;H2309 UKFC210;H2310 UKFC211;H2311 UKFC212;H2312 UKFC213;H2313 UKFC215;H2315 UKFC216;H2316 UKFC217;H2317 UKFC218;H2318
Contact Supplier Request Quote Chat Now
CHY Shanghai Anshu Mechanical&Electrical Equipment Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
10 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name CHY
Place of Origin China
Model Number UKFC205;H2305 UKFC206;H2306 UKFC207;H2307 UKFC208;H2308 UKFC209;H2309 UKFC210;H2310 UKFC211;H2311 UKFC212;H2312 UKFC213;H2313 UKFC215;H2315 UKFC216;H2316 UKFC217;H2317 UKFC218;H2318
Bore Size 10, 50

Spherical Bearings

Model Size ( mm ) Bolt mm Bearing Bearing housing W.T(kg)
d a p (e) i s j k g f z t B1
UKFC205;H2305 20 115 90 63.6 10 12 6 7 21 70 29.5 34 35 M10 UK205;H2305 FC205 0.93
UKFC206;H2306 25 125 100 70.7 10 12 8 8 23 80 31 36.5 38 M10 UK206;H2306 FC206 1.24
UKFC207;H2307 30 135 110 77.8 11 14 8 9 26 90 33.5 41 43 M12 UK207;H2307 FC207 1.6
UKFC208;H2308 35 145 120 84.8 11 14 10 9 26 100 35.5 45.5 46 M12 UK208;H2308 FC208 1.92
UKFC209;H2309 40 160 132 93.3 10 16 12 14 26 105 36 44.5 50 M14 UK209;H2309 FC209 2.65
UKFC210;H2310 45 165 138 97.6 10 16 12 14 28 110 37.5 47.5 55 M14 UK210;H2310 FC210 2.96
UKFC211;H2311 50 185 150 106.1 13 19 12 15 31 125 41.5 51 59 M16 UK211;H2311 FC211 4.02
UKFC212;H2312 55 195 160 113.1 17 19 12 15 36 135 48 61.5 62 M16 UK212;H2312 FC212 4.77
UKFC213;H2313 60 205 170 120.2 16 19 14 15 36 145 49 60.5 65 M16 UK213;H2313 FC213 5.41
UKFC215;H2315 65 220 184 130.1 18 19 16 18 40 160 53.5 67.5 73 M16 UK215;H2315 FC215 7.25
UKFC216;H2316 70 240 200 141.4 18 23 16 18 42 170 57 72.5 78 M20 UK216;H2316 FC216 8.9
UKFC217;H2317 75 250 208 147.1 18 23 18 20 45 180 59 74.6 82 M20 UK217;H2317 FC217 10.6
UKFC218;H2318 80 265 220 155.5 22 23 18 20 50 190 64.5 83.5 86 M20 UK218;H2318 FC218 12.54


The outer spherical ball bearing is actually a variant of the deep groove ball bearing. Its characteristic is that its outer ring outer diameter surface is spherical, which can be fitted into the corresponding concave spherical surface of the bearing seat to play the role of centering. The outer spherical bearing is mainly used to bear the radial and axial combined load mainly based on radial load, and generally it is not suitable to bear the axial load alone. Its basic performance is similar to that of deep groove ball bearings, but since such bearings are mostly used in relatively rough machines, the installation positioning is not accurate enough, the axial alignment of the shaft and the seat hole is poor, and the accuracy of the bearing itself is not high enough. Some structures are also rough, so the actual performance of the performance is lower than the deep groove ball bearings of the same specifications. Such bearings can be fitted with inner and outer rings, respectively. The outer spherical bearing is a bearing unit that combines a rolling bearing with a bearing housing. Most of the outer spherical bearings are made of a spherical surface and are mounted together with a bearing housing with a spherical inner hole. The structure is various, and the versatility and interchangeability are good. At the same time, these bearings are also designed with a certain degree of self-alignment, easy to install, and have a double-structured sealing device that can work in harsh environments. The bearing housing is typically cast. Commonly used seats are vertical seat (P), square seat (F), boss square seat (FS), boss circular seat (FC), diamond seat (FL), ring seat (C), slider seat（T)etc.
