High Quality Table Panel Saw Melamine Board Wood Cutting and Edging Machine for Nesting Cnc Woodworking Furniture Cabinet

High Quality Table Panel Saw Melamine Board Wood Cutting and Edging Machine for Nesting Cnc Woodworking Furniture Cabinet photo-1
High Quality Table Panel Saw Melamine Board Wood Cutting and Edging Machine for Nesting Cnc Woodworking Furniture Cabinet photo-2
High Quality Table Panel Saw Melamine Board Wood Cutting and Edging Machine for Nesting Cnc Woodworking Furniture Cabinet photo-3
High Quality Table Panel Saw Melamine Board Wood Cutting and Edging Machine for Nesting Cnc Woodworking Furniture Cabinet photo-4
High Quality Table Panel Saw Melamine Board Wood Cutting and Edging Machine for Nesting Cnc Woodworking Furniture Cabinet photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Business Service (Transportation, finance, travel, Ads, etc)
Year Established:
1992
Annual Export Value:
US$1 Million - US$1.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Product Description

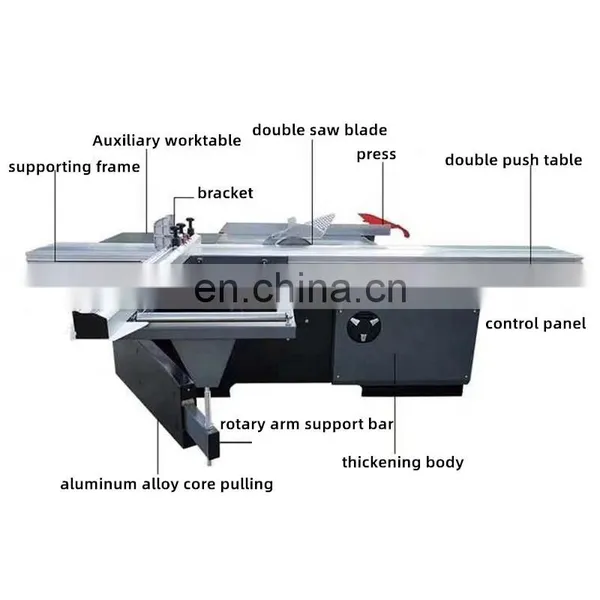

Sliding table saw sliding table saw machine table panel saw

We've produced many types of sliding table saw.Basically,we have three series. They are F series,H series and S series.

The configuration of each series is the same.The difference is dimensions of sliding table.The dimensions most customers buy are 2.8m,3.0m and 3.2m (It can also be customized according to your needs.)And other difference is 90 degree or 45 degree.

Features:

1. Push table is suitable for processing all kinds of density board, wood-based board, fiberboard, flower board, ABS board, PVC board, plexiglass board and other wood structure, similar hardness plate.

2. The lengthened weighted fuselage, stable fuselage, precise cutting plate, reduce the error caused by various jitter

3. Saw shaft after quenching treatment, its hardness and toughness have been improved.

4. Movable table guide rail for imported plated round rod structure, high positioning accuracy, long service life. 5.Our cast iron table is thickened, and the ruler is widened and thickened. The blade is raised and lowered by turbine rotary rod, and the plate will not collapse.

6. The body adopts plastic spraying process, beautiful, wear-resistant and paint-resistant.

7. The motor adopts full copper wire motor, which is more durable than aluminum wire motor.



Mode

Parameter
Mode

Parameter
Dimensions sliding table
(1600-4200)×325/375mm

MAX. Cutting length

1600-4200mm
MAX. Cutting width

1250mm

Max.cutting Thicknss Thickness Thickness

80mm

Max. Cutting Thickness at 45 degress
60mm

Saw blade  Diameter

300 mm / 30mm

Scoring saw blade diameter

120 mm /20mm
Main saw spindle speed

4000-6000 rpm
Scoring saw spindle speed

7000-8000 rpm
Main saw shaft diameter

30mm

Motor power
4.0+0.75KW
Tilling saw blade

90°/0-45°

Weight

550-800kg

Overall dimensions

(1600-4200)x1100x1200m



High quality  table panel saw melamine board wood cutting and edging machine for nesting cnc woodworking furniture cabinetHigh quality  table panel saw melamine board wood cutting and edging machine for nesting cnc woodworking furniture cabinetHigh quality  table panel saw melamine board wood cutting and edging machine for nesting cnc woodworking furniture cabinetHigh quality  table panel saw melamine board wood cutting and edging machine for nesting cnc woodworking furniture cabinetHigh quality  table panel saw melamine board wood cutting and edging machine for nesting cnc woodworking furniture cabinetHigh quality  table panel saw melamine board wood cutting and edging machine for nesting cnc woodworking furniture cabinetHigh quality  table panel saw melamine board wood cutting and edging machine for nesting cnc woodworking furniture cabinetHigh quality  table panel saw melamine board wood cutting and edging machine for nesting cnc woodworking furniture cabinetHigh quality  table panel saw melamine board wood cutting and edging machine for nesting cnc woodworking furniture cabinetHigh quality  table panel saw melamine board wood cutting and edging machine for nesting cnc woodworking furniture cabinet

Company Information

High quality  table panel saw melamine board wood cutting and edging machine for nesting cnc woodworking furniture cabinet

Packaging & Shipping

Logistics support: express, air, sea

High quality  table panel saw melamine board wood cutting and edging machine for nesting cnc woodworking furniture cabinet

FAQ

1.With what guarantee?

All the product is guarantee for one year, and if you need parts when it damaged you can contact us to change.

2.How to ship?

Shipping method depends on your choices. We can support door delivery by air to airport by DHL, Fedex or UPS, and also we can do shipment to your sea port as well. The cost is different according to your location and the machine model you choose, you can ask for more courier cost details after deciding which machine to buy.

3.How to pay?

There are many payment methods available  such as Alibaba, credit cards, T/T, paypal, offline payments (bank transfers).

You can choose a method which is the most convenient for you

4.Return policy

If you want to exchange the items received, you must contact us within 3 days of the receipt of your order. And you should pay the additional shipping fees incurred and the items returned should be kept in their original status.

Since your feedback is very important to our business`s development, we sincerely invite you to leave positive feedback for us if you are satisfied with our product and service. It`ll just take you 1 minute. Thank you!
