Solar System Off-grid Energy Storage System 120W 50/60/80 Ah for Home Farm Island Outdoor 4G Router Lighting Surveillance Camera

Solar System Off-grid Energy Storage System 120W 50/60/80 Ah for Home Farm Island Outdoor 4G Router Lighting Surveillance Camera thumbnail-1
Solar System Off-grid Energy Storage System 120W 50/60/80 Ah for Home Farm Island Outdoor 4G Router Lighting Surveillance Camera thumbnail-2
Solar System Off-grid Energy Storage System 120W 50/60/80 Ah for Home Farm Island Outdoor 4G Router Lighting Surveillance Camera thumbnail-3
Solar System Off-grid Energy Storage System 120W 50/60/80 Ah for Home Farm Island Outdoor 4G Router Lighting Surveillance Camera thumbnail-4
Solar System Off-grid Energy Storage System 120W 50/60/80 Ah for Home Farm Island Outdoor 4G Router Lighting Surveillance Camera thumbnail-5
Solar System Off-grid Energy Storage System 120W 50/60/80 Ah for Home Farm Island Outdoor 4G Router Lighting Surveillance Camera photo-1
Solar System Off-grid Energy Storage System 120W 50/60/80 Ah for Home Farm Island Outdoor 4G Router Lighting Surveillance Camera photo-2
Solar System Off-grid Energy Storage System 120W 50/60/80 Ah for Home Farm Island Outdoor 4G Router Lighting Surveillance Camera photo-3
Solar System Off-grid Energy Storage System 120W 50/60/80 Ah for Home Farm Island Outdoor 4G Router Lighting Surveillance Camera photo-4
Solar System Off-grid Energy Storage System 120W 50/60/80 Ah for Home Farm Island Outdoor 4G Router Lighting Surveillance Camera photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Buying Office
Year Established:
2013
Annual Export Value:
US$50 Million - US$100 Million
Contact Supplier Request Quote Chat Now
Shenzhen Aoshi Zhongan Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Product Description
120W 50/60/80 Ah Solar System Off-grid Energy Storage System Lithium Battery for Home Farm Island Outdoor 4G Router Lighting Surveillance Camera DC 12V OUT PUT
Features :
120W DC-18V OUTPUT Monocrystalline silicon solar power panels
50/60/80 AH Power Grade Ternary Lithium Energy Storage Battery
DC OUT PUT 12V 5A Compatible with commercially available 12V powered surveillance cameras
Built-in solar power dedicated10A PWM Power Management Controller
Overload, reverse connection, over-discharge, over-charge, short-circuit, backflow prevention, etc. Effective battery life extension and protection.
2-in-1 solar angle adjustment and surveillance camera mounting bracket.
Outdoor Use , Waterproof IP66
Multi-purpose
Can be used in marinas, islands, mountains, pastures, etc. where there is no electricity supply. No need to install power cables, easy to install and ready to use.
EASY USE
In extreme conditions where there is not enough sunlight to generate electricity, a fully charged battery can provide up to 96 hours of uninterrupted surveillance power for the accompanying camera.（The above data comes from the test under 25℃ environment, for reference only. Please note: Low temperature environment will lead to power decay, please refer to the actual use time.）

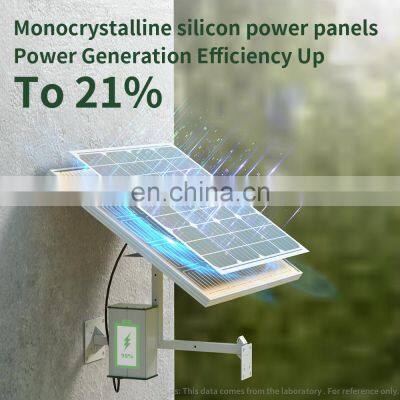

120W Monocrystalline silicon solar power panels
The solar panels are made using a monocrystalline silicon process. High power generation efficiency, providing up to 21% photovoltaic conversion efficiency. Can quickly replenish power for storage batteries.
(NOTE:Solar panel power generation is affected by weather and latitude, please refer to the actual power generation, the above data is collected from the laboratory.)

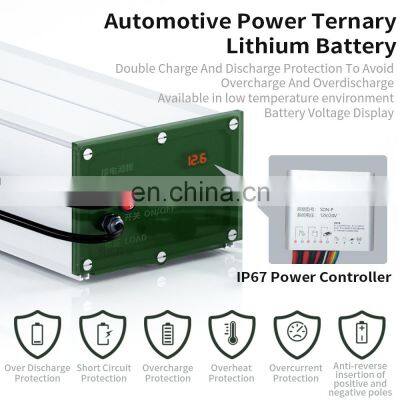

50/60/80 Ah Trithium Energy Storage Battery
DC OUT PUT 12V 5A Compatible with commercially available 12V powered surveillance cameras
Built-in solar power dedicated10A PWM Power Management Controller
Overload, reverse connection, over-discharge, over-charge, short-circuit, backflow prevention, etc. Effective battery life
extension and protection.
Battery voltage LED display to tell at a glance how much power is left
NOTE(The above picture is only to show the effect, the number of batteries installed inside, please prevail in kind)

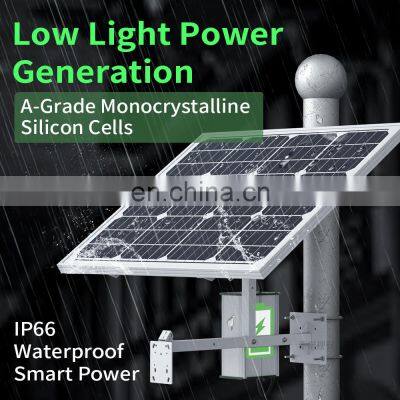

Multiple mounting options
Use special bracket for multiple environment installation.
IP66 Outdoor Waterproof
Outdoor security camera with waterproof body and power adapter, work temperature minus -20 degrees Celsius to 60 degrees Celsius, work well on the heavy rains or snows days.

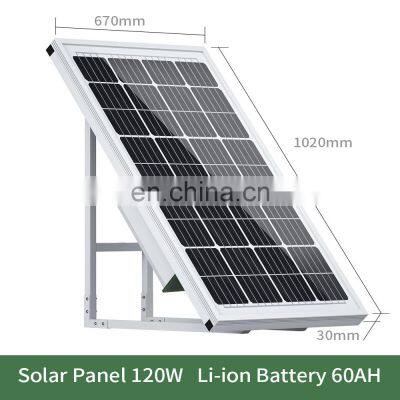

Size &Product Details:

Package LIST:
1Pcs * 120W Solar panel
1Pcs * 50/ 60/80 Ah Ternary Lithium Energy Storage Battery mounting bracket.
2Pcs *Metal Hoop
Specification
Model
SP120-50/60/80
Solar Panel Cell Process
Monocrystalline Silicon Whole cells
Rated Maximum Power(Pmax) [W]
120
Open Circuit Voltage(Voc) [V]
21.6
Maximum Power Voltage(Vmp) [V]
18
Short Circuit Current(Isc) [A]
7.75
Maximum Power Current(Imp) [A]
6.86
Module Efficiency [%]
21.7
Max system voltage [V]
1000
Panel Dimension [mm]
1020*670*30
Power Tolerance
0~+3W
Temperature Coefficient of Isc(α_Isc)
+0.048%/℃
Temperature Coefficient of Voc(β_Voc)
-0.27%/℃
Temperature Coefficient of Pmax(γ_Pmp)
-0.35%/℃
Operating Temperature
-25℃~70℃
STC
Irradiance 1000W/m²,ﾠcell temperature 25℃, AM1.5G
Battery Type
Ternary Lithium Batteries
Nominal Capacity [Ah]
50/60/80
Power Management Controller
Built-in PWM
Power and voltage display
Real-time Battery Voltage LED Display
DC IN
12.6V
Solar Power Input
DC-18V 2 Pin Aviation Cable Plug
DC OUT
12V 5A
Protective Features
Overload, reverse connection, overdischarge, overcharge, short circuit, backflow prevention, etc.
Operating Temperature
-25℃~50℃
Nominal Voltage
11.1V
Intemal Rcsistance
Full Charged Battery 25℃
Capacity Affected by Tempcrature (10 hour)
40℃(104°F)
102%
25℃ (77°F)
100%
0℃ (32°F)
90%
-15℃ (5°F)
70%
Self-Discharge 25℃ Capacity
after 3month storage
92%
after 6month storage
84%
after 12month storage
65%
Charge constant Voltage 25℃ (77°F)Float
Initial charging current less than 10A Voltage 12.3-12.6V
Operating temperature
-20 to +60 degree
Operating humidity
10% to 95%
Material&Waterproof Level
Side Housing ,Outdoor Use,Waterproof IP66
Package Size(mm)
1080*220*730
Package Weight(kg)
29
