Product Description

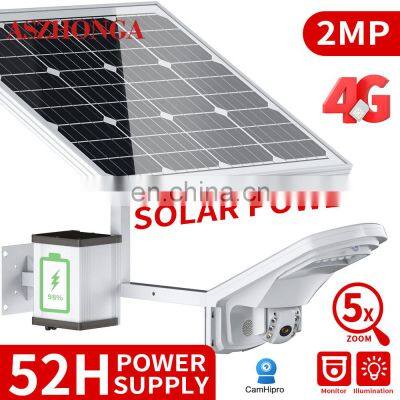

Floodlight HD 2MP 5X Optical ZOOM Security 1080P IP Camera Wireless 3G 4G SIM Card Outdoor PTZ CCTV Surveillance Cam 40W 20AH Battery Solar Panel CamHi CamHipro APP Two-way Audio IR Night Vision
Features :
40W DC-18V OUTPUT Monocrystalline silicon solar power panels 20AH Power Grade Ternary Lithium Energy Storage Battery DC OUT PUT 12V 5A Compatible with commercially available 12V powered cameras Built-in solar power dedicated10A PWM Power Management Controller Overload, reverse connection, over-discharge, over-charge, short-circuit, backflow prevention, etc. Effective battery life extension and protection. 2-in-1 solar angle adjustment and surveillance camera mounting bracket. Equipped with a 4G outdoor waterproof router for reliable network transmission Lens:5X Zoom Auto Focus Lens(2.7-13.5mm Optical) Support HD 2MP (1920*1080) 20 frame rate High quality resolution Support Auto AI Human Tracking&Motion Detection0 4pcs Array Infrared LEDs 2pcs White Supplement LEDs. 60m Night Vision Pan tilt rotation, horizontal:355° & vertical:90°Ø Induction street light function: full brightness after PRI induction to human body, can cover about 30 square meters area, power consumption 10W, after leaving the induction area, automatically switch to low illumination mode work 15s, power consumption 2W. 15s after the light all off state. Support 2-Way Audio Microphone Effective Range 15 Meters, Loudspeaker Effective Range 60 Meters Built-in Microphone&Speaker,Support Two Way Audio Talk Back Day&Night mode: Auto IR-CUT Open Network Video Interface Forum: 4G Version Not Support, Wifi Version Support Support P2P, View & Anywhere & Anytime Support TF card, up to 128G(Don't included TF Card) Provide Android & IOS APP (CamHi/CamHipro) and professional CMS PC client software Voltage: DC 12V 2A Outdoor Use , Waterproof IP66
Multi-purpose
Can be used in marinas, islands, mountains, pastures, etc. where there is no electricity supply. No need to install power cables, easy to install and ready to use.
EASY USE
In extreme conditions where there is not enough sunlight to generate electricity, a fully charged battery can provide up to 52 hours of uninterrupted surveillance power for the accompanying camera.

Outdoor 4G network support

This camera has a built-in 4G module that supports the US version of the 4G network, (do not buy this device for non-US 4G bands).

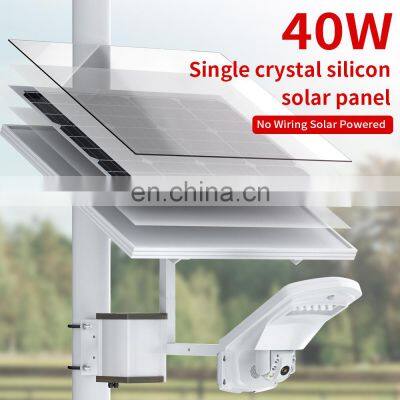

40W Monocrystalline silicon solar power panels
The solar panels are made using a monocrystalline silicon process. High power generation efficiency, providing up to 21% photovoltaic conversion efficiency. Can quickly replenish power for storage batteries.
(NOTE:Solar panel power generation is affected by weather and latitude, please refer to the actual power generation, the above data is collected from the laboratory.)

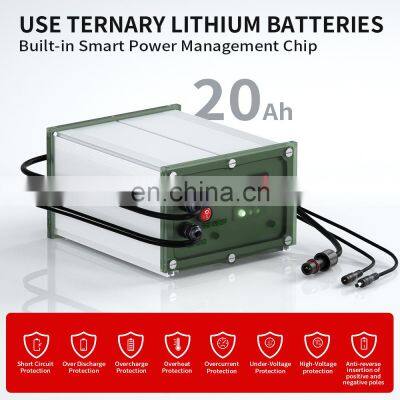

20Ah Trithium Energy Storage Battery
DC OUT PUT 12V 10A Compatible with commercially available 12V powered cameras
Built-in solar power dedicated10A PWM Power Management Controller
Overload, reverse connection, over-discharge, over-charge, short-circuit, backflow prevention, etc. Effective battery life
extension and protection.
Battery voltage LED display to tell at a glance how much power is left
5X Optical Zoom, Pan Tilt Rotation
Security camera up to 5X Optical Zoom, Rotation Range: Horizontal 0~355 Degree Unlimited Rotation; Vertical 0~90 Degree. Take care of your home in all directions
Smart Street Light Mode
With large angle PRI sensor, it will automatically light up when it senses someone passing by, so that the camera covers a larger range of color night vision. After sensing a person leaving the sensing area, it will automatically switch to flashing brightness mode and after 15s of work, it will automatically turn off the light to save power.
Day And Night Color Vision
The camera has a starlight night vision function, clear images at night, with 4 infrared radiation lamp for 24-hour vigilance, the camera in the dark night vision range of up to 60M, in the prevention of security threats have a good guarantee. 2 white LED with street lighting can be achieved to cover about 30 square meters of color night vision function.( Note : Night vision range and clarity vary depending on installation environment, weather, whether there are shades, reflective objects and other factors.)
Two-way Audio
Built-In Microphone, Support Two Way Audio Talk Back ( With Speaker )
IP66 Outdoor Waterproof
Outdoor security camera with waterproof body and power adapter, work temperature minus -20 degrees Celsius to 60 degrees Celsius, work well on the heavy rains or snows days.

Size &Product Details:

Package LIST:
1Pcs * 40W Solar panel
1Pcs * 20Ah Ternary Lithium Energy Storage Battery
1Pcs *2-in-1 solar angle adjustment and surveillance camera mounting bracket.
2Pcs *Metal Hoop
1Pcs * US Ver. 4G security camera
1Pcs * Power Adapter
1Pcs * Screw Bag
1Pcs * Manual
Specification
Model
SP40-20-PLD2M05US
Solar Panel Cell Process
Monocrystalline Silicon Whole cells
Rated Maximum Power(Pmax) [W]
40
Open Circuit Voltage(Voc) [V]
21.6
Maximum Power Voltage(Vmp) [V]
18
Short Circuit Current(Isc) [A]
1.93
Maximum Power Current(Imp) [A]
1.74
Module Efficiency [%]
21.3
Max system voltage [V]
1000
Panel Dimension [mm]
540*450*25
Power Tolerance
0~+3W
Temperature Coefficient of Isc(α_Isc)
+0.048%/℃
Temperature Coefficient of Voc(β_Voc)
-0.27%/℃
Temperature Coefficient of Pmax(γ_Pmp)
-0.35%/℃
Operating Temperature
-25℃~70℃
STC
Irradiance 1000W/m²,ﾠcell temperature 25℃, AM1.5G
Battery Type
Ternary Lithium Batteries
Nominal Capacity [Ah]
20
Power Management Controller
Built-in PWM
Power and voltage display
Real-time Battery Voltage LED Display
DC IN
12.6V
Solar Power Input
DC-18V 2 Pin Aviation Cable Plug
DC OUT
12V 5A
Protective Features
Overload, reverse connection, overdischarge, overcharge, short circuit, backflow prevention, etc.
Operating Temperature
-25℃~50℃
Nominal Voltage
11.1V
Intemal Rcsistance
Full Charged Battery 25℃
Capacity Affected by Tempcrature (10 hour)
40℃(104°F)
102%
25℃ (77°F)
100%
0℃ (32°F)
90%
-15℃ (5°F)
70%
Self-Discharge 25℃ Capacity
after 3month storage
92%
after 6month storage
84%
after 12month storage
65%
Charge constant Voltage 25℃ (77°F)Float
Initial charging current less than 10A Voltage 12.3-12.6V
Camera Effective pixels
2MP 1080p(1920*1080)
CMOS Sensor
1/2.8"
Lens
5X Zoom Auto Focus Lens(2.7-13.5mm Optical)
View angle
86°~19°
Min.illumination
0.05 Lux / 0 Lux(IR on)
Day&Night mode
Auto IR-CUT
Night vision distance
4pcs Array Infrared LEDs ,2pcs White light LEDs Full color night vision SUPPORT
Video compression Standard
H.265
Video streaming
Triple streaming
Video resolution
First stream:1920*1080 Main Stream
Second stream:VGA
Triple stream :QVGA
Image settings
Brightness,saturation,contrast,Sharpness,Exposure,flip,mirror
Image enhancement
Backlight compensation,Automatic white balance,Digital WDR, 3D digital noise reduction
Audio function
Built in Audio Microphone, Support Two Way Audio Talk Back(RCA Speaker)
Motion detecting
Can set 4 independent detection region (1-100 sensitivity can be set)
Alarm linkage
Alarm send pictures to the specified mailbox,
alarm upload pictures and videos to the FTP server,
alarm write pictures and videos to Micro TF card, alarm message push
Privacy mask
Maximum support 4 users to simultaneously browse
OSD
Support camera name, date and time information superimposed
User management
Supports user and rights management
Simultaneous viewers
maximum support 12 users to simultaneously browse (each stream supports 4 users)
Network protocol
TCP/IP,HTTP,TCP,ICMP,UDP,ARP,IGMP,SMTP,
FTP,DHCP,DNS,DDNS,NTP,UPNP,RTSP（Customization required） etc.
Connection protocol
ONVIF-Compatible 2.1Version (backward compatible)(4G Version not supported)
Network Support
2.4 GHz to 2.4835 GHz / IEEE802.11b/g/n Draft(4G Version not supported)
GSM 900/1800 MHz ; 4G FDD-LTE Band 1/2/4/12/13 ; 3G WCDMA Band 2/5/4(WIFI Version not supported)
Wireless Security
64/128-bit WEP. WPA/WPA2. WPA-PSK/WPA2-PSK. WPS
Transmission rate
11b: 11Mbps,11g :54Mbps,11n :135Mbps
Rotation angle
Horizon: 355°. Vertical: 0° to 90°
Horizontal speed
1° to 20°/S
Vertical speed
1° to 20°/S
Cruise Zoom
Support
Power interface
1* DC φ2.1*5.5mm power interface
Ethernet
1 * RJ45 & Antenna 10M/100M Adaptive Ethernet Interface (4G Version not supported)
TF card Slot
1 * TF card slot. up to 128GB (NOT included TF Card)
Reset button
Support
Power supply
DC 12V 2A
Power
Camera:Day: 3W; Night: 8W ;
Street lamp: Usually light 2W, PIR induction 10W
Street lamp mode
always bright （10W）
PIR induction : No moving object Usually light（2W）、Having moving objects all bright（10W）
Operating temperature
-20 to +60 degree
Operating humidity
10% to 95%
Material&Waterproof Level
ABS Plastic + Metal Housing ,Outdoor Use,Waterproof IP66
Size(W×D×H)(mm)
333x206x277mm
Weight(kg)
2kg
Camera Package Size(mm)
360X175X155mm
Camera Package Weight(kg)
2.5kg
Solar Panel Package Size(mm)
500*205*605
Solar Panel Package Weight(kg)
9.5kg
