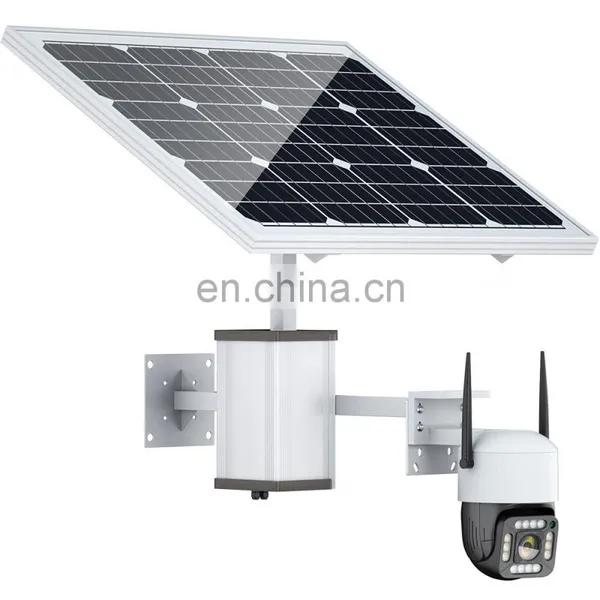

HD 2MP 20X ZOOM Security IP Camera Wireless 3G 4G SIM Card Outdoor PTZ CCTV Surveillance Cam 60W 40A Battery Solar Panel CamHi
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
- HD 2MP 30X ZOOM Security IP Camera Wireless 3G 4G SIM Card Outdoor PTZ CCTV Surveillance Cam 80W 40AH Battery Solar Panel CamHi
- HD 2MP 30X ZOOM Security IP Camera Wireless 3G 4G SIM Card Outdoor PTZ CCTV Surveillance Cam 80W 40AH Battery Solar Panel CamHi
- 80W 40AH Battery Solar Panel HD 5MP 30X ZOOM Security IP Camera Wireless 3G 4G SIM Card Outdoor PTZ CCTV Surveillance Cam CamHi
- 80W 40Ah Battery Solar Panel HD 5MP 30X ZOOM Security IP Camera Wireless 3G 4G SIM Card Outdoor PTZ CCTV Surveillance Cam CamHi
- 80W 40AH Battery Solar Panel HD 5MP 30X ZOOM Security IP Camera Wireless 3G 4G SIM Card Outdoor PTZ CCTV Surveillance Cam CamHi
- HD 2MP 30X ZOOM Security IP Camera Wireless 3G 4G SIM Card Outdoor PTZ CCTV Surveillance Cam 80W 40Ah Battery Solar Panel CamHi
Product Description
Product Description
HD 2MP 20X ZOOM Security IP Camera Wireless 3G 4G SIM Card 1080P Outdoor PTZ CCTV Surveillance Cam 60W 40Ah Battery Solar Panel CamHi CamHipro APP Two-way Audio IR Night Vision
Features :

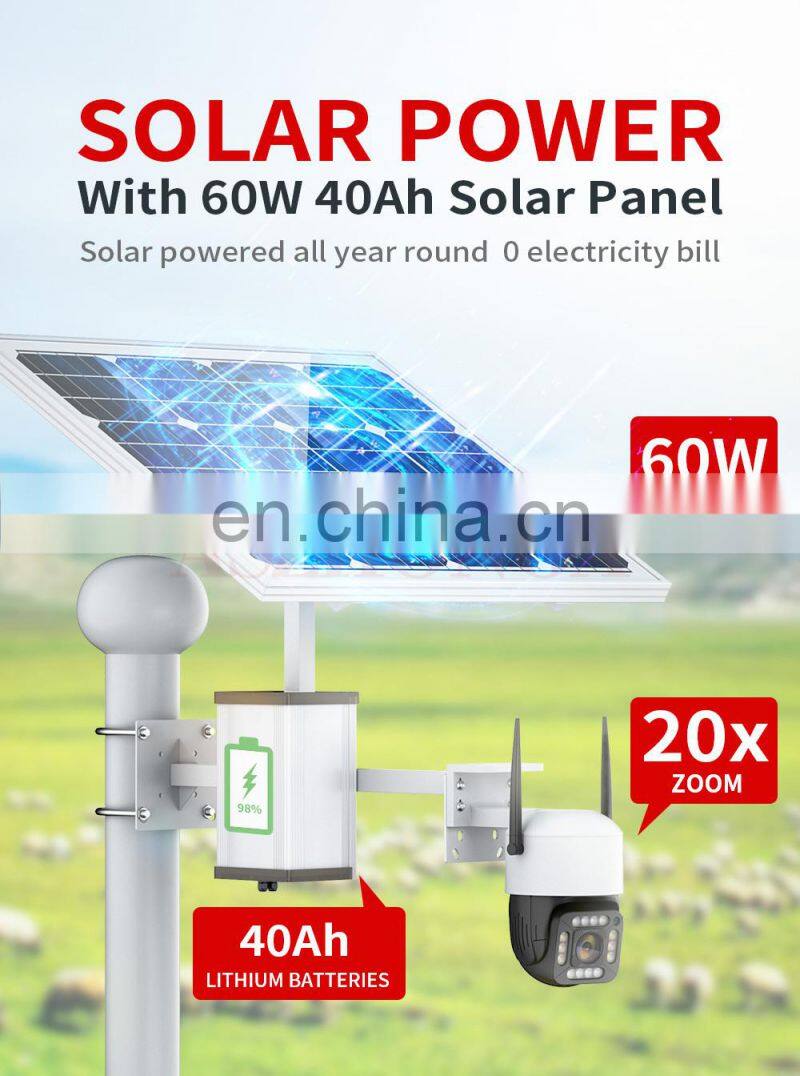

60W DC-18V OUTPUT Monocrystalline silicon solar power panels
40AH Power Grade Ternary Lithium Energy Storage Battery
DC OUT PUT 12V 5A Compatible with commercially available 12V powered cameras
Built-in solar power dedicated10A PWM Power Management Controller
Overload, reverse connection, over-discharge, over-charge, short-circuit, backflow prevention, etc. Effective battery life extension and protection.
2-in-1 solar angle adjustment and surveillance camera mounting bracket.
Equipped with a 4G outdoor waterproof router for reliable network transmission
Lens:20X Zoom Auto Focus Lens( 4.7-47mm 10X Optical+10X Digital)Support HD 2MP (1920*1080) 20 frame rate High quality resolution

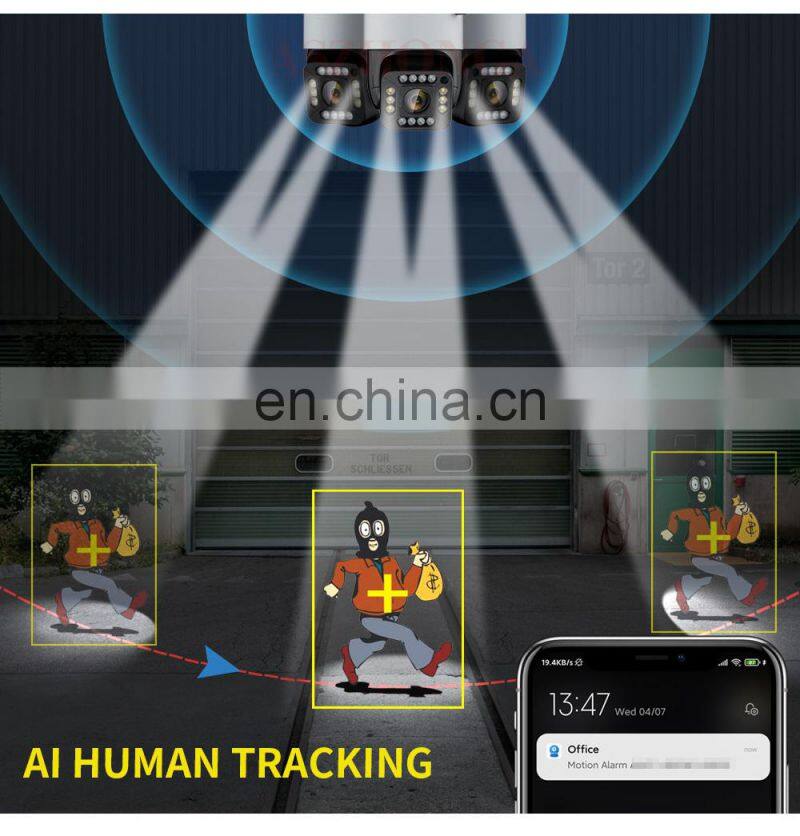

Support Auto AI Human Tracking&Motion Detection
8pcs Array Infrared LEDs 0-80m Night Vision
6pcs Array White light LEDs Full color night vision support
8pcs Array Infrared LEDs 0-80m Night Vision
6pcs Array White light LEDs Full color night vision support
Pan tilt rotation, horizontal:355° & vertical:90°Ø
Support 2-Way Audio
Microphone Effective Range 10 Meters
Loudspeaker Effective Range 10~20 Meters
Built-in Microphone&Speaker,Support Two Way Audio Talk Back
Day&Night mode: Auto IR-CUT
Open Network Video Interface Forum: 4G Version Not Support, Wifi Version Support
Support P2P, View & Anywhere & Anytime
Support TF card, up to 256G(Don't included TF Card)
Provide Android & IOS APP (CamHi/CamHipro) and professional CMS PC client software
Voltage: DC 12V 2A
Outdoor Use , Waterproof IP66
Support 2-Way Audio
Microphone Effective Range 10 Meters
Loudspeaker Effective Range 10~20 Meters
Built-in Microphone&Speaker,Support Two Way Audio Talk Back
Day&Night mode: Auto IR-CUT
Open Network Video Interface Forum: 4G Version Not Support, Wifi Version Support
Support P2P, View & Anywhere & Anytime
Support TF card, up to 256G(Don't included TF Card)
Provide Android & IOS APP (CamHi/CamHipro) and professional CMS PC client software
Voltage: DC 12V 2A
Outdoor Use , Waterproof IP66

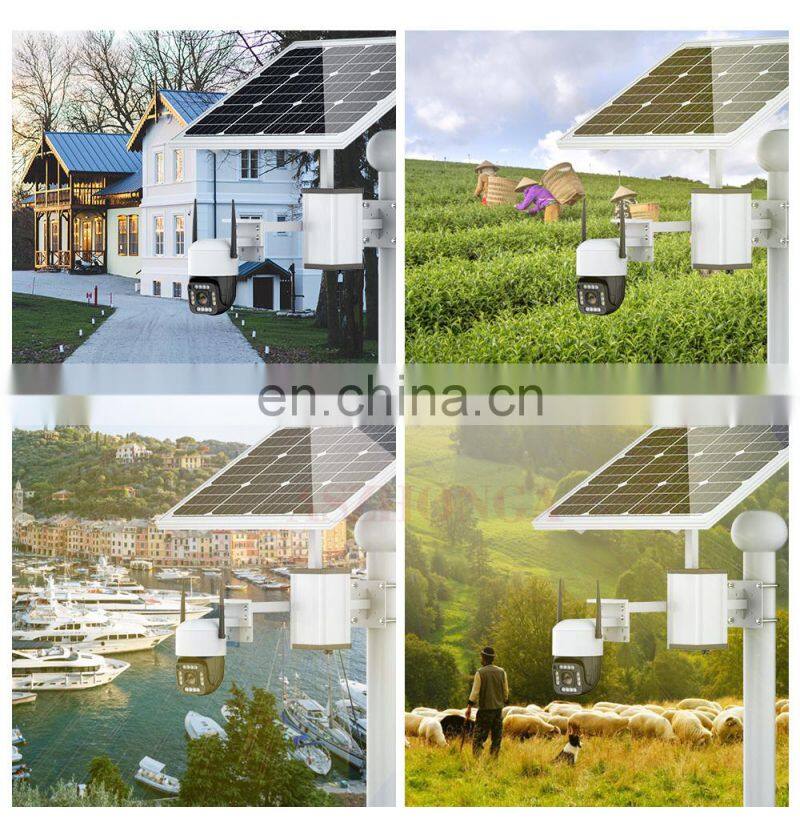

Multi-purpose
Can be used in marinas, islands, mountains, pastures, etc. where there is no electricity supply. No need to install power cables, easy to install and ready to use.
EASY USE
In extreme conditions where there is not enough sunlight to generate electricity, a fully charged battery can provide up to 68 hours of uninterrupted surveillance power for the accompanying camera.(The above data comes from the test under 25℃ environment, for reference only. Please note: Low temperature environment will lead to power decay, please refer to the actual use time.)
Outdoor 4G network support
This camera has a built-in 4G module that supports the US version of the 4G network, (do not buy this device for non-US 4G bands).

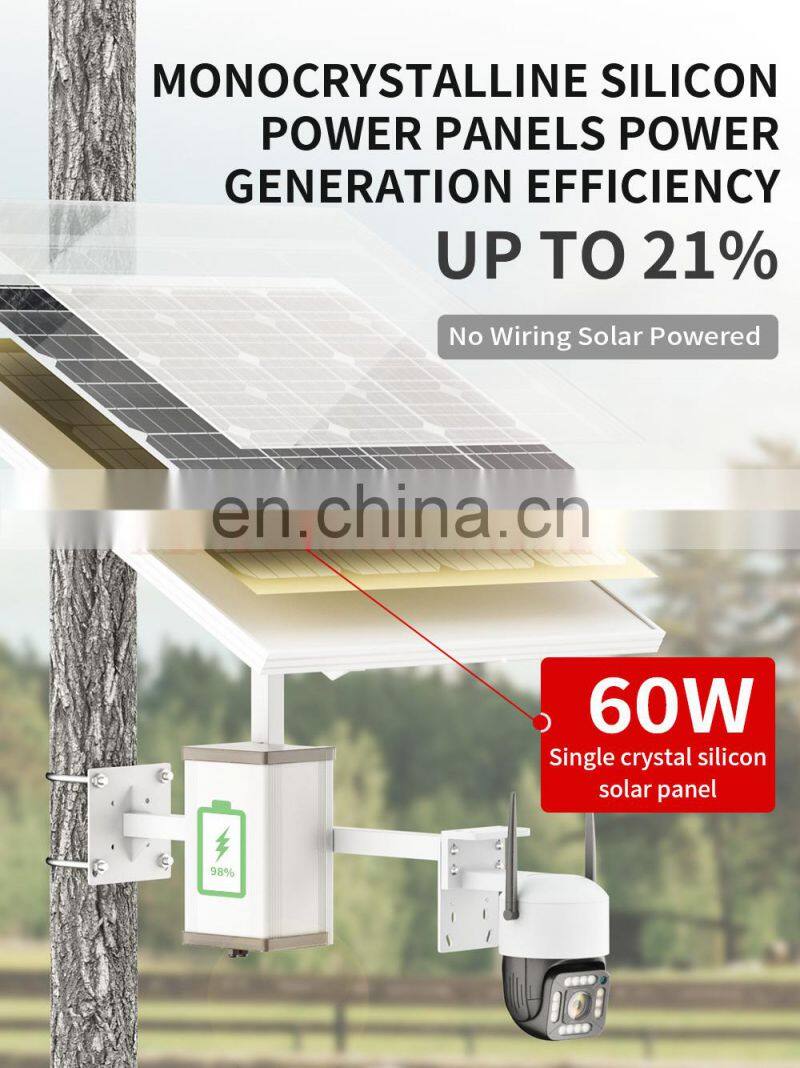

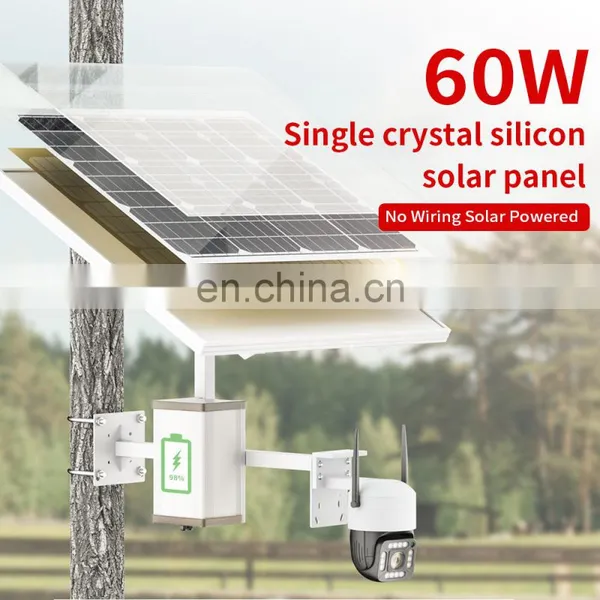

60W Monocrystalline silicon solar power panels
The solar panels are made using a monocrystalline silicon process. High power generation efficiency, providing up to 21% photovoltaic conversion efficiency. Can quickly replenish power for storage batteries.
(NOTE:Solar panel power generation is affected by weather and latitude, please refer to the actual power generation, the above data is collected from the laboratory.)

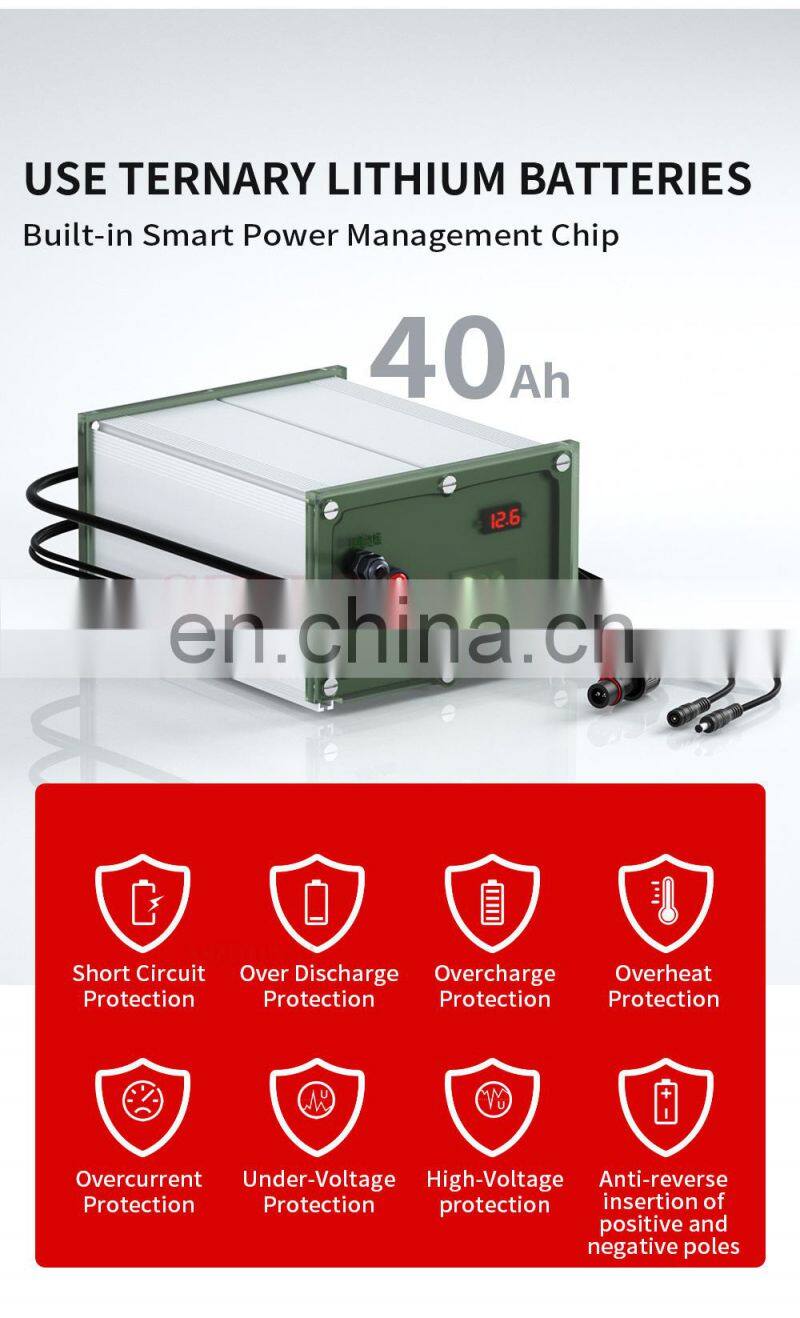

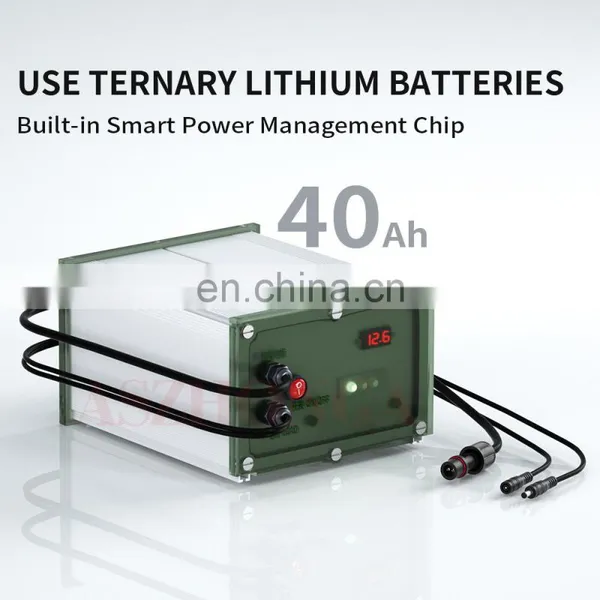

40Ah Trithium Energy Storage Battery
DC OUT PUT 12V 5A Compatible with commercially available 12V powered cameras
Built-in solar power dedicated10A PWM Power Management Controller
Overload, reverse connection, over-discharge, over-charge, short-circuit, backflow prevention, etc. Effective battery life
extension and protection.
Built-in solar power dedicated10A PWM Power Management Controller
Overload, reverse connection, over-discharge, over-charge, short-circuit, backflow prevention, etc. Effective battery life
extension and protection.
Battery voltage LED display to tell at a glance how much power is left

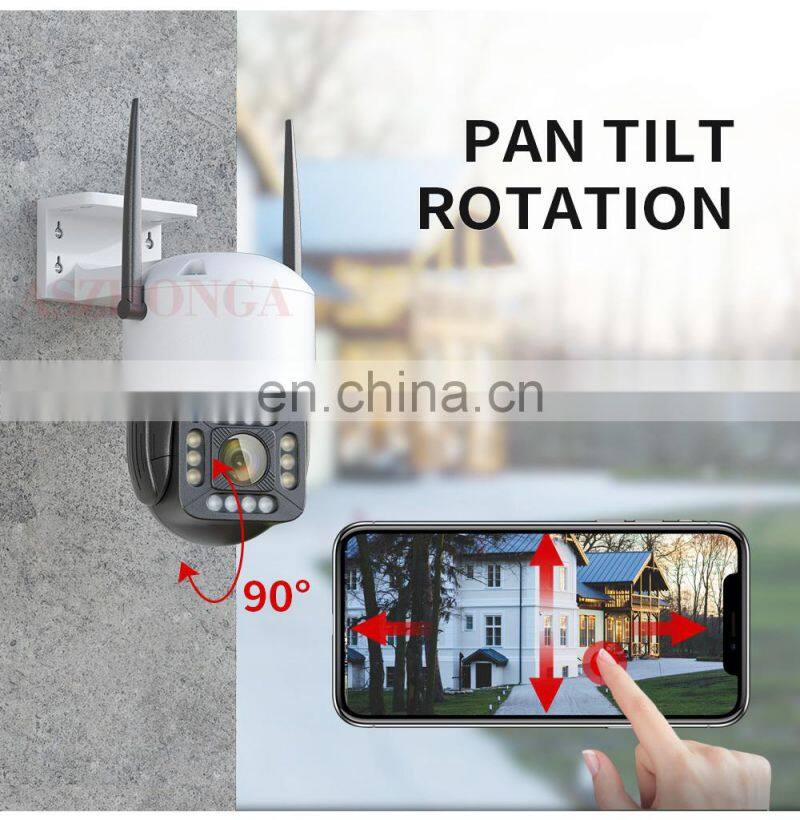

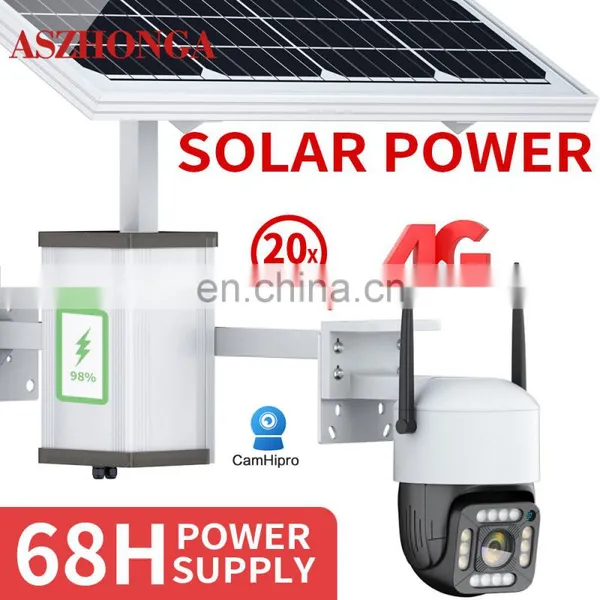

20X Zoom, Pan Tilt Rotation
Security camera up to 20X Zoom, Rotation Range: Horizontal 0~355 Degree Unlimited Rotation; Vertical 0~90 Degree. Take care of your home in all directions
Day And Night Color Vision
The camera has starlight night vision function, clear image at night, with 8pcs infrared radiation light for 24 hours vigilance, the camera night vision range in the dark up to 80M, in the prevention of security threats have a very good guarantee.6pcs white LED can achieve up to 20 meters distance color night vision function.( Note : Night vision range and clarity vary depending on installation environment, weather, whether there are shades, reflective
objects and other factors.)
objects and other factors.)
Two-way Audio
Built-In Microphone, Support Two Way Audio Talk Back ( With Speaker )
IP66 Outdoor Waterproof
Outdoor security camera with waterproof body and power adapter, work temperature minus -20 degrees Celsius to 60 degrees Celsius, work well on the heavy rains or snows days.
Size &Product Details:
Package LIST:
1Pcs * 60W Solar panel
1Pcs * 40Ah Ternary Lithium Energy Storage Battery
1Pcs *2-in-1 solar angle adjustment and surveillance camera mounting bracket.
2Pcs *Metal Hoop
1Pcs * US Ver. 4G security camera1Pcs * Power Adapter
1Pcs * Screw Bag
1Pcs * Manual
1Pcs * Manual
Specification
Model | SP60-40-P38US | ||
Solar Panel Cell Process | Monocrystalline Silicon Whole cells | ||
Rated Maximum Power(Pmax) [W] | 60 | ||
Open Circuit Voltage(Voc) [V] | 21.6 | ||
Maximum Power Voltage(Vmp) [V] | 18 | ||
Short Circuit Current(Isc) [A] | 3.86 | ||
Maximum Power Current(Imp) [A] | 3.49 | ||
Module Efficiency [%] | 21.5 | ||
Max system voltage [V] | 1000 | ||
Panel Dimension [mm] | 630*670*30 | ||
Power Tolerance | 0~+3W | ||
Temperature Coefficient of Isc(α_Isc) | +0.048%/℃ | ||
Temperature Coefficient of Voc(β_Voc) | -0.27%/℃ | ||
Temperature Coefficient of Pmax(γ_Pmp) | -0.35%/℃ | ||
Operating Temperature | -25℃~70℃ | ||
STC | Irradiance 1000W/m²,ᅠcell temperature 25℃, AM1.5G | ||
Battery Type | Ternary Lithium Batteries | ||
Nominal Capacity [Ah] | 40 | ||
Power Management Controller | Built-in PWM | ||
Power and voltage display | Real-time Battery Voltage LED Display | ||
DC IN | 12.6V | ||
Solar Power Input | DC-18V 2 Pin Aviation Cable Plug | ||
DC OUT | 12V 5A | ||
Protective Features | Overload, reverse connection, overdischarge, overcharge, short circuit, backflow prevention, etc. | ||
Operating Temperature | -25℃~50℃ | ||
Nominal Voltage | 11.1V | ||
Intemal Rcsistance | Full Charged Battery 25℃ | ||
Capacity Affected by Tempcrature (10 hour) | 40℃(104°F) | 102% | |
25℃ (77°F) | 100% | ||
0℃ (32°F) | 90% | ||
-15℃ (5°F) | 70% | ||
Self-Discharge 25℃ Capacity | after 3month storage | 92% | |
after 6month storage | 84% | ||
after 12month storage | 65% | ||
Charge constant Voltage 25℃ (77°F)Float | Initial charging current less than 10A Voltage 12.3-12.6V | ||
Camera Effective pixels | 2MP (1920x1080) | ||
CMOS Sensor | 1/2.8" | ||
Lens | 20X Zoom Auto Focus Lens(4.7-47mm 10X Optical+10X Digital) | ||
View angle | 68.5°-7.8° | ||
Min.illumination | 0.05 Lux / 0 Lux(IR on) | ||
Day&Night mode | Auto IR-CUT | ||
Night vision distance | 8pcs Array Infrared LEDs ,6pcs White light LEDs Full color night vision SUPPORT | ||
Video compression Standard | H.265 | ||
Audio | Audio compression standard: G.726/G.711 | ||
Audio code rate: Rate adaptive | |||
Audio Input: Support, built-in Microphone | |||
Audio Output: Support Two Way Audio Talk Back(With Speaker) | |||
Image settings | Brightness,saturation,contrast,Sharpness,Exposure,flip,mirror | ||
Image enhancement | Backlight compensation,Automatic white balance,Digital WDR, 3D digital noise reduction | ||
Audio function | Built in Audio Microphone, Support Two Way Audio Talk Back(With Speaker) | ||
Motion detecting | Can set 4 independent detection region (1-100 sensitivity can be set) | ||
Alarm linkage | Alarm send pictures to the specified mailbox, | ||
alarm upload pictures and videos to the FTP server, | |||
alarm write pictures and videos to Micro TF card, alarm message push | |||
Privacy mask | Maximum support 4 users to simultaneously browse | ||
OSD | Support camera name, date and time information superimposed | ||
User management | Supports user and rights management | ||
Simultaneous viewers | maximum support 12 users to simultaneously browse (each stream supports 4 users) | ||
Network protocol | TCP/IP,HTTP,TCP,ICMP,UDP,ARP,IGMP,SMTP, | ||
FTP,DHCP,DNS,DDNS,NTP,UPNP,RTSP(Customization required) etc. | |||
Connection protocol | ONVIF-Compatible 2.1Version (backward compatible)Not supported | ||
Network Support | 2.4 GHz to 2.4835 GHz / IEEE802.11b/g/n Draft | GSM 900/1800 MHz 4G FDD-LTE Band 1/2/4/12/13 3G WCDMA Band 2/5/4 | |
Wireless Security | 64/128-bit WEP. WPA/WPA2. WPA-PSK/WPA2-PSK. WPS | ||
Transmission rate | 11b: 11Mbps,11g :54Mbps,11n :135Mbps | ||
Rotation angle | Horizon: 355°. Vertical: 0° to 90° | ||
Horizontal speed | 1° to 30°/S | ||
Vertical speed | 1° to 15°/S | ||
Cruise Zoom | NOT Support | ||
Power interface | 1* DC φ2.1*5.5mm power interface | ||
Ethernet | 1 * RJ45 & Antenna 10M/100M Adaptive Ethernet Interface(Not supported) | ||
TF card Slot | 1 * TF card slot. up to 256GB (NOT included TF Card) | ||
Reset button | Support | ||
Power supply | DC 12V 2A | ||
Power | Day: 2W; Night: 10W | ||
Operating temperature | -20 to +60 degree | ||
Operating humidity | 10% to 95% | ||
Material&Waterproof Level | Side Housing ,Outdoor Use,Waterproof IP66 | ||
Package Size(mm) | 700*250*750 | ||
Package Weight(kg) | 16 |
