Home > Metallurgy, Mineral & Energy > Black Metal & Products > Stainless Steel IMTP Packing SS304 SS316 Intalox Saddle Ring

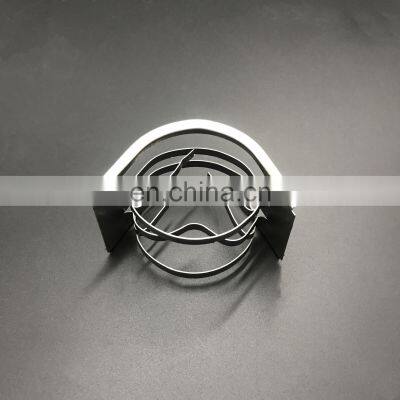

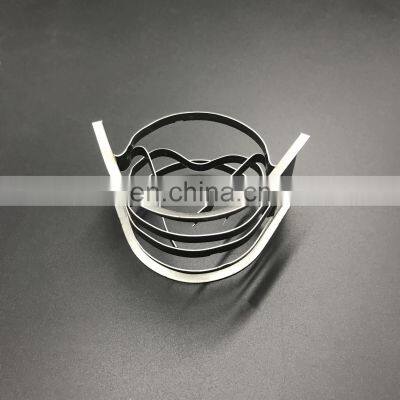

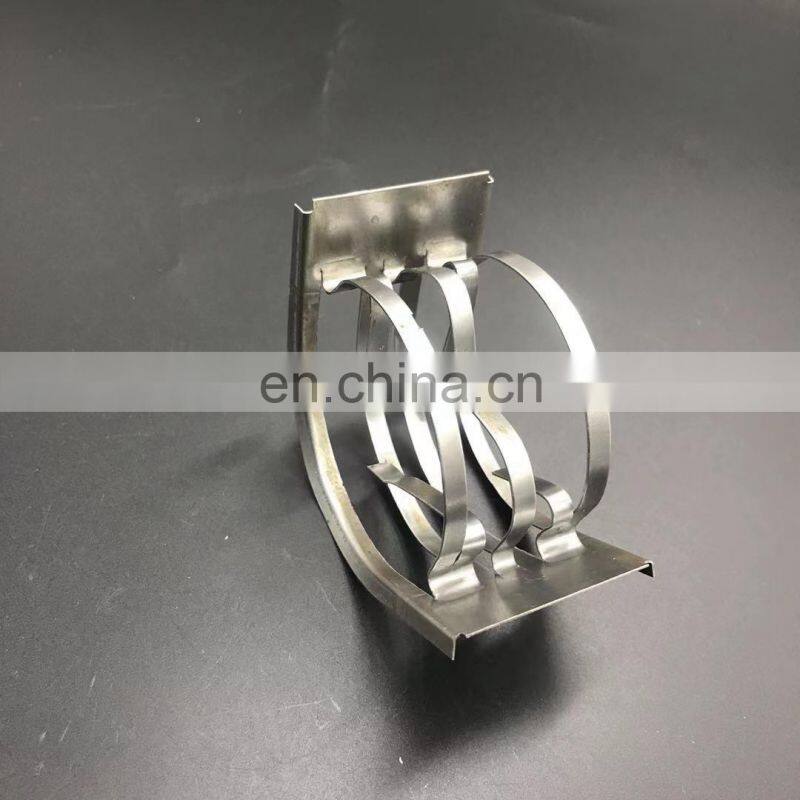

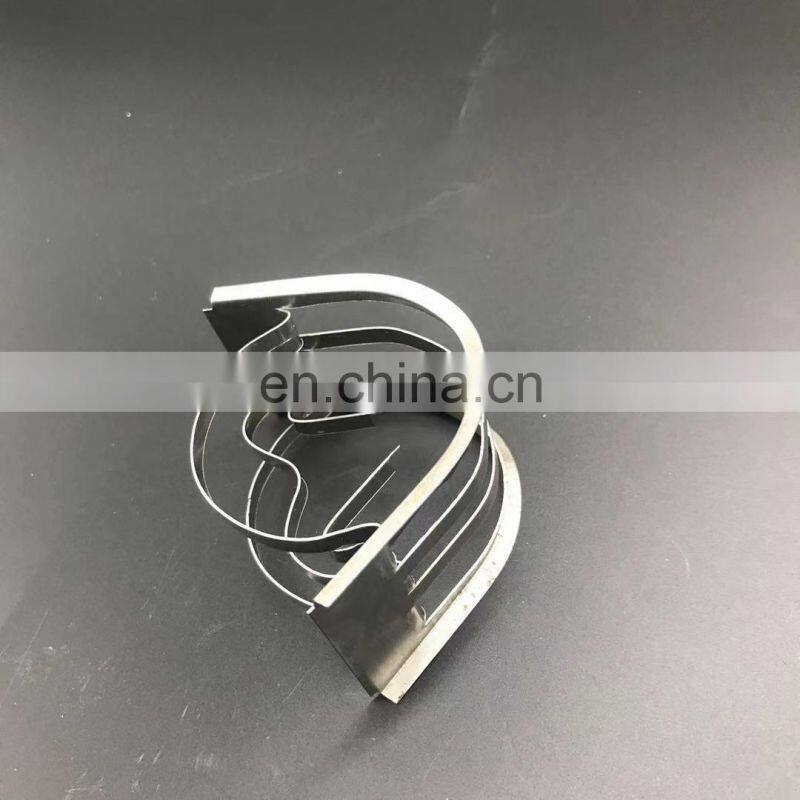

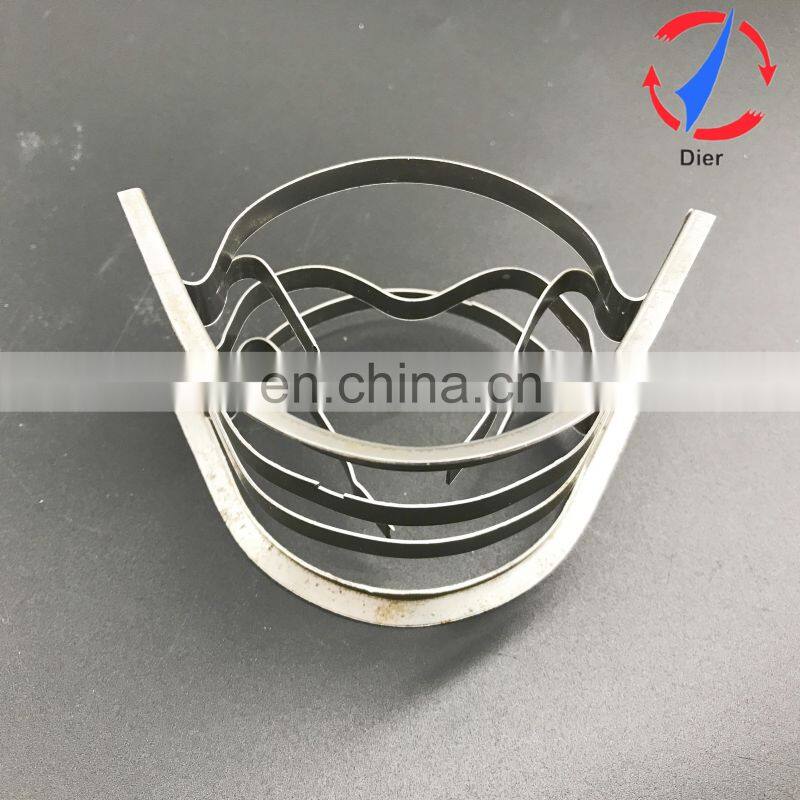

Stainless Steel IMTP Packing SS304 SS316 Intalox Saddle Ring
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Government ministry/Bureau/Commission
Year Established:
2007
Annual Export Value:
US$2.5 Million - US$5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
DIER Good Quality SS304 SS316L 201 Carbon Steel Metal Pall RingNegotiableMOQ: 1 -
Metal Raschig Ring With Better PerformanceNegotiableMOQ: 1
-
DIER 25mm 38mm 50mm 76mm Metallic Pall Ring With Material SS304 SS316NegotiableMOQ: 1
-
Metal Flat Ring for Scrubber TowerNegotiableMOQ: 1
-
Cylinder Shape Carbon Steel,stainless Steel Pall RingNegotiableMOQ: 1
HOW TO FOLLOW US-GET FREE SAMPLES
# DO YOU HAVE CLIENTS WHO WANT TO BUY HIGH QUALITY AND MODERATE PRICE CHEMICAL PACKINGS?
#ARE YOU LOOKING FOR Eco-FRIENDLY CHEMICAL PACKINGS?
# ARE YOU FINDING OTHER SUPPLIER'S OFFER SO HIGH?
#HOW ABOUT A PERSON HELP YOU TO SOLVE ALL THE PROBLEMS AND
LEAVE YOU TO SIT BACK AND RELAX?
DESCRIPTION & SPECIFICATION
Metal Saddle ring Its shape is between ring and saddle . Its structure is benefit to distribution of gas-liquid. It has been applied most extensively.
Capacity vs Pressure Drop
• Low pressure drop;
• Big flux
• High efficiency
• High mechanical strength
Application:
Crude oil decompression distillation, high vacuum distillation, gas absorption, desorption system.
Capacity vs Pressure Drop
• Low pressure drop;
• Big flux
• High efficiency
• High mechanical strength
Application:
Crude oil decompression distillation, high vacuum distillation, gas absorption, desorption system.
Material: Stainless steel 304,304l,306,306l, Carbon Steel, Aluminum alloy etc.
Size (Inch/mm) | Number (per m3) | Surface area (m2/m3) | Free volume (%) | Dry packing factorm-1 | ||
1” | 25*20*0.5 | 108500 | 185 | 96 | 209.1 | |
1.5” | 38*24*0.5 | 31500 | 140.4 | 96.8 | 126.6 | |
2" | 50*28*0.8 | 11160 | 90.1 | 97 | 84.7 | |
3” | 76*48*1.0 | 3320 | 57.6 | 97 | 63.4 | |
RECOMMEND PRODUCTS
WHY CHOOSE DIER?
1. 30 YEARS HISTORY AND GOOD MANAGEMENT AND PRODUCTION
From 1 building to 7 buildings, the history saw the development of management and production. We like a little bird become a mature bird to fly in the sky.
2. TECHNICAL FORCE AND ADVANCED EQUIPMENT SUPPLY STRONG SUPPORT
35 middle and senior technical specialist joined our group in 2013. And 12 million RMB are invested for advanced automatic production equipment.
3. QUALIFIED CERTIFICATION GIVE THE TRUST OF US
The qualified certification tell people we are trusted and not mass products. We also mass quality, honestly, efficiency and good service.
4. FORGEIGN CUSTOMERS VISITING
We are loved by CNOOC(China National Offshore Oil Corporation) and CNPC(China National Petroleum Corporation) and countless well known groups.
CNOOC chemical decabonization solvent upgrading and technical transformation project
Maintenance project of atmospheric and vaccum tower of CNPC
