Home > Products > Self-lubricating Bushing > Oilless DU Self-lubricating Multi-layer Bushing Composed of Steel Backing and PTFE Material DIN1494 Standard Print Machine Bush.
Oilless DU Self-lubricating Multi-layer Bushing Composed of Steel Backing and PTFE Material DIN1494 Standard Print Machine Bush.
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
-
PAP20 Oilless Self-lubricating Bushing DIN1494 Standard Composed of POM and Steel with Oil Dents for Steel Metallurgical Machine
-
SF-1 Factory Customization Composite Bushing DU Triple Layer Self lubricating Bearing Bush Manufacture
-
Custom Brass Base Multilayer Self-lubricating Composite Bushing With PTFE Filler Inside Sleeve Flange Washer Type
-
Factory Customization Composite BushingTriple Layer Self lubricating Stainless Steel Base Bearing Bush Manufacture
-
DU Oilless Self-lubricating Multi Layer Bushing Made of Steel Backing Bronze Powder and Black PTFE Good Performance for Woven.
-
POM based sliding bearing, TCB 201 plain dry bushing Steel base DX bushing Hot sale
Product Description
Product Description

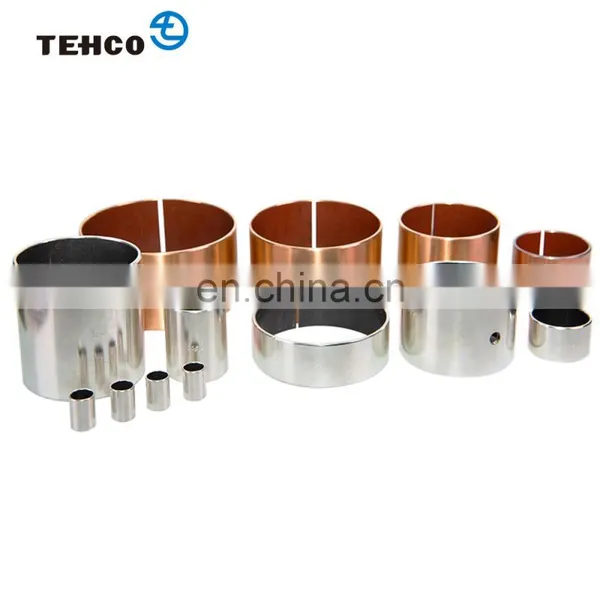

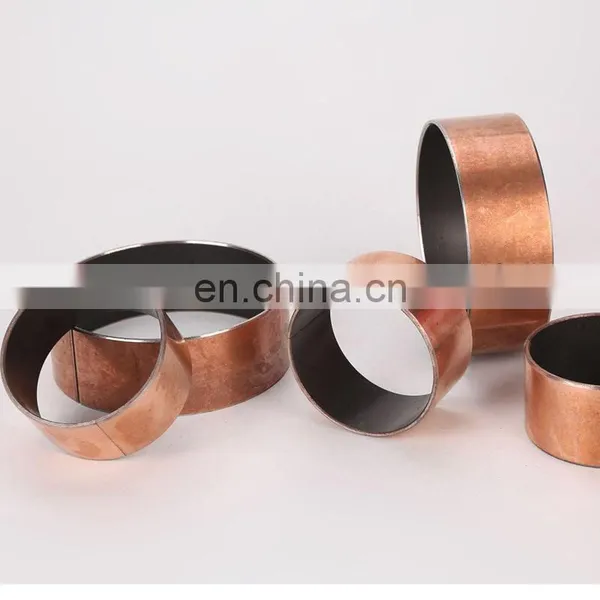

Oilless DU Self-lubricating Multi-layer Bushing Composed of Steel Backing and PTFE Material DIN1494 Standard Print Machine Bush.
It can offer the good properties of self-lubricating, anti-abrasion, low-friction, fully developing the advantages of metal and multi-element polymer.
It’s applied to the printing, woven, tobacco and gymnastic machinery, etc.
Performance Index | Data | |||
Product Name | Oilless DU Self-lubricating Multi-layer Bushing Composed of Steel Backing and PTFE Material DIN1494 Standard Print Machine Bush. | |||
Load capacity P (Dry friction) | Static Load | 250N/mm² | ||
Dynamic Load | 140N/mm² | |||
Oscoillation Load | 60N/mm² | |||
Max line speed V | Dry Lubrication | 2.5m/s | ||
Oil Lubrication | >5m/s | |||
PV value limit | Grease Lubrication | 1.8N/mm²· m/s | ||
Oil Lubrication | 3.6N/mm²· m/s | |||
Friction coef u | Dry Lubrication | 0.08~0.20 | ||
Oil Lubrication | 0.02~0.12 | |||
Mating Axis | Hardness | >220 HB | ||
Roughness | Ra=0.4~1.25 | |||
Material | Steel+Bronze+(PTFE+Filler) | |||
Typical application | The printing, woven, tobacco and gymnastic machinery, etc. | |||
Working Temperature | -200~+280℃ | |||
Thermal conductivity | 40W/(m·k) | |||
Coefficient of linear expansion | 11×10-6/K | |||
Outside surface Plating | copper/tin | |||
Notice: We can also develop according to customers special request while out of this table | ||||
Detailed Images
Company Introduction
Tehco is always focusing on the overseas markets, by satisfying the ever-increasing demands of modernization of customers. We could provide products according to the international standards, and could also provide as per the customers' requests. With stable product quality and best level of services, our products have been exported to dozens of countries and regions from the Europe, the United States, and Southeast Asia, etc.
Packing & Delivery
1. Inner Packing
For small products: 100pcs-200pcs per sealed plastic bag.
2. Outer Packing
8pcs-300pcs per carton (depends on the product size)
3. Shipment Packing
18-24 cartons per wood case or pallet, shockproof and safe for transportation.
Delivery pictures
Products loaded on container.
Products arrives at the destination.
Customer is unloading.
Why Choose Us
OUR ADVANTAGES
FAQ
Q: Are you trading company or manufacturer?
A: Our management is focused on exporting activities for more than ten years and we have our own bushing factory. TEHCO is always professional and reliable. Our advantages are multiple resource integration, strong quality assurance and excellent service level. We are always responsible for our products.
Q: Hong long is your delivery time?
A: Generally 10-25 days after order. It depends on the quantity.
Q: Do you produce samples? Is it free or extra?
A: For standard products, we produce samples free of charge for our customers. And the express costs will be burdened by the customer, but can be returned after the order is placed.
Q: How to ensure the quality?
A: We produce as per the confirmed technology or drawings for each order for our customers. And our factory has a strict quality control system. We inspect goods during production according to a certain frequency and we also perform the final inspection before the goods are packed.
Q: Do you like to serve the customers only with small orders?
A: We are always glad to grow up together with all our customers whatever big or small.We hope our customers become stronger and stronger to be with us.
A: Our management is focused on exporting activities for more than ten years and we have our own bushing factory. TEHCO is always professional and reliable. Our advantages are multiple resource integration, strong quality assurance and excellent service level. We are always responsible for our products.
Q: Hong long is your delivery time?
A: Generally 10-25 days after order. It depends on the quantity.
Q: Do you produce samples? Is it free or extra?
A: For standard products, we produce samples free of charge for our customers. And the express costs will be burdened by the customer, but can be returned after the order is placed.
Q: How to ensure the quality?
A: We produce as per the confirmed technology or drawings for each order for our customers. And our factory has a strict quality control system. We inspect goods during production according to a certain frequency and we also perform the final inspection before the goods are packed.
Q: Do you like to serve the customers only with small orders?
A: We are always glad to grow up together with all our customers whatever big or small.We hope our customers become stronger and stronger to be with us.
