TCB100 PTFE Composite Bushing SF1
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
TCB703 Factory Supplier Combination Rod Ends Spherical Plain Bushing High Quality With Many Sizes In Stock Steel Bearing.
-
TCB102 Factory Corrosion Resistance Ocean Self-lubricating Compoite Steel Bushing With Bronze Powder and PTFE Standard Bushing.
-
PAP20 DX Self-lubricating Bush Backed With High Quality Low Carbon Steel and POM Polymer With Oil Dents DIN1494 Standard.
-
Self Lubricating Bushings DU Bush 50*55*40
-
DU Bush 50*55*40 Oil Free Bushings
-
Oil Free PTFE Coated DU Bush 100x105x60
Product Description
Product Description

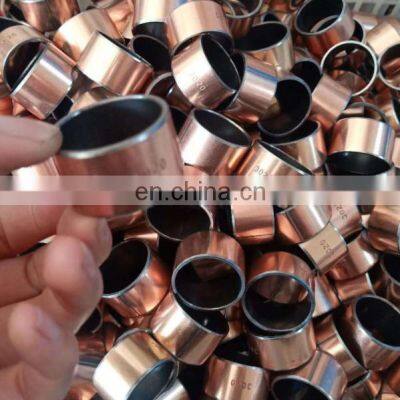

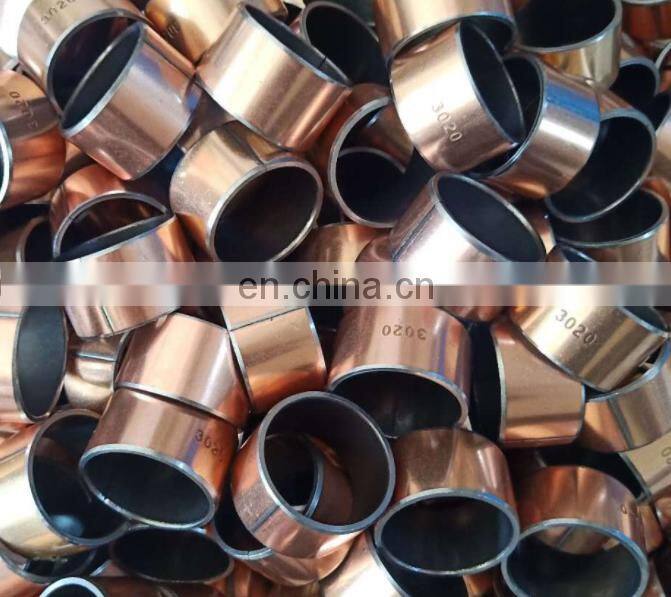

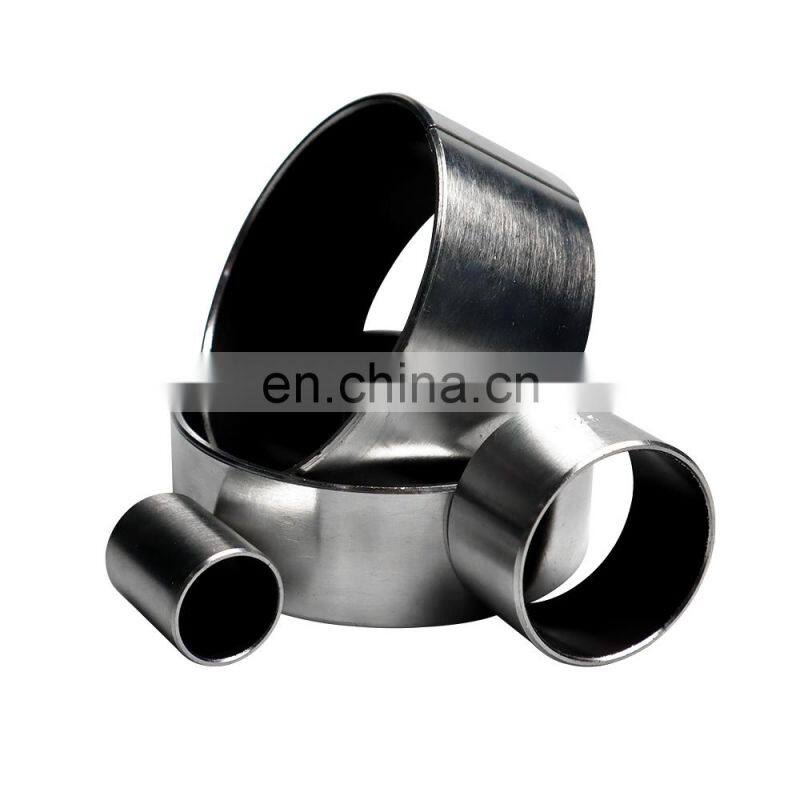

TCB100 PTFE Composite Bushing SF1
Material | Steel Base+Bronze Powder +PTFE | |
Typical Application | the printing, woven, tobacco and gymnastic machinery, etc. | |
Max Static Load | 250N/mm² | |
Max Dynamic Load | 140N/mm² | |
Max Oscoillation Load | 60N/mm² | |
Max Line Speed | Dry 2.5m/s, Oil > 5m/s | |
PV Value Limit | Dry 1.8N/mm².m/s,Oil 3.6N/mm².m/s | |
Friction Coefficient | Dry 0.08~0.20, Oil 0.02~0.12 | |
Mating Axis | Hardness >220, Roughness 0.4~1.25 | |
Working Temperature | -200~+280℃ | |
Thermal Conductivity | 40W/mk | |
Coefficient Of Linear Expansion | 11×10-6/K | |
In addition to the standard product catalog is displayed, we provide non-standard product or to order according to customer requirements. | ||
Packing & Delivery
Packing Details:
1. Inner Packing
For small products: 100pcs-200pcs per sealed plastic bag.
For bigger products: 2pcs-10pcs per plastic film roller (depends on the product size)
2. Outer Packing
8pcs-300pcs per carton
(depends on the product size)
3. Shipment Packing
18-24 cartons per wood case or pallet, shockproof and safe for transportation.
Company Profile
Our Factory
FAQ
Q: Are you trading company or manufacturer?
A: Our management is focused on exporting activities for more than ten years and we have our own bushing factory. TEHCO is always professional and reliable. Our advantages are multiple resource integration, strong quality assurance and excellent service level. We are always responsible for our products.
Q: Hong long is your delivery time?
A: Generally 10-25 days after order. It depends on the quantity.
Q: Do you produce samples? Is it free or extra?
A: For standard products, we produce samples free of charge for our customers. And the express costs will be burdened by the customer, but can be returned after the order is placed.
Q: How to ensure the quality?
A: We produce as per the confirmed technology or drawings for each order for our customers. And our factory has a strict quality control system. We inspect goods during production according to a certain frequency and we also perform the final inspection before the goods are packed.
Q: Do you like to serve the customers only with small orders?
A: We are always glad to grow up together with all our customers whatever big or small.
We hope our customers become stronger and stronger to be with us.
