Product Description
Product Description

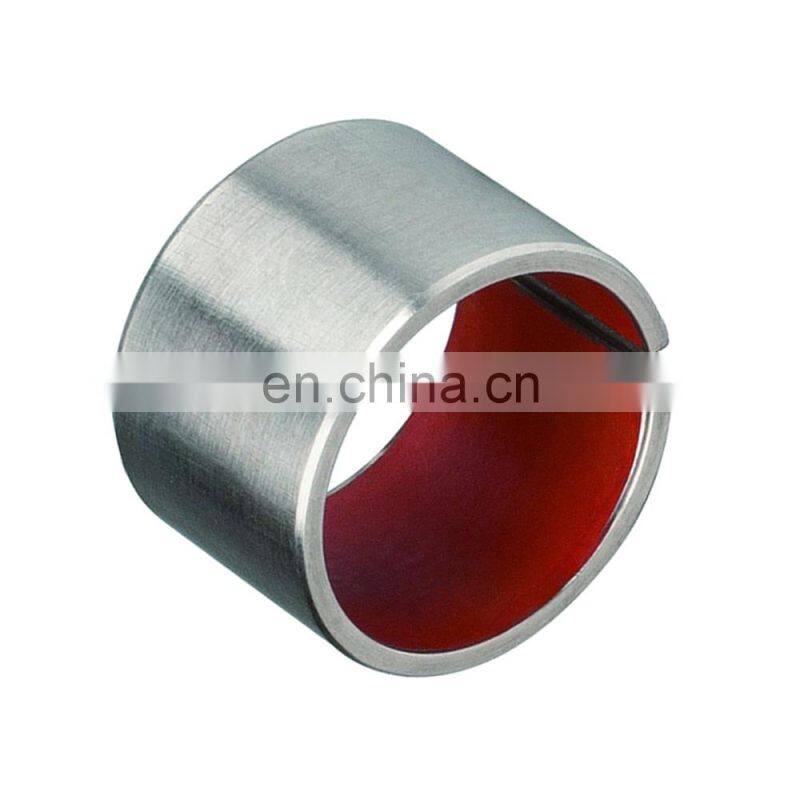

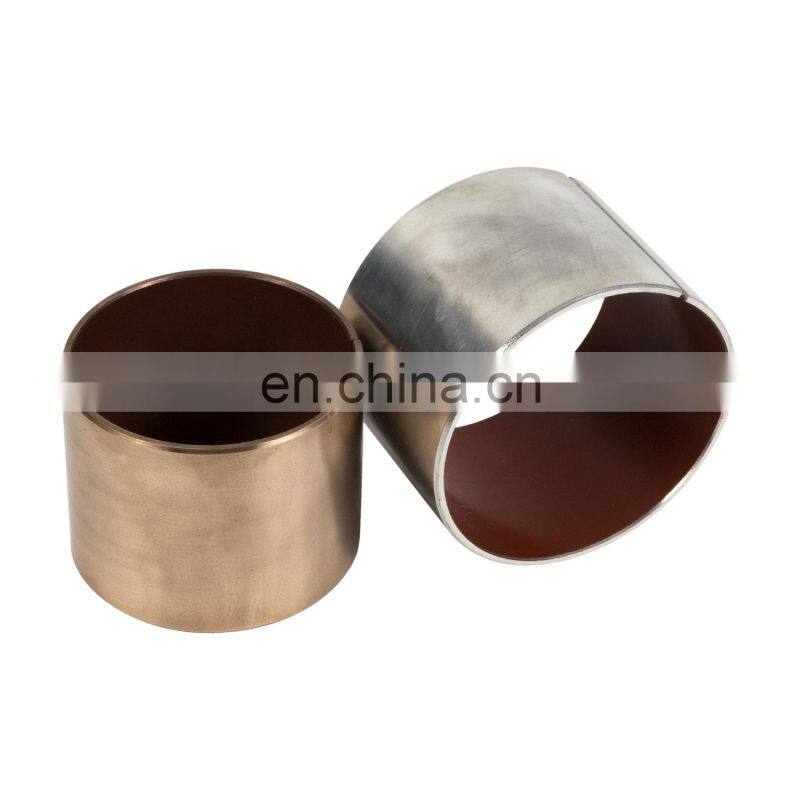

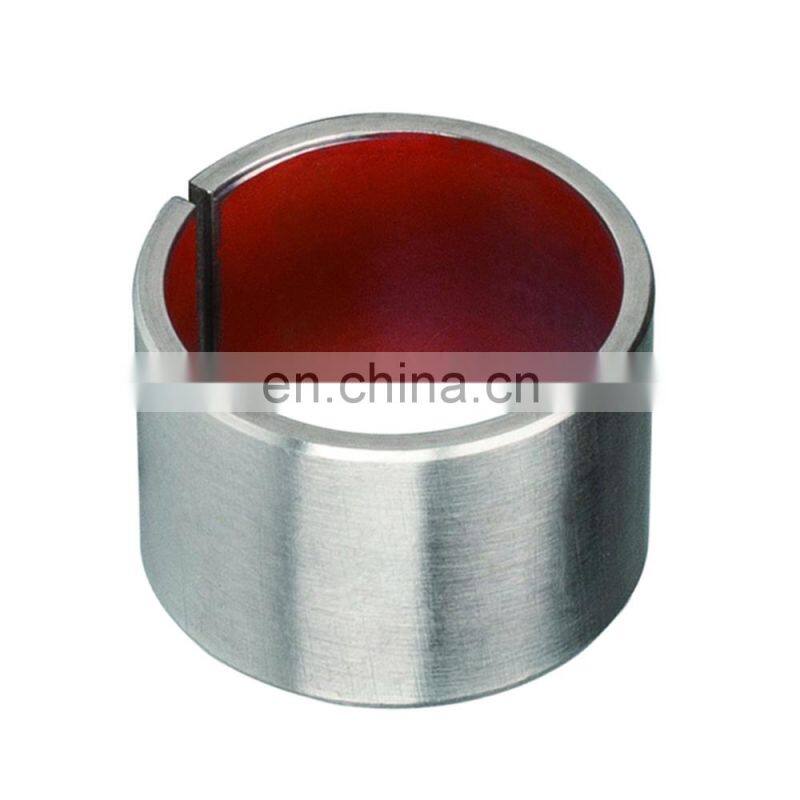

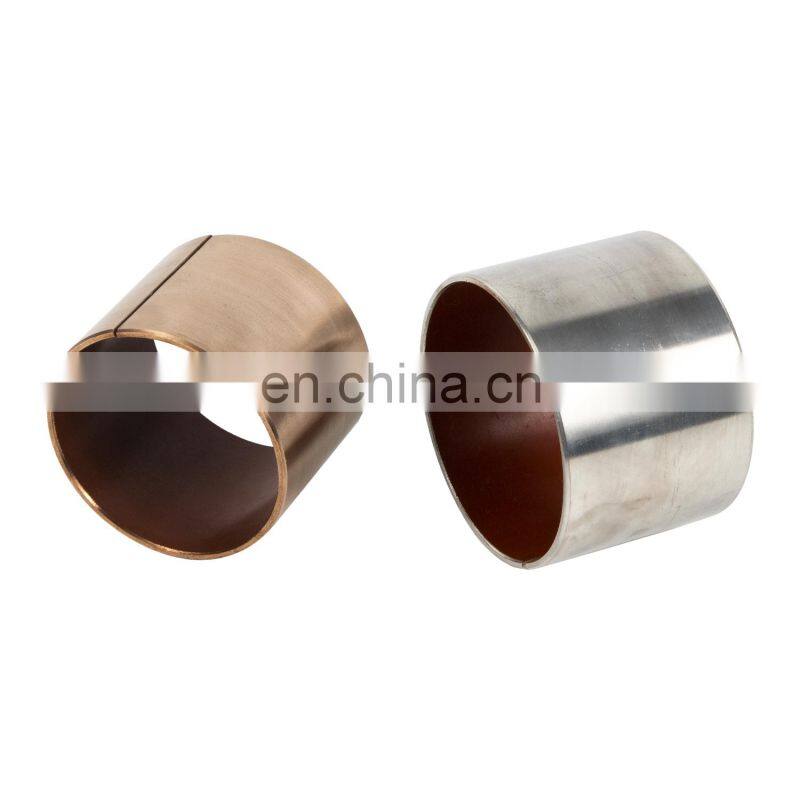

Tehco Supplier Stainless Steel Bearing Ocean Industry Excellent Corrosion Resistance With PTFE Sleeve Self-lubricating Bushing.
Its material structure is Stainless steel base + Bronze powder + PTFE and filler.
It can be used in strong acid and alkaline.
It’s applied to the corrosion resistant part in dyeing machinery and ocean industry, etc.
Performance Index | Data | |||
Product Name | Tehco Supplier Stainless Steel Bearing Ocean Industry Excellent Corrosion Resistance With PTFE Sleeve Self-lubricating Bushing. | |||
Load capacity P (Dry friction) | Static Load | 250N/mm² | ||
Dynamic Load | 140N/mm² | |||
Oscoillation Load | 60N/mm² | |||
Max line speed V | Dry Lubrication | 2.5m/s | ||
Oil Lubrication | >5m/s | |||
PV value limit | Grease Lubrication | 1.8N/mm²· m/s | ||
Oil Lubrication | 3.6N/mm²· m/s | |||
Friction coef u | Dry Lubrication | 0.08~0.20 | ||
Oil Lubrication | 0.02~0.12 | |||
Mating Axis | Hardness | >220 HB | ||
Roughness | Ra=0.4~1.25 | |||
Material | Stainless steel+Bronze+(PTFE+Filler) | |||
Typical application | The corrosion resistant part in dyeing machinery and ocean industry, etc. | |||
Working Temperature | -200~+280℃ | |||
Thermal conductivity | 40W/(m·k) | |||
Coefficient of linear expansion | 11×10-6/K | |||
Outside surface Plating | NO | |||
Notice: We can also develop according to customers special request while out of this table | ||||
