Graphite Bronze Oilless Self Lubricating SPB Flanged Bushing
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Association
Year Established:
2008
Annual Export Value:
Above US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Cast Brass Bushing CNC Machining Bronze Copper CuZn25Al5Mn4Fe3 With Graphite Flange Bear For Machine of Low Weight.NegotiableMOQ: 1 -
Graphite Bronze Oilless Guide BushingNegotiableMOQ: 1
-
Oilless Bronze Graphite Bearing Guide BushingNegotiableMOQ: 1
-
Graphite Bushing Bronze Oilless Sankyo BushNegotiableMOQ: 1
-
Graphite Solid Lubricating Bushing Strengthening Brass CuZn25Al5Mn4Fe3 for Consecutive Casting and Rolling Machine Bushing.NegotiableMOQ: 1
Related Products
Product Description

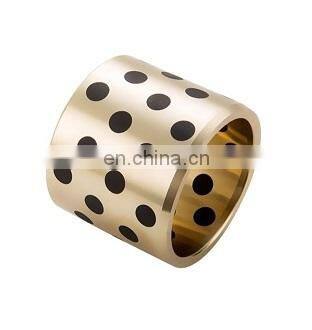

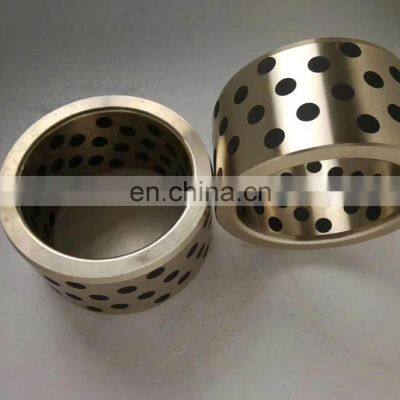

Graphite Bronze Oilless Self Lubricating SPB Flanged Bushing
Material |
CuZn25Al5Mn4Fe3 |
|
Typical Application |
consecutive casting and rolling machines, mine-exploiting equipments, ships, steam engine, etc. |
|
Density g/cm3 |
8 |
|
Hardness HB |
>210 |
|
Tensile Strength N/mm² |
>750 |
|
Yeild strength N/mm² |
>340 |
|
Elongation % |
>12 |
|
Coefficient of linear expansion 10-5/℃ |
2.2 |
|
Heat-conducting Coefficient W(/m.k) |
38~55 |
|
Flexibility Coefficient KN/mm² |
100~140 |
|
Temp. Limits ℃ |
-40~+200 |
|
Max. Dynamic Load N/mm² |
98 |
|
Max.speed m/s |
Dry Lubrication 0.3; Oil Lubrication 1.0 |
|
Max.PV N/mm²*m/s |
Dry Lubrication 1.65; Oil Lubrication 3.25 |
|
Friction |
Dry Lubrication 0.12~0.16; Oil Lubrication 0.03~0.08 |
|
We can also develop according to customers special request while out of this table |
||
Company Profile
TEHCO is dedicated to the research and manufacture of all kinds of sliding bearings. We are approved by the third party concerning the quality certificate. Our core management team has more than 20 years experience in production and development of bushings. Up to now, we have developed a total of ten categories of products, including composite self-lubricating bushing, boundary lubricating bushing, bimetal bushing, oil sintered bushing, solid lubricating bushing with graphite, steel bushing, casting copper bushing, wrapped bronze bushing, spherical plain bearing and filament wound bearing. The quality and performance have met or exceed international standards. We have complete in-house research and development, production, testing and marketing capabilities.
TEHCO has been based on the international markets, with stable and high quality products, as well as professional and perfect services, maintained long-term cooperation relations with customers from the Europe, the Americas, Asia and other countries and regions, enjoying a good reputation.
TEHCO is always customer-oriented, providing quality products and best services to continuously satisfy the increasingly diverse needs of customers. We are committed to becoming a world-leading trade service provider.
Packing & Delivery
Packing Details: Anti-rust Paper, Carton, Wood Case or Pallet
1. Inner Packing
For small products: 100pcs-200pcs per sealed plastic bag.
For bigger products: 2pcs-10pcs per plastic film roller (depends on the product size)
2. Outer Packing
8pcs-300pcs per carton (depends on the product size)
3. Shipment Packing
18-24 cartons per wood case or pallet, shockproof and safe for transportation.
Packing & Delivery
Inner Packing
For small products: 100pcs-200pcs per sealed plastic bag.
For bigger products: 2pcs-10pcs per plastic film roller (depends on the product size)
Outer Packing
8pcs-300pcs per carton
(depends on the product size)
Shipment Packing
18-24 cartons per wood case or pallet, shockproof and safe for transportation
FAQ
1. who are we?
We are based in Anhui, China, start from 2016,sell to Eastern Europe(00.00%),Northern Europe(00.00%),North America(00.00%),Southern Europe(00.00%),Western Europe(00.00%),Southeast Asia(00.00%),Africa(00.00%). There are total about 5-10 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Bushing
4. why should you buy from us not from other suppliers?
Tehco is always customer-oriented, providing quality products and best services to continuously satisfy the increasingly diverse needs of customers. We maintain long-term and stable cooperation with customers from European and American countries.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T;
Language Spoken:English,Chinese
We are based in Anhui, China, start from 2016,sell to Eastern Europe(00.00%),Northern Europe(00.00%),North America(00.00%),Southern Europe(00.00%),Western Europe(00.00%),Southeast Asia(00.00%),Africa(00.00%). There are total about 5-10 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Bushing
4. why should you buy from us not from other suppliers?
Tehco is always customer-oriented, providing quality products and best services to continuously satisfy the increasingly diverse needs of customers. We maintain long-term and stable cooperation with customers from European and American countries.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T;
Language Spoken:English,Chinese
