Home > Industrial Equipment & Components > Bearing > Plain Bearing > Oil Free Composite Copper Alloy Graphite Plugged Brass Shaft Bushing Bearing

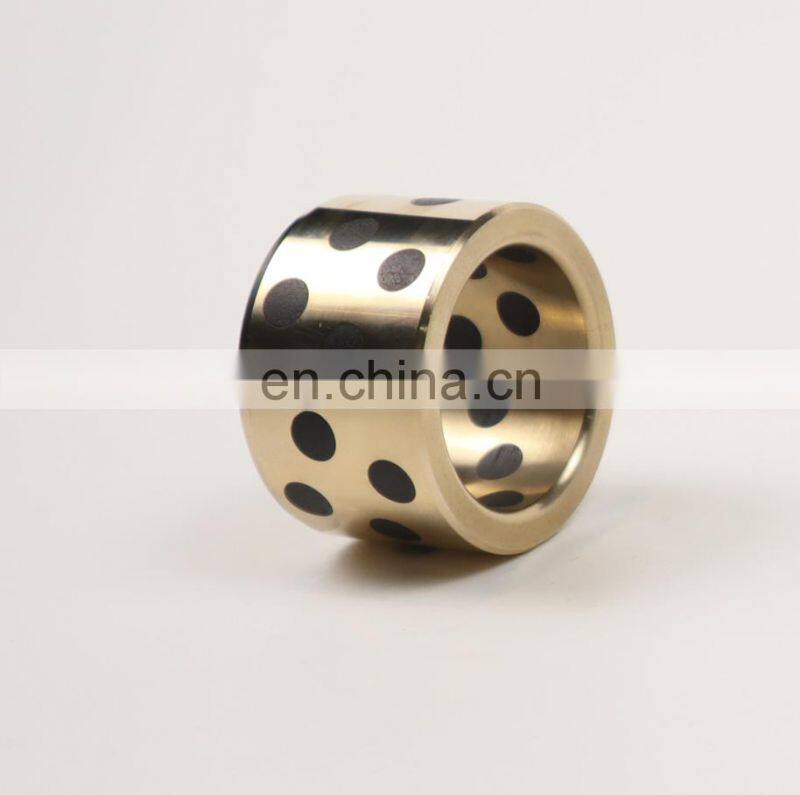

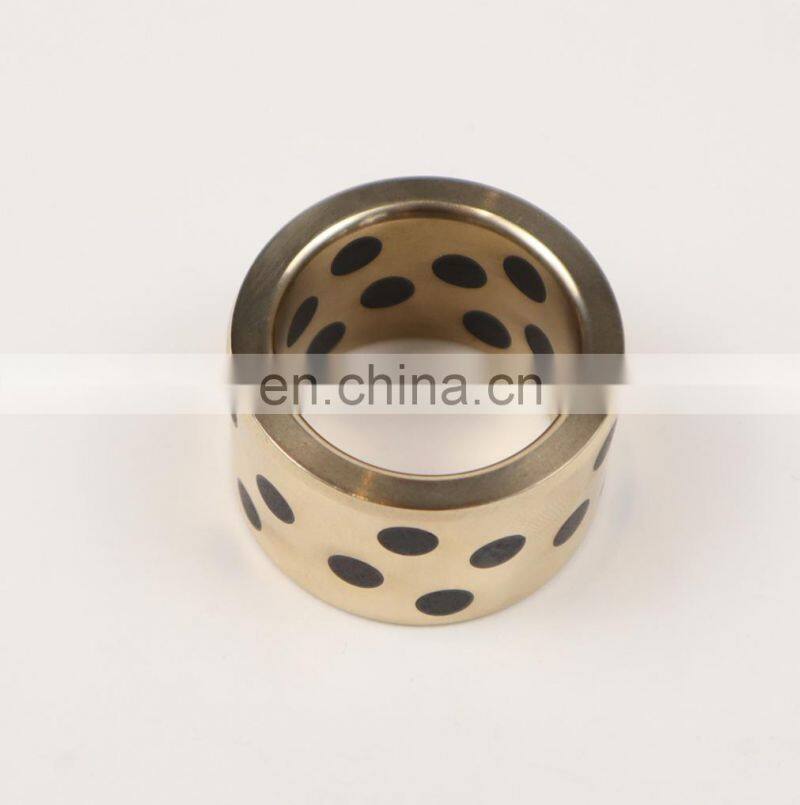

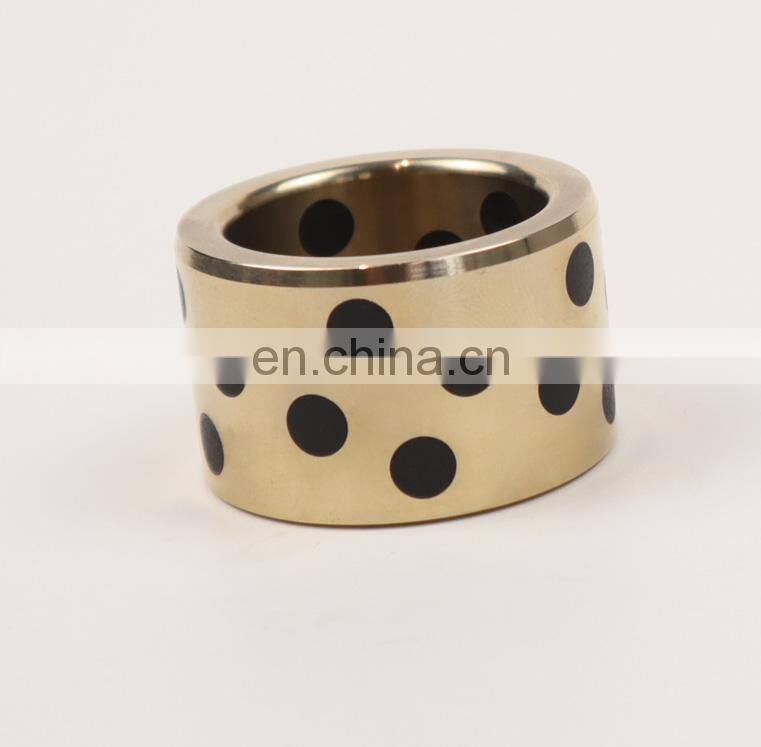

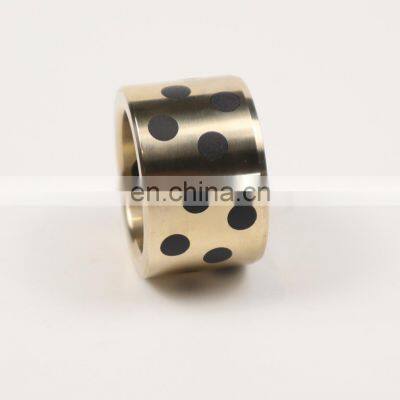

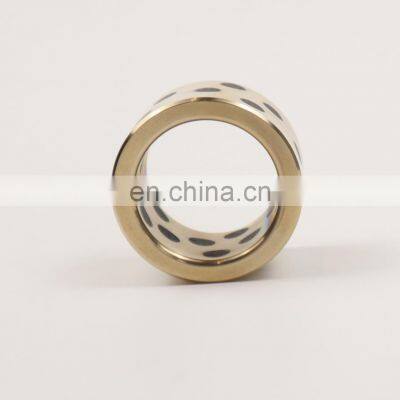

Oil Free Composite Copper Alloy Graphite Plugged Brass Shaft Bushing Bearing
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Association
Year Established:
2008
Annual Export Value:
Above US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Auto Parts Self Lubricating Car Copper Bushing Bearing With GraphiteNegotiableMOQ: 1 -
Copper Material Oilless Graphite Linear Flange Guide Bush Bearing Bushing Kit Metal BushingsNegotiableMOQ: 1
-
Auto Parts Linear Oilless Graphite Brass Guide Sleeve Bushing BearingNegotiableMOQ: 1
-
JDB Solid Lubricant Insert Self Lubricating Oilless Copper BushingNegotiableMOQ: 1
-
Grapliht Flat Bronze Sliding Washer High Quality Bushings Lubricating BearingNegotiableMOQ: 1
Product Description
Oil Free Composite Copper Alloy Graphite Plugged Brass Shaft Bushing Bearing
Material |
CuZn25Al5Mn4Fe3 |
|
Typical Application |
consecutive casting and rolling machines, mine-exploiting equipments, ships, steam engine, etc. |
|
Density g/cm3 |
8 |
|
Hardness HB |
>210 |
|
Tensile Strength N/mm² |
>750 |
|
Yeild strength N/mm² |
>340 |
|
Elongation % |
>12 |
|
Coefficient of linear expansion 10-5/℃ |
2.2 |
|
Heat-conducting Coefficient W(/m.k) |
38~55 |
|
Flexibility Coefficient KN/mm² |
100~140 |
|
Temp. Limits ℃ |
-40~+200 |
|
Max. Dynamic Load N/mm² |
98 |
|
Max.speed m/s |
Dry Lubrication 0.3; Oil Lubrication 1.0 |
|
Max.PV N/mm²*m/s |
Dry Lubrication 1.65; Oil Lubrication 3.25 |
|
Friction |
Dry Lubrication 0.12~0.16; Oil Lubrication 0.03~0.08 |
|
We can also develop according to customers special request while out of this table |
||
Packing & Delivery
Packing Details:
1. Inner Packing
For small products: 100pcs-200pcs per sealed plastic bag.
For bigger products: 2pcs-10pcs per plastic film roller (depends on the product size)
2.Outer Packing
8pcs-300pcs per carton
(depends on the product size)
3.Shipment Packing
18-24 cartons per wood case or pallet, shockproof and safe for transportation.
Our Factory
FAQ
Q: Are you trading company or manufacturer?
A: Our management is focused on exporting activities for more than ten years and we have our own bushing factory. TEHCO is always professional and reliable. Our advantages are multiple resource integration, strong quality assurance and excellent service level. We are always responsible for our products.
Q: Hong long is your delivery time?
A: Generally 10-25 days after order. It depends on the quantity.
Q: Do you produce samples? Is it free or extra?
A: For standard products, we produce samples free of charge for our customers. And the express costs will be burdened by the customer, but can be returned after the order is placed.
Q: How to ensure the quality?
A: We produce as per the confirmed technology or drawings for each order for our customers. And our factory has a strict quality control system. We inspect goods during production according to a certain frequency and we also perform the final inspection before the goods are packed.
Q: Do you like to serve the customers only with small orders?
A: We are always glad to grow up together with all our customers whatever big or small.
We hope our customers become stronger and stronger to be with us.
