Home > Instruments & Meters > Lab Utensil and Disposable > Test Tube > BIOBASE Small Capacity Rotary Evaporator RE-52A Mini Rotary Evaporator With Chiller and Pump for Laboratory or Hospital

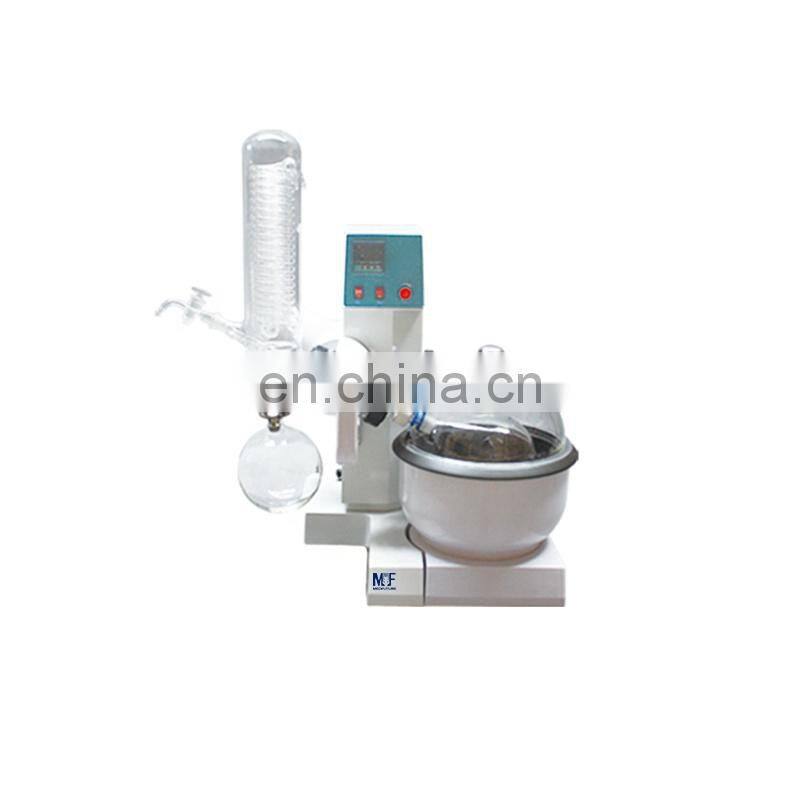

BIOBASE Small Capacity Rotary Evaporator RE-52A Mini Rotary Evaporator With Chiller and Pump for Laboratory or Hospital

BIOBASE Small Capacity Rotary Evaporator RE-52A Mini Rotary Evaporator With Chiller and Pump for Laboratory or Hospital photo-1
BIOBASE Small Capacity Rotary Evaporator RE-52A Mini Rotary Evaporator With Chiller and Pump for Laboratory or Hospital photo-2
BIOBASE Small Capacity Rotary Evaporator RE-52A Mini Rotary Evaporator With Chiller and Pump for Laboratory or Hospital photo-3
BIOBASE Small Capacity Rotary Evaporator RE-52A Mini Rotary Evaporator With Chiller and Pump for Laboratory or Hospital photo-4
BIOBASE Small Capacity Rotary Evaporator RE-52A Mini Rotary Evaporator With Chiller and Pump for Laboratory or Hospital photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Government ministry/Bureau/Commission
Year Established:
2012
Annual Export Value:
Above US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Product Description


Feature:

This product can form film under constant temperature heating and negative pressure conditions.Owning to its efficient evaporation and condensation recovery of menstruum , the product is employed in biological,medical,chemical and food industries , especially for operations of heat-sensitive material,crystallization,separation and recovery of menstruum.
Specification
Model
RE-2000A
RE-2000B
RE-2000E
RE-52A
RE-52C
RE-5299
Rotary Bottle
1 L 24#(standard size)
Collecting Bottle
1 L 35#( ball mill mouth)
0.5 L 24#(standard size)
Condenser
Vertical φ85*430mm,
Vertical φ85*460mm, 29#(standard size)
Charging Valve
19#(standard size)
Rotating Speed
0~180 rpm
0~120 rpm
Vacuum
-0.098 Mpa
Temp. Range
RT~99 ℃
Temp. Accuracy
±1℃
Stroke Height
120 mm
Rotating Power
40W
30W
Heating Power
1.5KW
1KW
Shelf Material
Aluminum alloy
Powder coating anticorrosive
Power Supply
AC220/110V±10%, 50/60Hz
AC220V±10%, 50Hz
AC220/110V±10%, 50/60Hz
External Size(W*D*H)
660*420*830mm
700*440*1005mm
Packing Size(W*D*H)
630*560*540mm
590*460*460mm
Gross Weight
26 Kg
21Kg
Standard Accessory
1000ml Rotary bottle*1, 500ml recycling bottle*1
1000ml rotary bottle*1, 500ml recycling bottle*1
Optional Accessory
RT~400℃ Oil bath, 304 SS bath, Transparent bath cover, Vacuum pump, Recirculating chiller
RT~400℃ Oil bath, Transparent bath cover, Vacuum pump, Recirculating chiller
