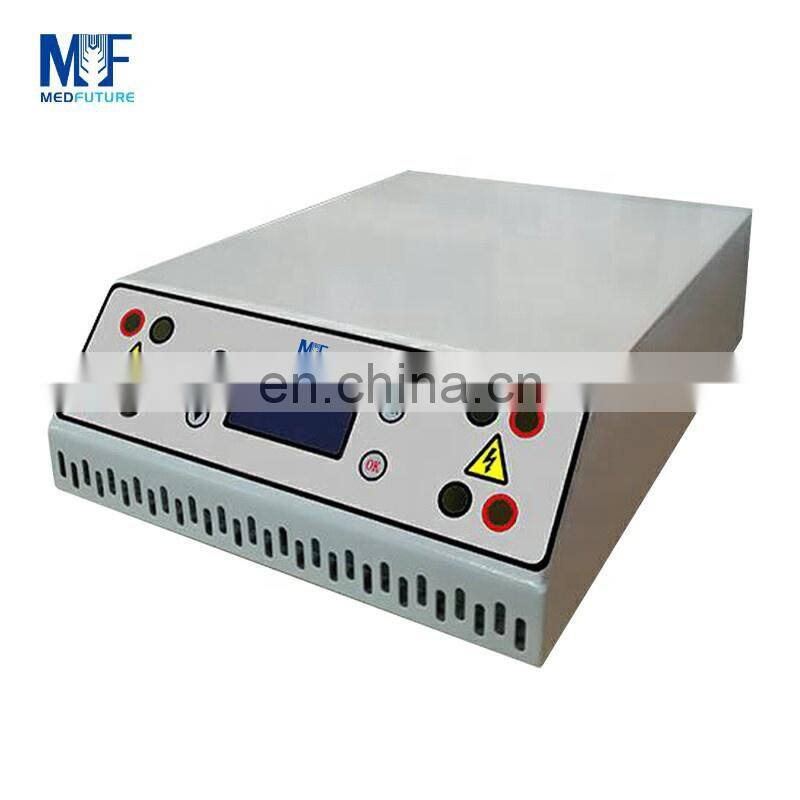

MedFuture PCR Laboratory Electrophoresis Apparatus LCD Display Power Supply
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Government ministry/Bureau/Commission
Year Established:
2012
Annual Export Value:
Above US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Medfuture Hydrogen Generator 0-300ml Mini Hydrogen Gas Generator For LaboratoryNegotiableMOQ: 1 -
Medfuture PSA Nitrogen Generator High Purity Membrane Nitrogen Generator 300ml/minNegotiableMOQ: 1
-
MedFuture Gas Generator Stainless Steel Gas Storage Tank Nitrogen & Hydrogen & Air Generator for LaboratoryNegotiableMOQ: 1
-
Medfuture PCR Plate Film Laboratory Plastic 96 Well Microplate PCR Plate Sealing FilmNegotiableMOQ: 1
-
Medfuture DNA RNA Diagnostic High Clarity Polyolefin 96 Well PCR Plate Seal SealerNegotiableMOQ: 1
MEDFUTURE Electrophoresis Appratus
Product Description
Function overview:
Electrophoresis is a phenomenon in which charged particles move toward an electrode with the opposite charge under the action of an electric field. Under certain pH conditions, each molecule has a specific charge.
Within a certain period of time, they move at different speeds in the same electric field, and each concentrate on a specific position to form a tight swimming band. This is how charged particles can The basic principle of separation, analysis and identification using electrophoresis technology. This power supply produces constant voltage, current and power, with an output voltage of up to 600V. It is suitable for electrophoresis experiments of ordinary proteins and nucleic acids, and is suitable for one machine with multiple tanks.
Electrophoresis is a phenomenon in which charged particles move toward an electrode with the opposite charge under the action of an electric field. Under certain pH conditions, each molecule has a specific charge.
Within a certain period of time, they move at different speeds in the same electric field, and each concentrate on a specific position to form a tight swimming band. This is how charged particles can The basic principle of separation, analysis and identification using electrophoresis technology. This power supply produces constant voltage, current and power, with an output voltage of up to 600V. It is suitable for electrophoresis experiments of ordinary proteins and nucleic acids, and is suitable for one machine with multiple tanks.
Specification
Features:
1. Large-screen LCD displays voltage, current, power and timing time at the same time.
2. Voltage, current and power closed-loop control, realizing adjustment during operation.
3. With call recovery function.
4. After reaching the set time, it has the function of maintaining small current.
5. Perfect protection and early warning functions.
6. With memory storage function.
7. One machine with multiple slots, four parallel outputs.
Scope of application：
* Gene Sequencing
* Clinical diagnosis
* Agriculture, food analysis
2. Voltage, current and power closed-loop control, realizing adjustment during operation.
3. With call recovery function.
4. After reaching the set time, it has the function of maintaining small current.
5. Perfect protection and early warning functions.
6. With memory storage function.
7. One machine with multiple slots, four parallel outputs.
Scope of application：
* Gene Sequencing
* Clinical diagnosis
* Agriculture, food analysis
Technical Parameters:
Model | BEP-600I Electrophoresis |
Voltage Output Range | 5-600V(Resolution:1V) |
Current Output Range | 4-600mA(Resolution:1mA) |
Power Output Range | 1-300W(Resolution:1W) |
Input Voltage | 220V, 50/60Hz |
Parallel Output | 4 groups |
Maximum Power | 300W |
Timing Function | 1min-99h59min, adjustable |
Weight | 3.5kg |
Gross Weight | 6kg |
Dimension | 250*350*105mm |
Package Size | 440*330*210mm |
