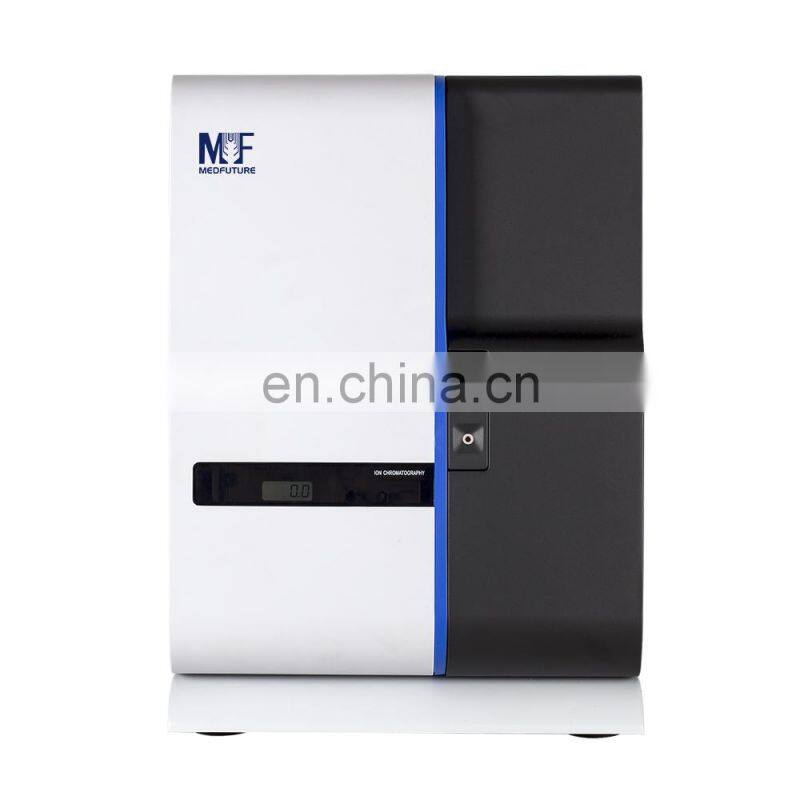

The MIC-D120 ion chromatography
MIC-D120 ion chromatography is a new modular design of the high stability of ion chromatography, combining independent research and development core technology products and foreign excellent machining process equal to one, not only can be configured conductance detector, combined with powerful chromatography workstation and precision circuit control system, the MIC - D120 ion chromatography can also configure the UV - Visible detector implementating related to environment, food, chemical, geological, and many other areas of conventional ion of Yin and Yang, sugar, amino acids, other small molecule organic acids, cyanide, etc.
Technology Parameters
Model |
MIC-D120 |
||||
Ion Chromatographic Pump |
Type |
Bipolar pulse conductivity detector |
|||
Pressure Range |
0~35MPa |
||||
Volume of Flow Range |
0.001~9.999mL/min |
||||
Digital Temperature-control Detection System |
Conductivity Detector |
Structure |
Temperature Bipolar Conductivity Detector |
||
Detection Mode |
Double conductivity detection |
||||
Conductance Cell Size |
≤0.8μl |
||||
Output Voltage |
-6000~6000mV (to regulate) |
||||
Measure Range |
0~45000μS/cm (10 level to choose) |
||||
Resolution |
0.0020ns |
||||
Conductance Cell Temperature |
5~60℃ (to regulate) |
||||
Constant Temperature Accuracy |
±0.01℃ |
||||
Baseline Noise |
≤0.05%FS |
||||
Baseline Drift |
≤3%FS |
||||
Flow System |
The Whole Plastic Pipeline |
Made of PEEK materials |
|||
Six-way Valve |
PEEK material, pressure 5000psi; a signal automatic collecting and flow function. |
||||
Analytic Capability |
For high capacity anion column, pH 0~14, compatible organic solvent, etc. can be analyzed at the same time with one injection. For high capacity cation column, lysine, Choline chloride can be separated and analyzed. Different types of detectors can detect several transition metallic ions, heavy metallic ions and special ions |
||||
Qualitative Repeatability |
≤1% |
||||
Quantitative Repeatability |
1.0% |
||||
Linear Range |
≥103 |
||||
Minimum Concentration of Detection |
Cl-≤0.0005ug/ml, BrO3-≤0.001ug/ml, Li+≤0.001ug/ml |
||||
Power Supply |
AC220V±10%, 50Hz |
||||
Consumption |
150W |
||||
External Size(W*D*H*) mm |
350*470*510 |
||||
Package Size(W*D*H*) mm |
650*770*810 |
||||
Net Weight |
26Kg |
||||
Gross Weight |
32 Kg |
||||
1) OEM or ODM orders are allowed
2) 100% new,100% test before delivery.
3) Professional export team and quick service.
4) Good after-sale service,speed responding in 24 hours.
Why choose Medfuture China?
We are the professional laboratory and medical equipment supplier in China. We offer OEM and ODM service to our clients.
Would Medfuture China send product samples to customer?
We could send product samples to clients, but the sample product and the freight are charged.
What payment term does Medfuture China accept?
We accept T/T, L/C, Western Union and some of other payment methods. Usually, we prefer 100%T/T in advance, for special order, 40% of the total amount would be paid when place order, and the rest would be paid before shipment.
How long is the lead time?
7-14 preparation days are needed after receiving prepayment. Shipment period varies according the different destination, usually is 20-50 days. If it is urgent, air shipment or express delivery like TNT and DHL will be recommended.
How long is the validity of Medfuture China’s quotation?
Usually, the validity period of quotation is 30 days, but still depends on the changes of exchange rate and shipping cost.
Which port in China is the port of shipment?
Qingdao (Shandong) port (special requirement could be discussed)
How is the package of the product?
The equipment would be wrapped by soft materials to avoid vibration and would be packaged by wooden or cartoon boxes with water-proof plastic wrapper.
How is the inspection process before delivery?
Finished products will be inspected by our QC staff firstly, then will be checked by project manager. We also accepted third party inspection that arranged by clients.
