Product Description
BIOBASE
Carbon Sulfur Analyzer
BK-CSA6
BK-CSA6

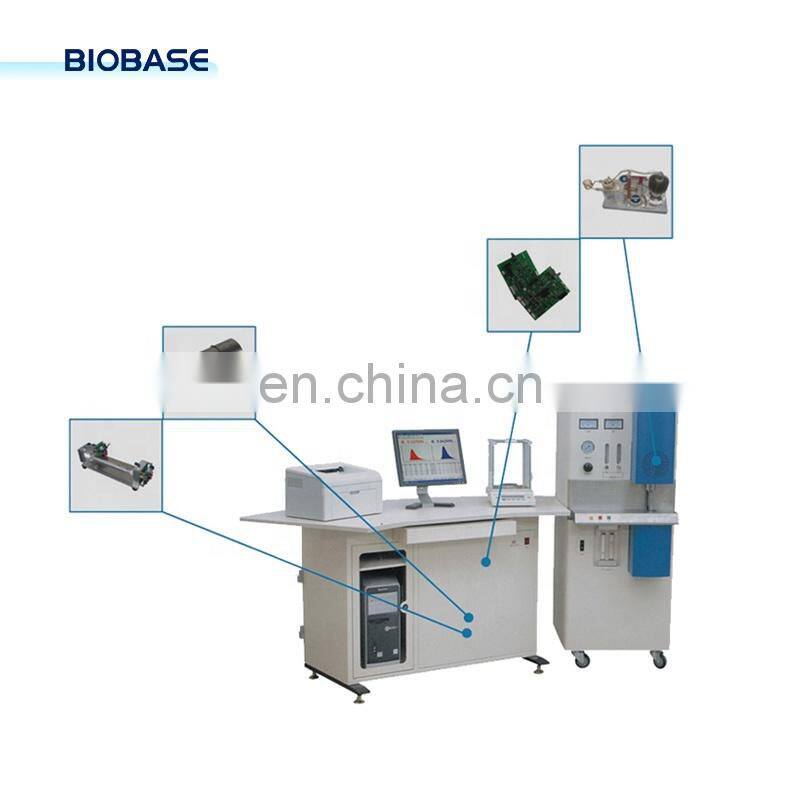

Features：
High-frequency Infrared Carbon & Sulfur Analyzer can determine the percentage of carbon and sulfur in steel, iron,alloy,nonferrous metal, cement, mineral, glass and other material.
Analysis software
Using Delphi software compiler, WINDOWS XP, Win7, Win8, Win10 system.
Using the drop-down menu and shortcut operation, With the functions of multi-useradministrator, curve fitting, coefficient correction, treatment of results, printing, system diagnosis and others.
Infrared detecting pool
Gold-plating carbon sulfur analysis pool and high precision of pyroelectric infrared detector.
New platnum infrared light source, heating duration, spectral characteristics of high efficiency. Microstepping motor, good thermal stability.
High precision pump
In response to the input pressure change, to ensure that the analysis of gas flow. Constant output, so as to ensure the stable and reliable analysis results.
Control circuit
Double CPU modular design, high integration, stable and reliable. 24 bit high speed sampling chip, high sampling precision.
High frequency oscillating circuit
Current / Voltage / Power / Choosing the way to regulate the furnace temperature, suitable to various materials of samples.
Using Delphi software compiler, WINDOWS XP, Win7, Win8, Win10 system.
Using the drop-down menu and shortcut operation, With the functions of multi-useradministrator, curve fitting, coefficient correction, treatment of results, printing, system diagnosis and others.
Infrared detecting pool
Gold-plating carbon sulfur analysis pool and high precision of pyroelectric infrared detector.
New platnum infrared light source, heating duration, spectral characteristics of high efficiency. Microstepping motor, good thermal stability.
High precision pump
In response to the input pressure change, to ensure that the analysis of gas flow. Constant output, so as to ensure the stable and reliable analysis results.
Control circuit
Double CPU modular design, high integration, stable and reliable. 24 bit high speed sampling chip, high sampling precision.
High frequency oscillating circuit
Current / Voltage / Power / Choosing the way to regulate the furnace temperature, suitable to various materials of samples.
Specification
Model | BK-CSA5 | BK-CSA6 | |

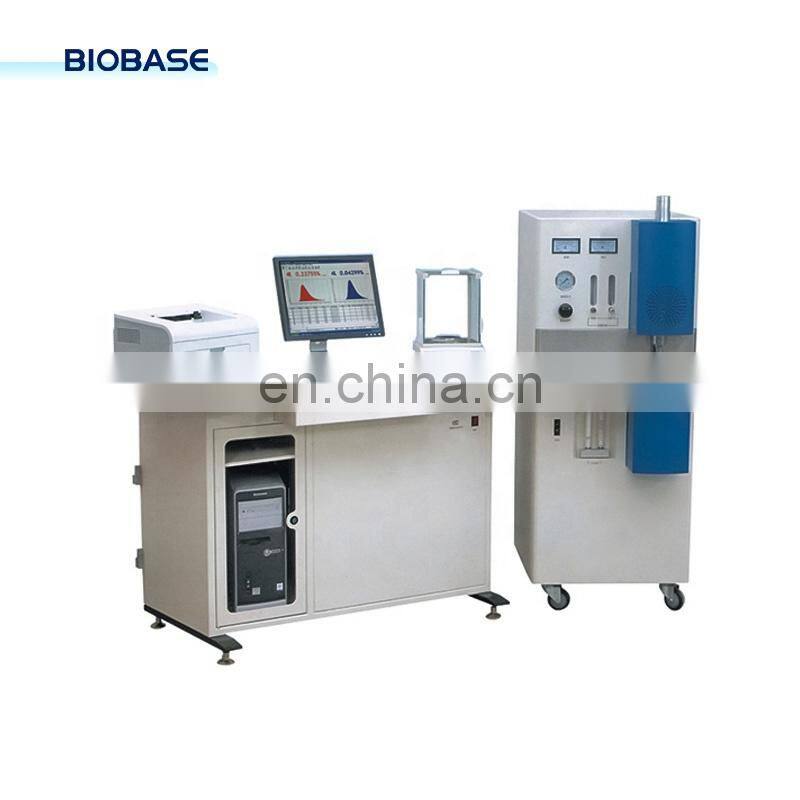

Appearance | Desktop detector, with desktop high-frequency furnace, save space | Separate work station, with vertical high-frequency furnace | |
Analysis Range | C: 0.0005%~6.0000% (can be extended to 99.999%) S: 0.0005%~0.35000% (can be extended to 99.999%) | C: 0.0001%~10.0000% (can be extended to 99.999%) S: 0.0001%~2.0000% (can be extended to 99.999%) | |
Analysis Pool | 2 pools | 2 pools (optional 4 pools) | |
Consumption | 2.2KW | 2.5KW | |
Power Supply | AC220V±10%, 50/60Hz | ||
Package Size (W*D*H) | 1380*760*980mm | 1550*750*910mm, 740*580*1410mm | |
Gross Weight | 200kg | 330kg | |
Standard Accessories | Main unit, high frequency automatic inductive combustion furnace, electric balance, computer, printer | ||
1000 times effective analysis of spare parts | |||
