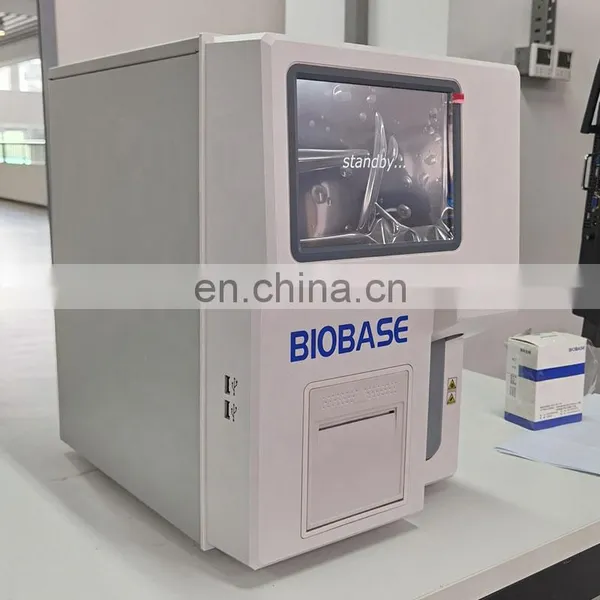

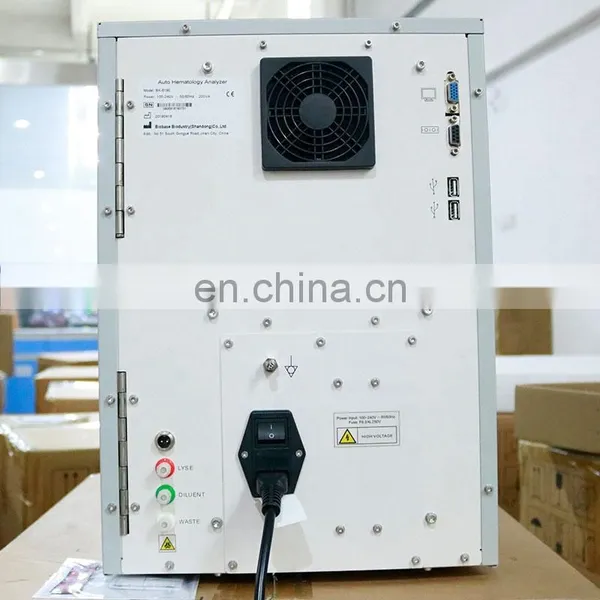

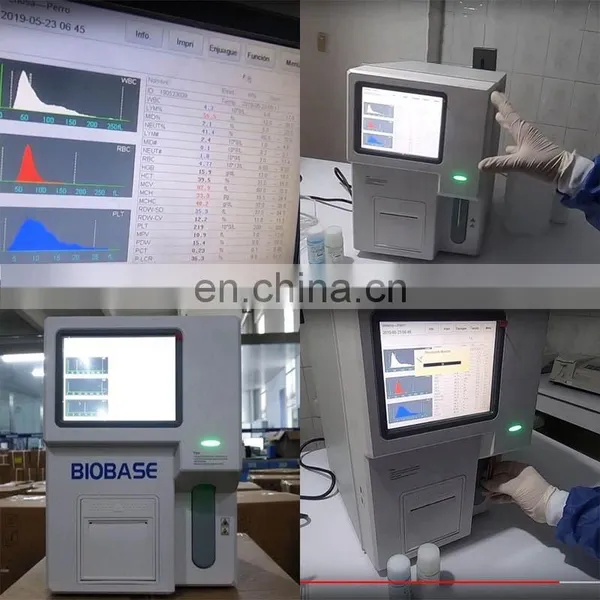

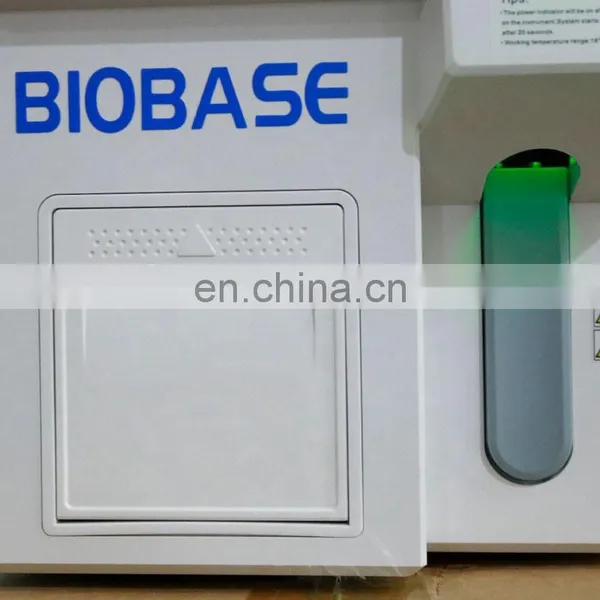

BIOBASE Auto Hematology Analyzer BK-6190 Three Part Differential Hematology Analyzer for Laboratory or Hospital
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Government ministry/Bureau/Commission
Year Established:
2012
Annual Export Value:
Above US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
BIOBASE Auto Hematology Analyzer BK-6310 Automated Hematology Analyzer for Veterinary Use for Laboratory or HospitalNegotiableMOQ: 1 -
BIOBASE Auto Hematology Analyzer BK-6400 High Cost Automatic Hematology Analyzer for Laboratory or HospitalNegotiableMOQ: 1
-
BIOBASE Auto Hematology Analyzer BK-6500 Analyzer Hematology Used Second Hand Cheap for Laboratory or HospitalNegotiableMOQ: 1
-
Biobase Electrophoresis Analyzer BEP-600I for PCR Laboratory Use Gel Electrophoresis Tank for Laboratory or HospitalNegotiableMOQ: 1
-
BIOBASE Hot Sale BK-400 Fully Auto Chemistry Analyzer Automatic POCT Clinical Biochemistry Analyzer for Laboratory or HospitalNegotiableMOQ: 1
Product Description
Feature：
①．Throughput: 60T/H
②．8 inch touch screen
③．20 parameters + 3 histograms
④．3 counting modes
⑤．100,000 sample results
⑥．Support LIS and external printer
②．8 inch touch screen
③．20 parameters + 3 histograms
④．3 counting modes
⑤．100,000 sample results
⑥．Support LIS and external printer
Specification
Model |
BK-6190 |
||||||
Throughput |
60Tests/hour |
||||||
Measuring Principle |
Impedance for cell counting Cyanide-free method for HGB |
||||||
Aperture Diameter |
WBC chamber:100μm,RBC/PLT chamber:70μm |
||||||
Parameters |
WBC, Neu#, Lym#, Mid#, Neu%,Lym%, Mid%, RBC, HGB, HCT, |
||||||
MCV, MCH, MCHC,RDW-SD, RDW-CV, PLT, MPV, PDW, PCT, P-LCR |
|||||||
Histograms |
3 histograms(includingWBC, RBC, PLT histogram) |
||||||
Sample Volume |
Normal:10μl; Predileted:20μl |
||||||
Calibration |
Manual & auto calibration |
||||||
Counting Modes |
Venous, capilary, prediluted |
||||||
Printer |
Built-in thermal printer,USB to external printer(optional) |
||||||
Data Input |
8 inch touch screen, keyboard, mouse |
||||||
Output |
RS232 port, USB port, VGA port. LIS system avaliable |
||||||
Storage |
100,000 results with histogram |
||||||
Carry-over rate |
Parameter |
CV |
|||||
WBC |
≤ 2% |
||||||
RBC |
≤ 1% |
||||||
HGB |
≤ 2% |
||||||
PLT |
≤ 2% |
||||||
Background |
Parameter |
Background |
|||||
WBC |
≤ 0.2×10^9/L |
||||||
RBC |
≤ 0.02×10^12/L |
||||||
HGB |
≤ 1 g/L |
||||||
HCT |
≤ 0.5% |
||||||
PLT |
≤ 10×10^9/L |
||||||
Precision |
Parameter |
CV |
Measurement range |
||||
WBC |
≤ 2.0% |
(4.0-15.0×10^9)/L |
|||||
RBC |
≤ 1.9% |
(3.5-6.0×10^12)/L |
|||||
HGB |
≤ 1.9% |
(110.0-180.0g)/L |
|||||
MCV |
≤ 0.4% |
(80.0-110.0)fL |
|||||
PLT |
≤ 4.0% |
(100.0-500.0×10^9)/L |
|||||
Linearity |
Parameter |
Measurement range |
CV |
||||
WBC |
(0-5.9×10^9)/L |
(±0.3×10^9)/L |
|||||
(6.0-99.9×10^9)/L |
±5% |
||||||
RBC |
(0-0.99×10^12)/L |
(±0.05×10^12)/L |
|||||
(1.0-9.99×10^12)/L |
±5% |
||||||
HGB |
(0-99.0g)/L |
(±2.0g)/L |
|||||
(100.0-300.0g)/L |
±2% |
||||||
PLT |
(0-99×10^9)/L |
(±8.0×10^9)/L |
|||||
100-999×10^9)/L |
±10% |
||||||
Power supply |
AC 220±10%,60/50Hz, 110±10%,60Hz |
||||||
Package Size |
580*470*590mm (W*D*H) |
ReagentPackage Size |
450*410*310mm (W*D*H) |
||||
Gross Weight |
27kg |
ReagentGross Weight |
23kg |
||||
