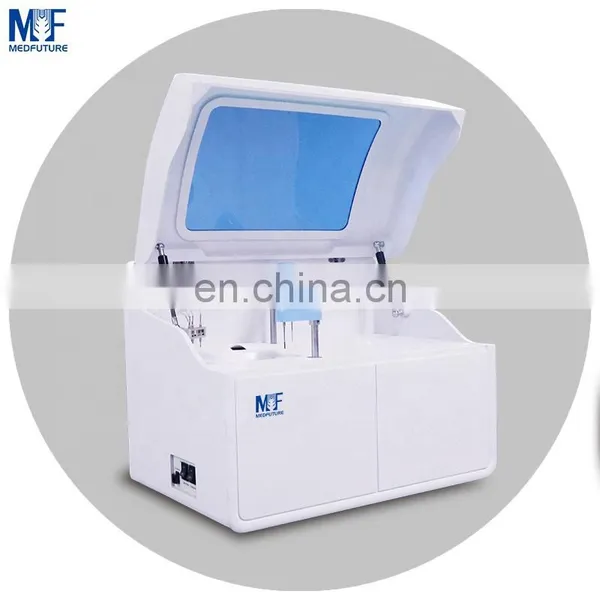

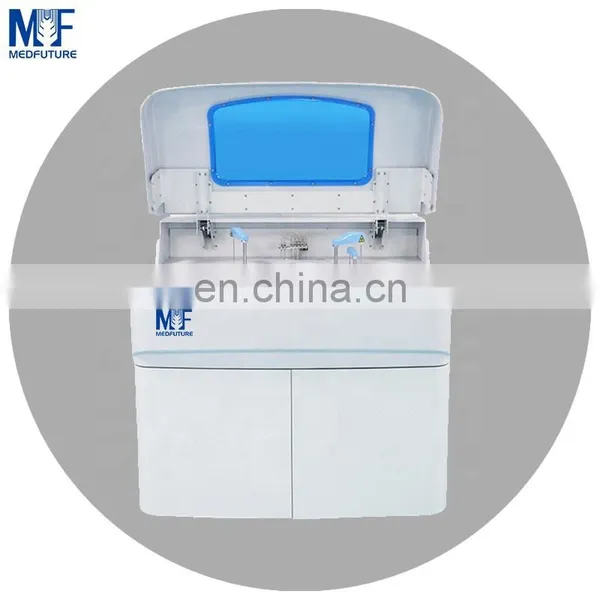

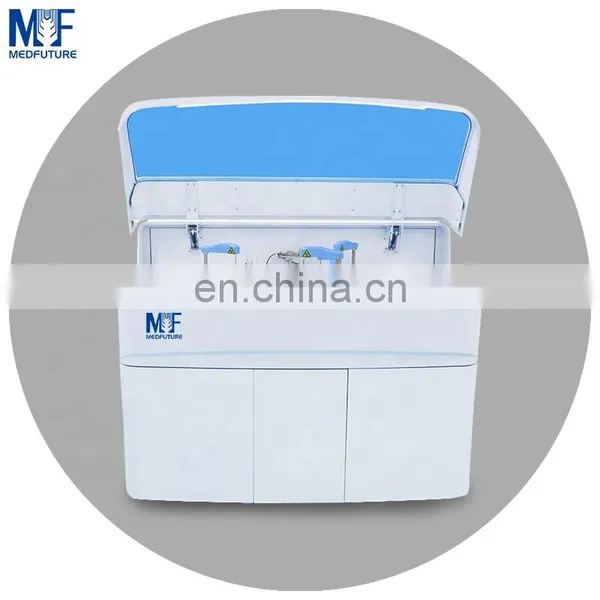

MedFuture Chemistry Analyzer Clinical Fully Automatic Blood Clinical Chemistry Analyzer Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Government ministry/Bureau/Commission
Year Established:
2012
Annual Export Value:
Above US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
MedFuture MF-5000 Auto Hematology Analyzer Animal Blood Testing Equipment PriceNegotiableMOQ: 1 -
MedFuture Auto Hematology Analyzer Blood Testing Equipments Clinical Hematology AnalyzerNegotiableMOQ: 1
-
MedFuture 5-Part Auto Hematology Analyzer Blood Medical Lab Analyzer PriceNegotiableMOQ: 1
-
MedFuture 5-Part Hematology Analyzer Reagent Clinical Blood Testing Analyzer PriceNegotiableMOQ: 1
-
MedFuture Fully Automated Blood Clinical Test Automatic Elisa Processor Elisa Test Equipment Elisa Microplate ReaderNegotiableMOQ: 1
Product Description
Features:
①.49 Sample positions. ② .56 Reagent positions. ③ .120 Reaction cuvettes. ④ .200 tests per hour. ⑤ .Probe with anti-collision function, liquid level dectection function.
Reagent Cooling |
Refrigerated tray with independent switch |
Sample Volume |
2~70μL |
Reagent Volume |
20~350μL |
Cuvettes |
120 reusable cuvettes, optical length 6mm |
Mixer Probe |
Independent stirring |
Washing |
Automatic cuvettes washing |
Humidity |
30 〜80% |
Light Source |
12V/30W halogen lamp |
Product details:

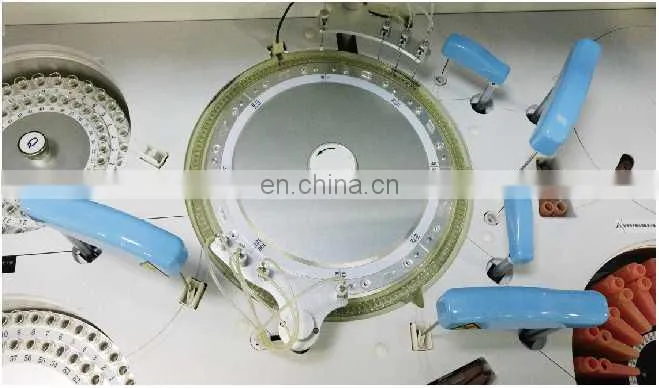

01 Reaction Module Long lifetime halogen lamp, stable light source. 340, 405, 450, 510, 546, 578, 630, 700nm eight wavelength
filters. 37°C stable incubation system.
filters. 37°C stable incubation system.

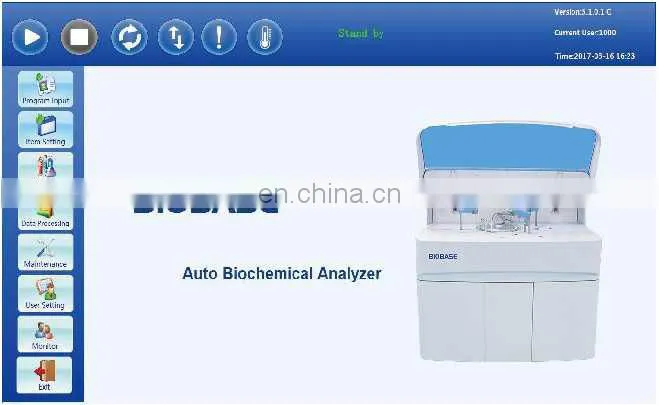

02 Functional SoftwareSample information batch and combination input quickly and easily. 24 hours working, with STAT function.
Special designed software surface for engineer to monitor whole instrument status clearly. LIS system available.
Special designed software surface for engineer to monitor whole instrument status clearly. LIS system available.

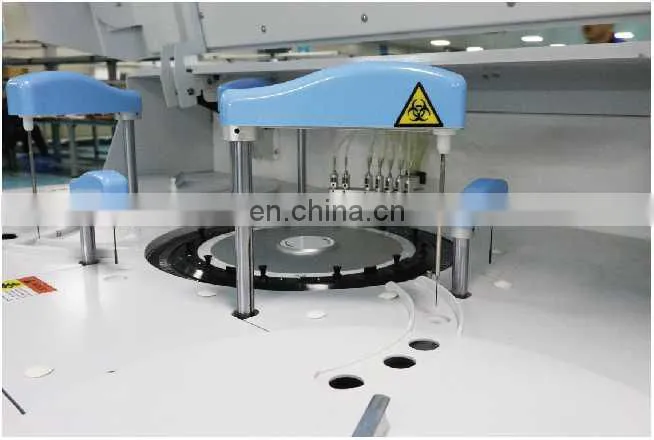

03 Accurate Sample & Reagent Adding System Accurate sampling pump, sample adding 0.1pl stepping, reagent adding 1pl stepping.Sample & reagent probes with liquid level sensor and anti-collision functions.

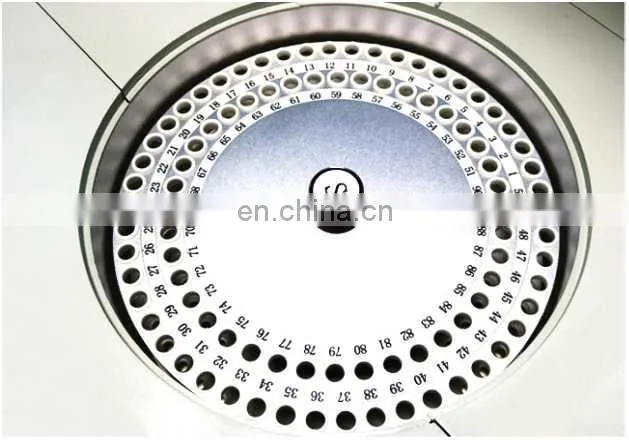

04Sample and Reagent Tray
Reagent tray with 24 hours cooling system Reagent volume real-time detection, with remaining volume display online.
Direction for use:
Reaction Tray
37±0.1°C, real-time monitor.
Mixer Probe
Teflon coating to avoid cross contamination.
Reagent Tray
2~8°C cooling for 24 hours.
Sample Needle
Liquid level sensor function. Anti-collision function.Reagent volume real-time detection.
Software
User-friendly software.
Washing Probe
Independent 4-step washing system.
Size Information
Size Chart of This Design
Light Source |
12V/30W halogen lamp |
Spectrophotometry |
Post-spectral spectrophotometry |
Wavelength |
340, 405, 450, 510, 546, 578, 630, 700nm |
Absorbance |
0〜3.0Abs |
Calibration |
Linear: K factor, 1-point, 2-point and multipoint linear Non-Linear: Spline, Polygon, Index, Ogarithm, Logit-4P, Logit-5P |
Quality Control |
Real-time QC, Westgard multi rule, Cumulative sum check, Twin Plot(2D) |
Software |
Windows 7/8/10, 32 or 64 bit |
LIS System |
Bi-direction, support HL7 protocol |
Interface |
LAN port access |
Printer |
External, multiple reporting mode available |
Power Supply |
AC220V±10% 50/60HZ, 110V±10% 60Hz, 300W |
Temperature |
10~30°C |
Water Consumption |
Deionized water: 5L/H |
Humidity |
30-80% |
External Size (W*D*H) |
950*612*510mm |
Net Weight |
75kg |
Package Size (W*D*H) |
1118*728*1151 mm |
Gross Weight |
130kg |
Related Products

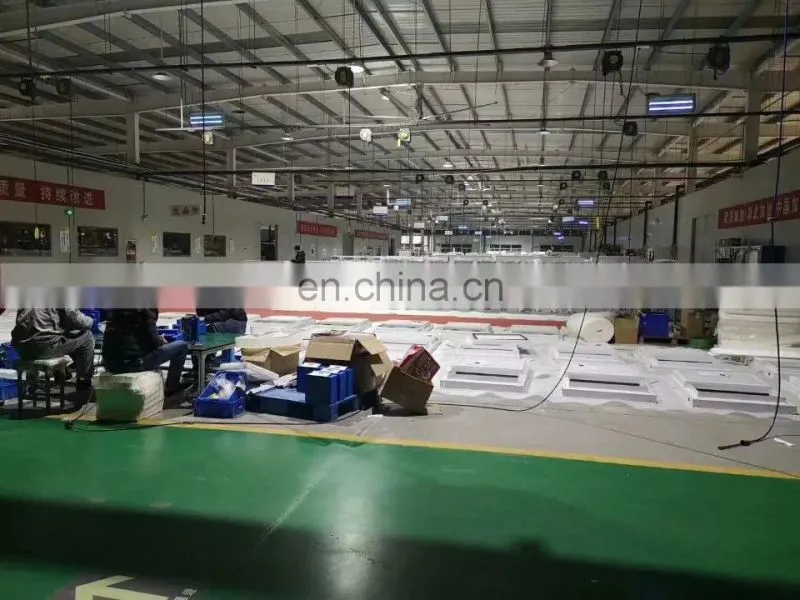

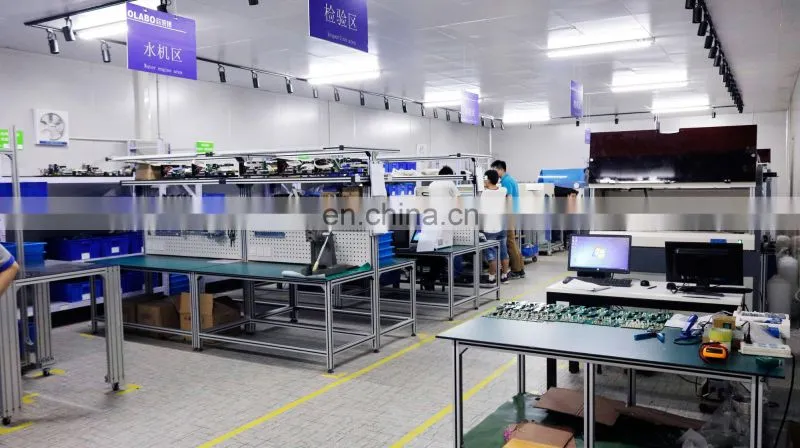

Company Introduction
