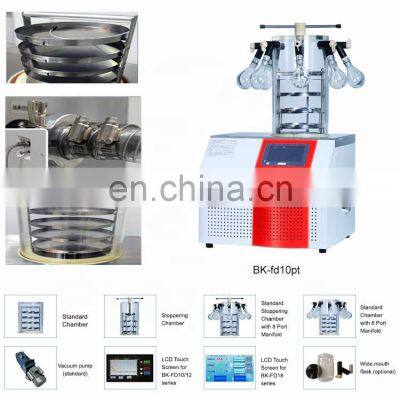

BIOBASE Table Top Freeze Dryer BK-FD10PT Freeze Dryer Price Pharmaceutical Grade for Laboratory or Hospital
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Government ministry/Bureau/Commission
Year Established:
2012
Annual Export Value:
Above US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Biobase China Laboratory Freezer -60 Freezer Ultra Low Temperature Chest Freezer BDF-60H118A for Laboratory Factory PriceNegotiableMOQ: 1 -
BIOBASE China Laboratory -60 Degree Freezer Commercial Chest Freezer Stainless Steel BDF-60H218 for Lab Factory PriceNegotiableMOQ: 1
-
BIOBASE China Laboratory -60 Degree Freezer Tuna Freezer With LED Display BDF-60H318 for Laboratory or Hospital Factory PriceNegotiableMOQ: 1
-
Biobase China Lab 458L Laboratory Refrigerator -60 Degre Medical Refrigerator BDF-60H458 for Laboratory Factory PriceNegotiableMOQ: 1
-
BIOBASE Lab -40 Degree Freezer BDF-40V90 Sprayed Steel Plate Direct Refrigeration 90L -40 Degree Freezer for Laboratory FactoryNegotiableMOQ: 1
Product Description
Application：
The lab series freeze dryer is suitable for freeze drying test of laboratory biomedical samples. Widely used in drugs, biological products, chemical and food industries. On the heat-sensitive substances such as antibiotics, vaccines, blood products, hormones and other biological tissue enzymes, freeze-drying technology is applied.

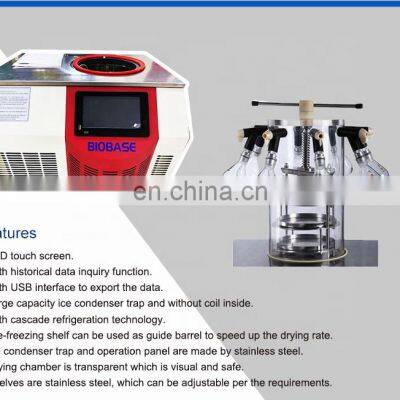

Feature：
1.LCD touch screen.
2. With historical data inquiry function.
3. With USB interface to export the data.
4. Large capacity ice condenser trap and without coil inside.
5. With cascade refrigeration technology.
6. Pre-freezing shelf can be used as guide barrel to speed up the drying rate.
7. Ice condenser trap and operation panel are made by stainless steel.
8. Drying chamber is transparent which is visual and safe.
9. Shelves are stainless steel, which can be adjustable per the requirements.
2. With historical data inquiry function.
3. With USB interface to export the data.
4. Large capacity ice condenser trap and without coil inside.
5. With cascade refrigeration technology.
6. Pre-freezing shelf can be used as guide barrel to speed up the drying rate.
7. Ice condenser trap and operation panel are made by stainless steel.
8. Drying chamber is transparent which is visual and safe.
9. Shelves are stainless steel, which can be adjustable per the requirements.
Specification
Model |
BK-FD10S |
BK-FD10P |
BK-FD10T |
BK-FD10PT |
|||||
Type |
Standard chamber |
Standard chamber with 8 port manifold |
Stoppering chamber |
Stoppering chamber with 8 port manifold |
|||||
Freeze Drying Area |
0.12 m2 |
0.09 m2 |
|||||||
Tray |
4 pcs |
3 pcs |
|||||||
Height Between Trays |
50mm |
68mm |
|||||||
Cold Trap Temperature |
≤-60℃ |
||||||||
Cold Trap Capacity |
9.5L |
||||||||
Cold Trap Size (Diameter*H) |
Φ215*260mm |
||||||||
Vacuum Degree |
<10 Pa |
||||||||
Water Capture Capacity |
3kg/24h |
||||||||
Tray Size (D*H) |
Φ200*20mm |
Φ180*20mm |
|||||||
Freeze Drying Time |
24h |
||||||||
Loading Capacity/Shelf (Liquid) |
0.3L |
||||||||
Total Loading Capacity (Liquid) |
1.2L |
0.9L |
|||||||
Drying Chamber Size (Diameter*H) |
Φ260*310mm |
Φ260*450mm |
|||||||
Total Qty. Of Vial Φ22 |
260 |
195 |
|||||||
Total Qty. Of Vial Φ16 |
480 |
360 |
|||||||
Total Qty. Of Vial Φ12 |
920 |
690 |
|||||||
Refrigerant |
R600a+R290+R23 |
||||||||
Cooling System |
Air cooling |
||||||||
Power Supply |
220V/50Hz,60Hz (single phase) 110V/60Hz (single phase) |
||||||||
Power Consumption |
1.3KW |
||||||||
Power Supply |
AC220V, 50/60Hz (single phase); 110V, 60Hz (single phase) |
||||||||
Standard Accessory |
Vacuum pump 2L/S, 8m3/h (for all models) Conical-mouth flask 500ml*8 pcs (only for model BK-FD10P/PT) |
||||||||
Optional Function & Accessory |
Conical-mouth flask and wide-mouth flask(for BK-FD10P/PT) Import vacuum pump |
||||||||
External Size (W*D*H) |
640*610*550/810mm |
640*610*550/950mm |
640*610*550/990mm |
||||||
Package Size(W*D*H)mm/ Gross Weight |
Main Body |
720*705*730(85kg) |
|||||||
Drying Chamber /Vacuum Pump |
705*590*530 (50kg) |
705*590*530 (55kg) |
705*590*530 (60kg) |
720*705*730 (65kg) |
|||||
