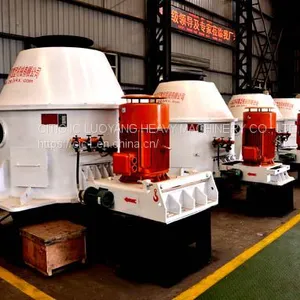

The vertical centrifuge machine is made up of the screen which diameter range from 700 to 1,000 mm , the rotor body (including the blade), transmission, body, lubrication system, etc.
Application of Vertical Centrifuge Machine
The vertical centrifuge is fit for material dehydration, generally used for coal, salt and other materials. Our coal centrifuge has helped a lot of customers with their industrial projects.
Working Principle of Vertical Centrifuge Machine
Wet materials are feed into the mouth of centrifuge, then are accelerated by the rotated distribution cone and move rapidly towards the space between screen and rotor. With the centrifugal force, the smaller particles of material get closed to the screen surface, liquid and part of the particle size of less than 0.5 mm of material get across the material space and screen gap, then are thrown out of the screen, the larger particles of materials soon slipped into spiral nesting mouth along the screw blade with the action of gravity and centrifugal force fine material attached to the screen surface are discharged by the scraper centrifuge through blade action, while the liquid through the screen and fine materials are thrown into the water tank then outflow through the drain, so as to achieve a solid-liquid separation.
Technical Performance Parameters of Vertical Centrifuge Machine
Serial No. |
Part Name |
Unit. |
Numerical Value |
|
1 |
Feed size |
mm |
0～25 |
|
2 |
The screen cloth works area |
m2 |
1.88 |
|
3 |
Handling capacity per hour |
t/h |
140～200 |
|
4 |
The percentage of product water discharge |
% |
5～8 |
|
5 |
Strainer big end diameter |
mm |
1200 |
|
6 |
Strainer slit |
mm |
0.5 |
|
7 |
Main electrical machinery |
Model |
Y280S-4-V1 |
|
Power |
KW |
75 |
||
Rotating speed |
r/min |
1480 |
||
8 |
Lubricates the electrical machinery |
Model |
Y90L-4 |
|
Power |
KW |
1.5 |
||
rotating Speed |
r/min |
1400 |
||
9 |
External dimensions Long × wide × high |
mm |
3160×2460×2680 |
|
10 |
Gross weight |
kg |
9121 |
|
Installation and Testing of Vertical Centrifuge Machine
When the centrifuge is assembled completely in the manufactory, the test should be carried out in air operations. It should be sent out to the users in the form of machine after it is up to the requirements, the users can directly follow the steps to install the equipment when they get receipt of it.
1. Installation Step
1) Check whether the basis of surface is level, if it is uneven, adjust the leveling pad. Check the ground pin-hole size and pore size of the centre. Check whether the basis of elevation to meet the requirements.
2) Mount the shock absorber to the ground pin holes, install the nut first but not tightened until the machine is in the right place, then solid-tight.
3) Hoisting the machine in the place, tighten anchor bolts, tighten the upper pairs of nuts before the measurement with the caliper pad diameter, it is required that the diameter of compact size should be increased 2~3mm than the first fasten one.
2. Test Step
1) Checked before testing items
a. All bolts connections should be tighten.
b. There is no equipments which have effects on the machine operation.
c. Make sure the pulley can be moved with both hands so that the machine can be rotated flexibly with non-stuck and abnormal noise.
d. Make the belt hang right.
As one of the most professional heavy equipment dealers, CIC provides auto drilling and tapping machine, tapping drilling machine, dry ball mill and etc. Want to know more, contact us now.
