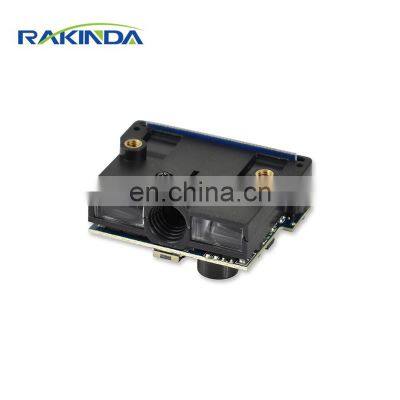

Product Introduction:

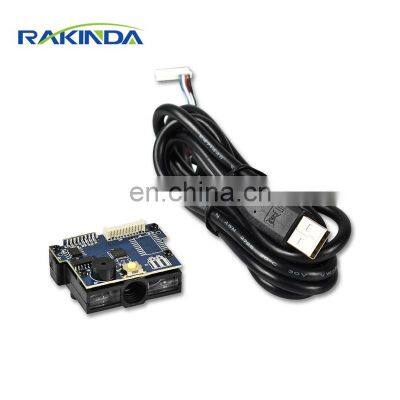

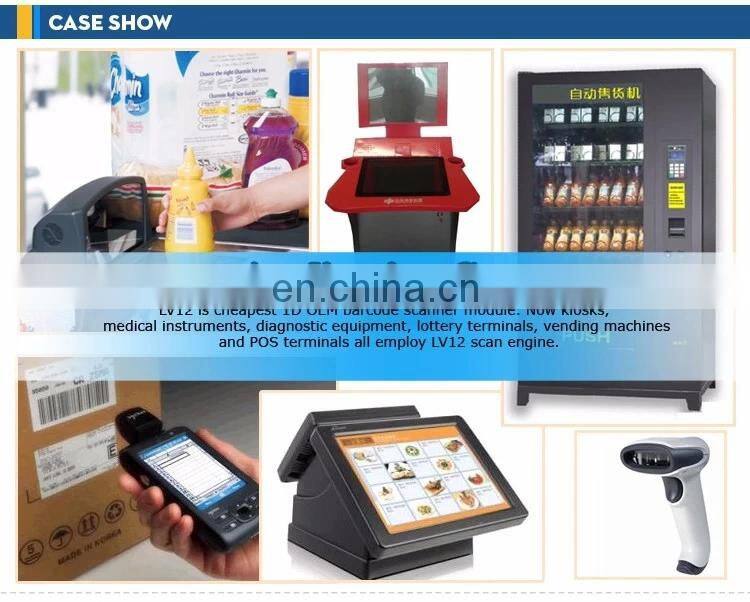

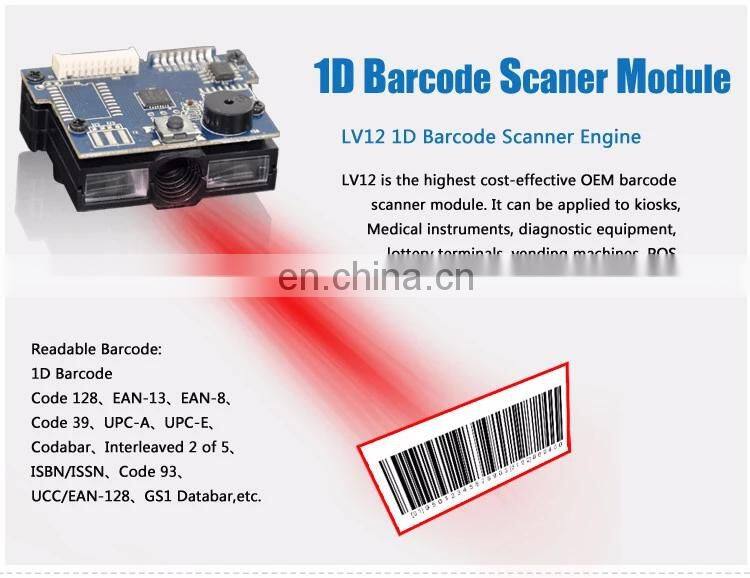

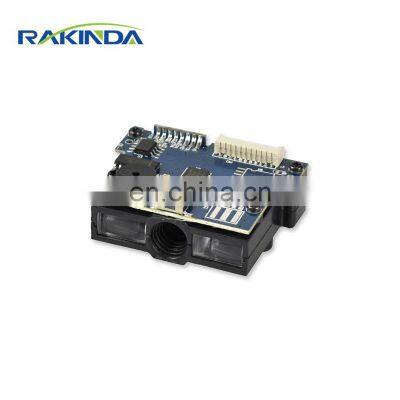

LV12 1D barcode scanner module brings the benefits of barcode scanning to all types of OEM devices. It is widely used in kiosks, medical instruments, diagnostic equipment, lottery terminals, vending machines and many other devices.
Product Features:

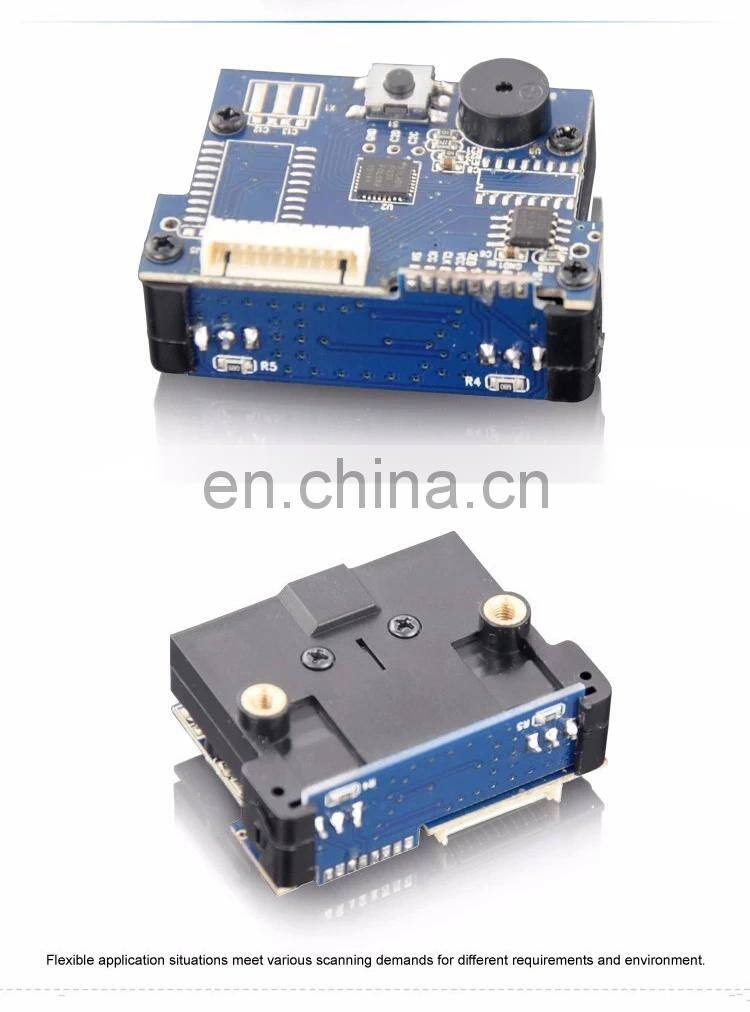

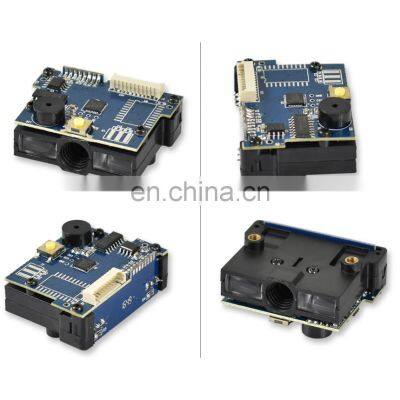

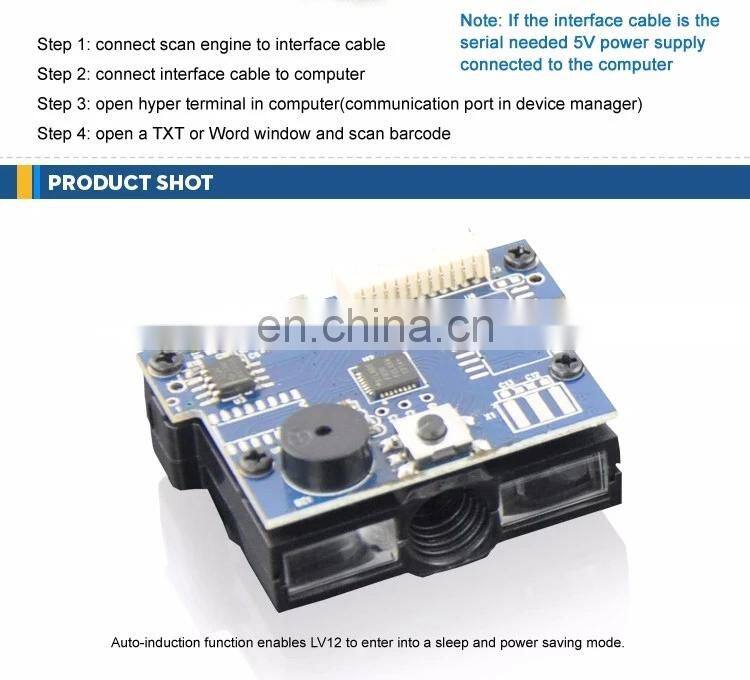

1) LV12 is a compact long range CCD barcode scanner module with high sensitive linear image sensor and built in auto sense function;
2) LV12 decode board is powered by a fast processor and to decode a wide array of 1D barcodes. The decode board is compatible with Utility, a PC based software for easy configuration.
3) LV12 is designed with the industrial standard size, mounting options and output to facilitate integration into existing applications.

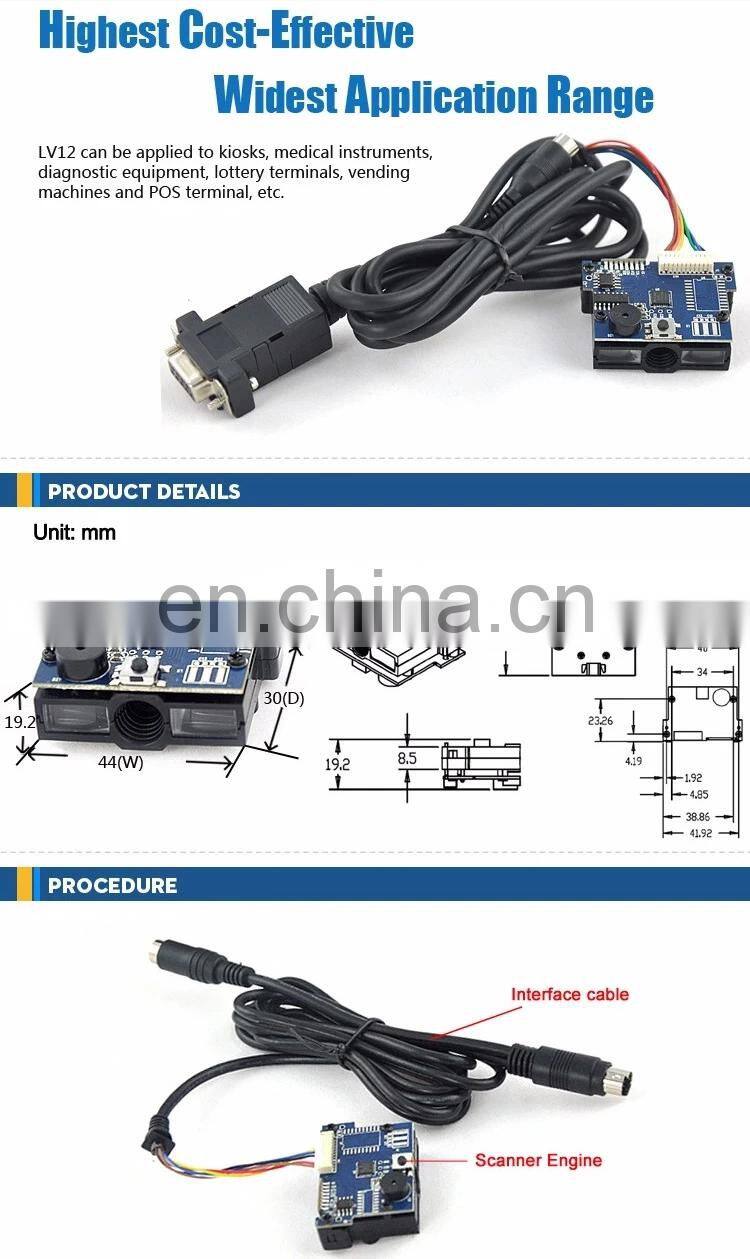

| Device Weight | <16g |
| Device Dimension | 32.2mm L * 44.15mm W * 20mm H |
| Cable Length | 1500mm(optional) |
| Interface | USB/TTL-RS232/RS232/PS2 |
| Connector | 11pin pitch 1.25 |
| Performance parameters | |
| Light source | 632nm visible red light |
| Image Sensor | Linear CCD Sensor |
| Processor | ARM32-bit |
| Depth of field | 3-70CM |
| Resolution | ≥3mil/0.1mm@PCS90% |
| Print Contrast | 30%PCS |
| Work Voltage | DC 3.3-5V |
| Electriccurrent | 110mA(work); 30mA(stand by) |
| Image Resolution | 2500dpi |
| Ambient illumination | 100,000Lux Max |
| Decode Capability | EAN-8, EAN-13, Codabar, CODE11, CODE 39, CODE 93, CODE128,China Post, GS1-128, GS1 Limited, GS1 Omnidirectional, UPC-A,, UPC-E, ISBN/ISSN, ISBT , Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, MSI,Plessey, ITF14. |
| Environmental parameters | |
| Operating Temperature | -20℃ to 50℃ |
| Storage Temperature | -40℃ to 70℃ |
| Relative humidity | 5% to 95%(Non-condensing) |
| Drop test | 1.2meter,100times |
| Shock resistance | 10H@125RPM |
Rakinda Technologies Co.,Ltd (The predecessor is Longview Tech Enterprise Co., Limited ) has been established since 2000, which has 6 branches in total, which are in Guangzhou, Shenzhen, Xiamen, Suzhou, Chengdu, Beijing and HongKong. "Rakinda" and "SCANMAX" are our two independent brands. Rakinda is also a leading worldwide Internet of Things solution provider, which is specialized in 1D/2D barcode identification technology (Embedded/Fixed Mount/Handheld/Desktop Barcode Scanner, Android PDA, Mobile POS, etc.) , radio frequency identification (UHF) technology and face recognition technology almost 20 years . We are oriented by customer demands , focus on development and innovation of intelligent systems and strive to provide most competitive IoT application solutions and services. Promoting people's lifestyle to be more intelligent is our infinite pursuit.
Q: Can I get some samples? Are they free?
A: We support 1pc sample order. Samples should be paid.
Q: Can I get extra cables for the scanners?
A: Yes you can. We will provide according to your request.
Q: How can I buy?
A: We are trade assurance supplier at Alibaba. You can start online order directly. Or pls contact us first according to the contact info. We will send you proper link directly.
Q: What is your payment method?
A: We accept online credit card, TT, Paypal, Western Union.
Q: Can I visit your factory:
A: Yes, you are warmly welcome.
Q: How long is your warranty time:
A: 1 Year.
Q: Where can we download the user manual of the scanners?
A: We will send by email after you get samples.
Q: What's the lead time?
A: For sample, it is typically within 3 days. For bulk order, it depends on quantity and model you order.
Q: Can you provide OEM service?
A: Yes. We need further discuss about details.
Q: How do you ship the scanners usually?
A: Since it is light and compact, we usually use DHL, UPS, Fedex, TNT and post air mail.
