Rakinda RD4600 Fixed Mount QR Code Scanner Module For Mobile Payment or Access Control

Rakinda RD4600 Fixed Mount QR Code Scanner Module For Mobile Payment or Access Control photo-1
Rakinda RD4600 Fixed Mount QR Code Scanner Module For Mobile Payment or Access Control photo-2
Rakinda RD4600 Fixed Mount QR Code Scanner Module For Mobile Payment or Access Control photo-3
Rakinda RD4600 Fixed Mount QR Code Scanner Module For Mobile Payment or Access Control photo-4
Rakinda RD4600 Fixed Mount QR Code Scanner Module For Mobile Payment or Access Control photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
1993
Annual Export Value:
US$1.5 Million - US$2.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Rakinda RD4600 Fixed Mount QR Code

Scanner Module For Mobile Payment or Access Control





Product Description

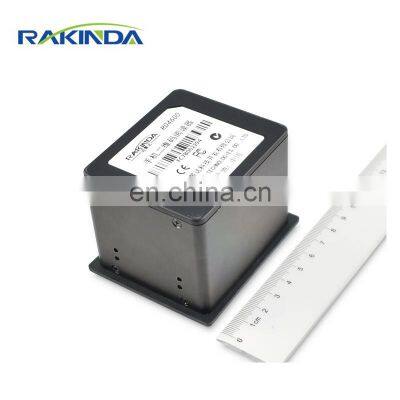

 Rakinda RD4600 Fixed Mount QR Code Scanner Module For Mobile Payment or Access Control

Main Features:

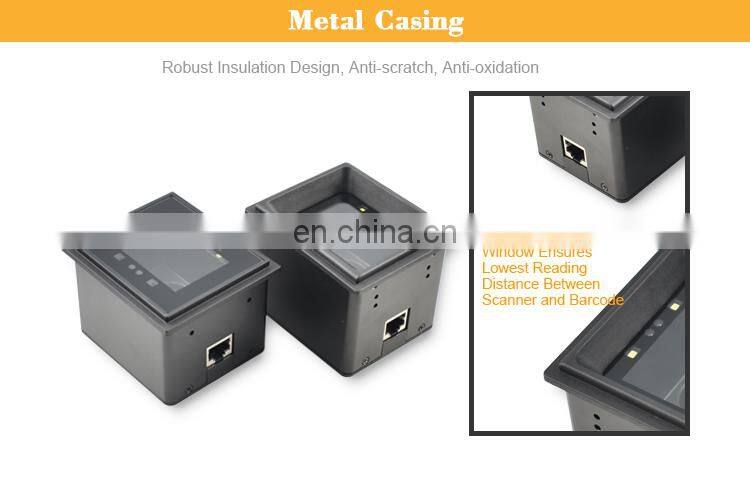

Metal Case design makes it durable

Automatic reading or command control

Big scan window, soft White LED illumination

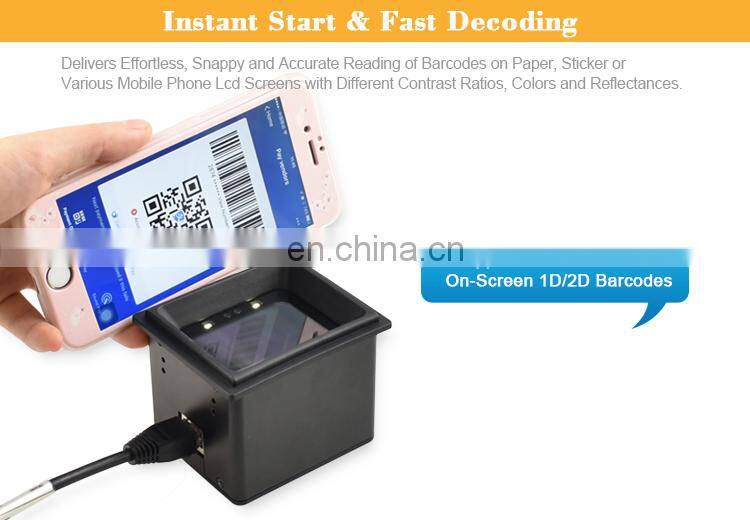

Fast Decoding for printed or mobile screen barcodes or QR code



Product Specification:

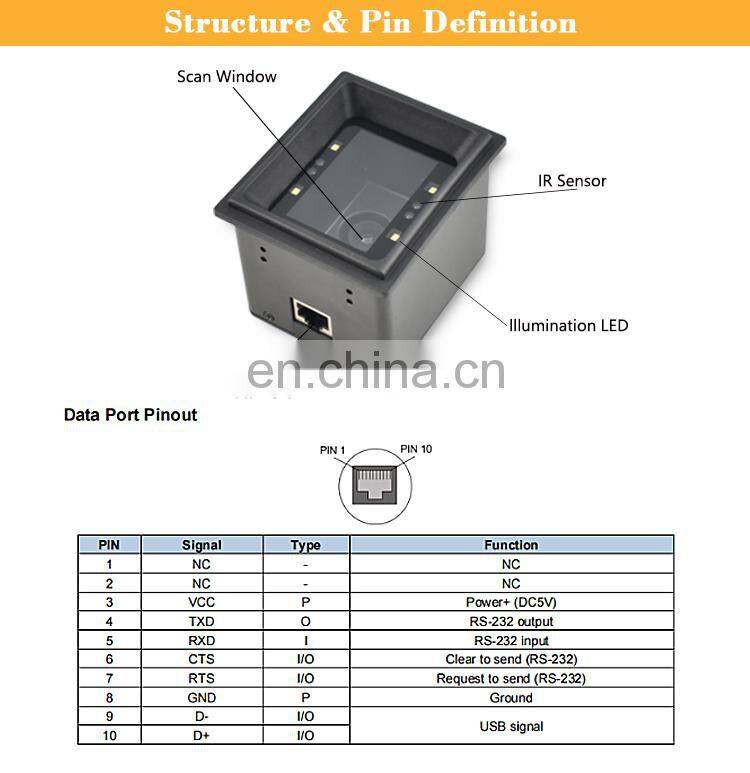

 Interface RS232/ USB
 Image Sensor  752 x 480CMOS
 Symbologies

2D: PDF417, Data Matrix, QR Code

1D: EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128, Code 93, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5,
Matrix 2 of 5, GS1 Databar (RSS-Expand, RSS-Limited, RSS-14), Code 39, Code 11, MSI-Plessey, Plessey

 Precision  5 mil
 Light Source White LED
 Scan Window 38.3mm*60.4mm
 Depth of Field* 40mm-430mm
 Print Contrast Signal   ≥ 30%
Illumination  0 ~ 100,000 LUX
Power Consumption 1.75W (max)
Power Adaptor Output: DC5V, 0.5A,  Input: AC100~240V, 50~60Hz
Weight  300g
Dimensions  78.2mm(L) X 67.2mm (W) X 62mm(H)
Certification FCC Part15 Class B, CE EMC Class B

 Rakinda RD4600 Fixed Mount QR Code Scanner Module For Mobile Payment or Access ControlRakinda RD4600 Fixed Mount QR Code Scanner Module For Mobile Payment or Access ControlRakinda RD4600 Fixed Mount QR Code Scanner Module For Mobile Payment or Access ControlRakinda RD4600 Fixed Mount QR Code Scanner Module For Mobile Payment or Access ControlRakinda RD4600 Fixed Mount QR Code Scanner Module For Mobile Payment or Access ControlRakinda RD4600 Fixed Mount QR Code Scanner Module For Mobile Payment or Access ControlRakinda RD4600 Fixed Mount QR Code Scanner Module For Mobile Payment or Access ControlRakinda RD4600 Fixed Mount QR Code Scanner Module For Mobile Payment or Access Control



Application Case:

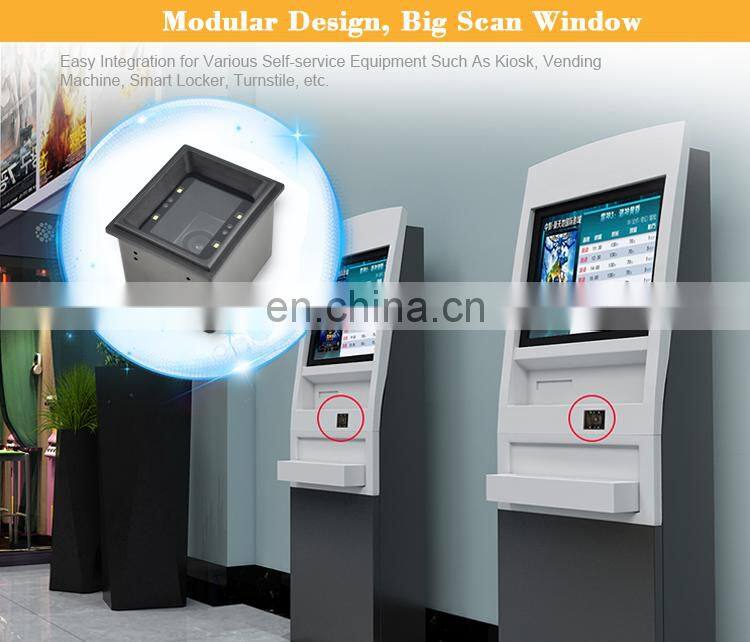

RD4600 fixed mount barcode scanner is designed primarily for such applications as electronic tickets/coupons, mobile marketing, mobile payment, kiosk, access control turnstile, and office automation, the series fixed mount barcode scanner is able to read barcodes on paper and mobile phones.

Compatible OS: Windows, Linux, Android, Arduino, Raspberry Pi. Plug and Play


Projects: Turnstile, Kiosk, ATM, Payment Terminal, Ticketing Validator, etc.
